#6496

TECHNICAL SPECIFICATIONS:
Maximum turning diameter: 2700 mm
Table plate diameter: 2500 mm
Maximum workpiece height: 1900 mm
Maximum workpiece weight capacity: 15000 kg

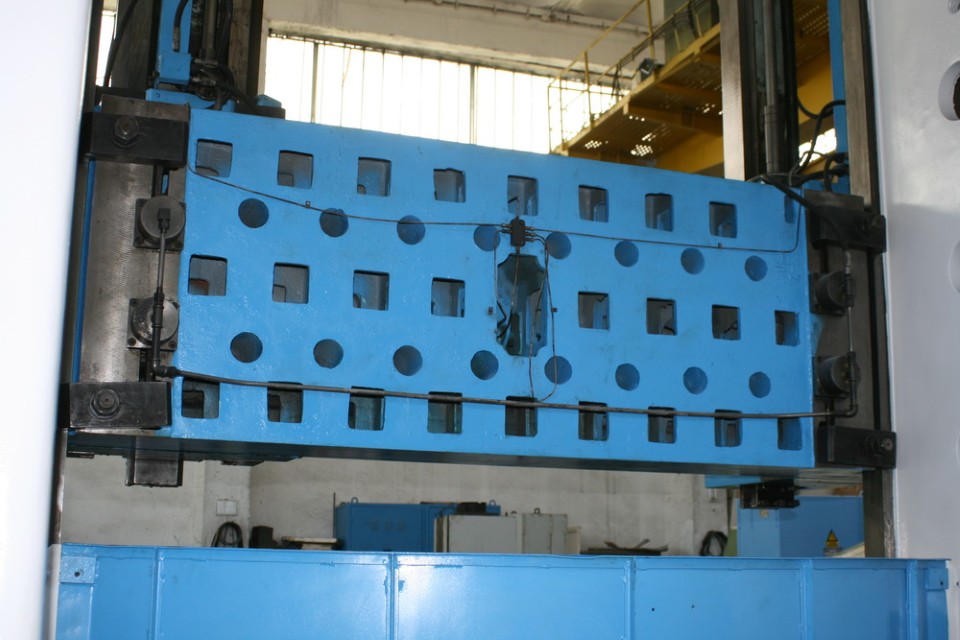

Vertical travel of cross rail: 1400 mm
RAM AND TOOL HEAD TRAVELS
Vertical stroke of left ram: 1200 mm
Vertical stroke of right ram: 1200 mm

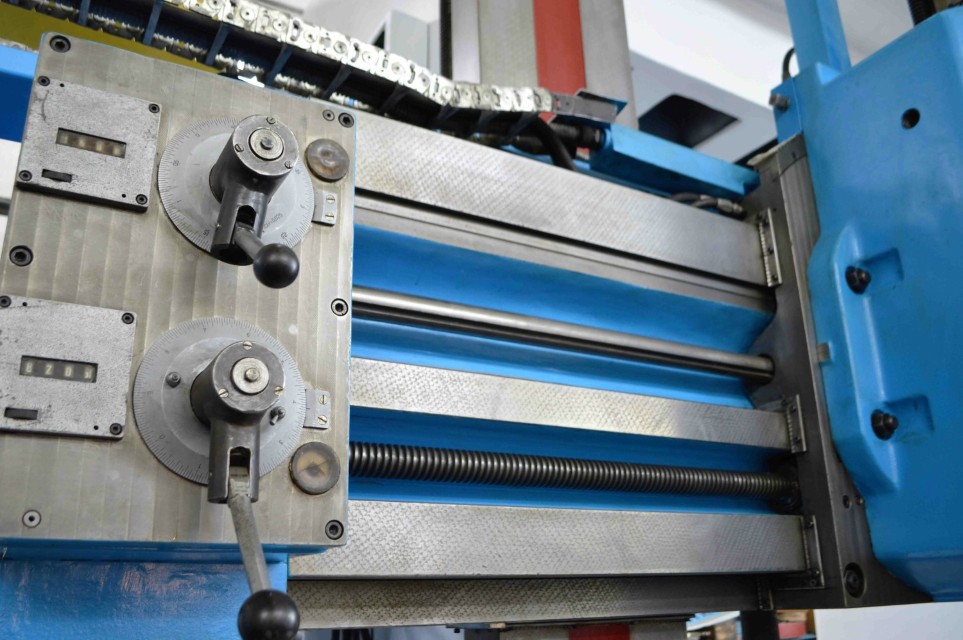

Horizontal travel of tool heads on cross rail: 1600 mm
Swivel angle of tool heads: -45 to +45 degrees
DRIVE SYSTEM AND SPEEDS
Main motor power: 60 kW
Table speed range: 1.24 rpm to 112 rpm
Number of table speed steps: 16 geometric stages
Feed rate range: 0.05 mm/rev to 10 mm/rev

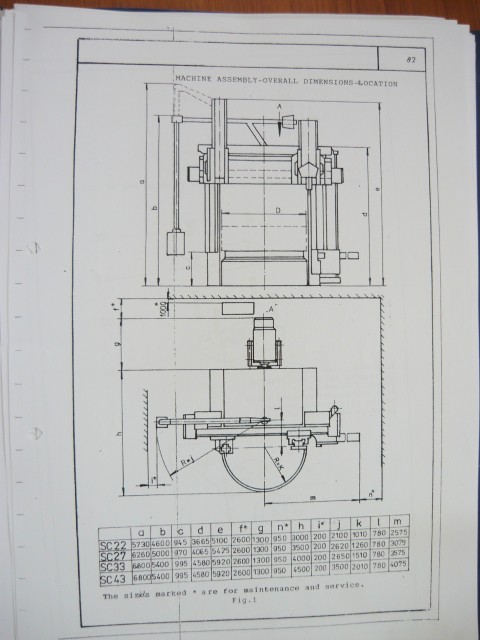

MACHINE DIMENSIONS AND WEIGHT
Total machine weight: 41000 kg
Overall width: 5600 mm
Overall depth: 5100 mm
Overall height above floor level: 5150 mm
