#06437

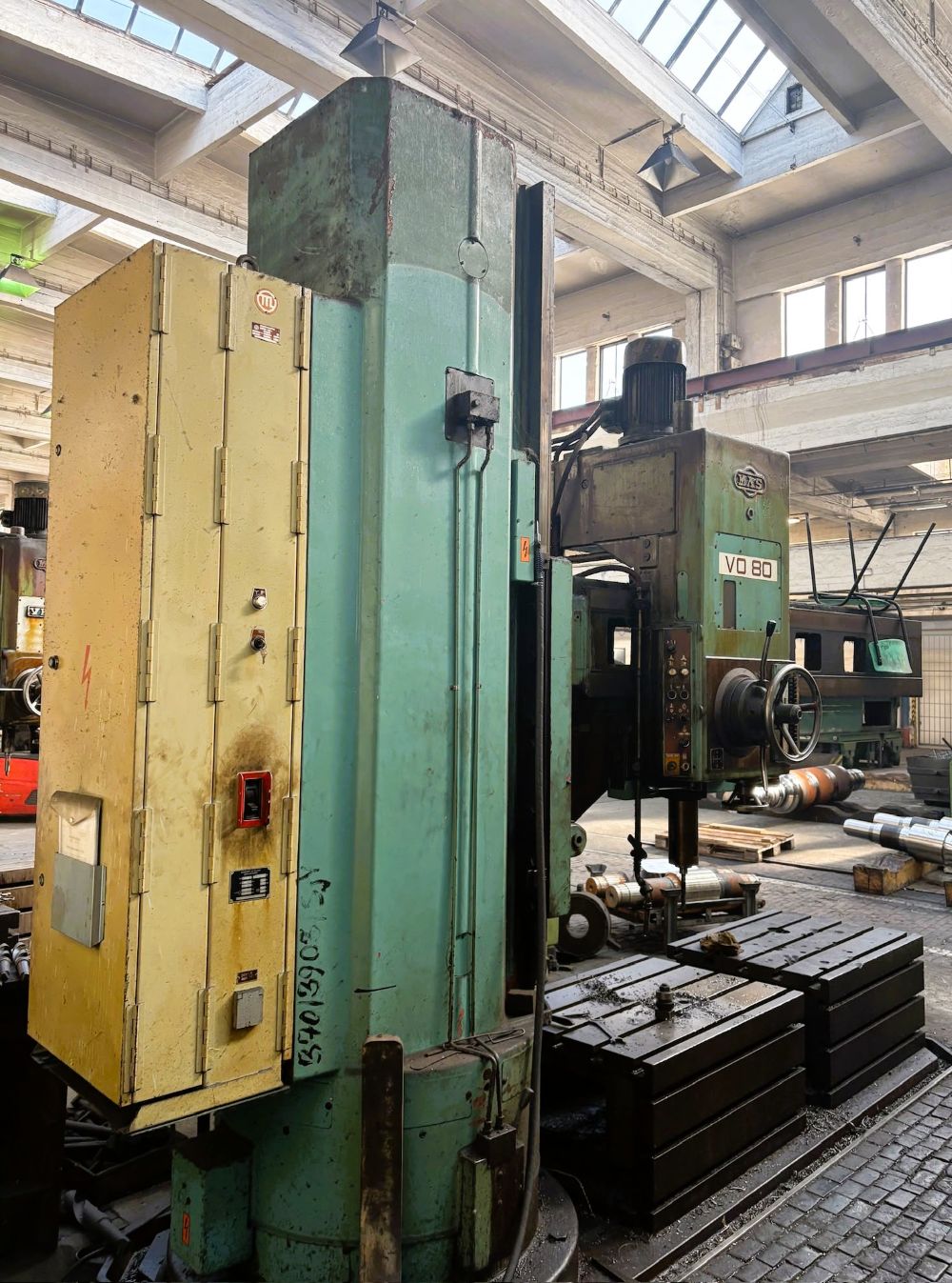

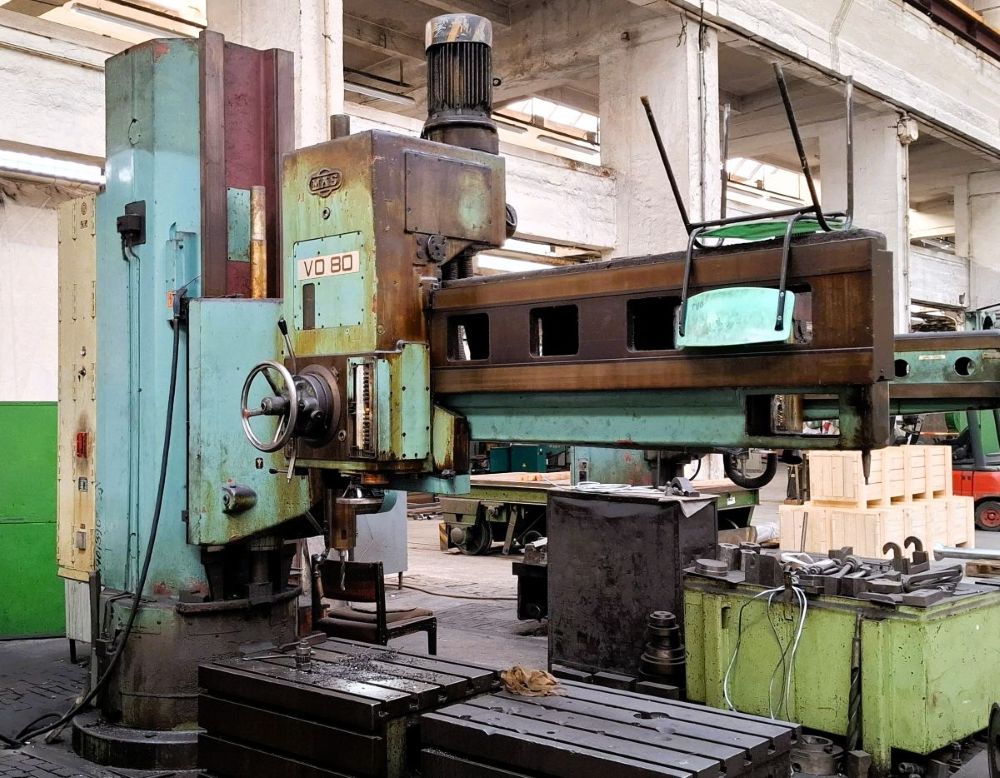

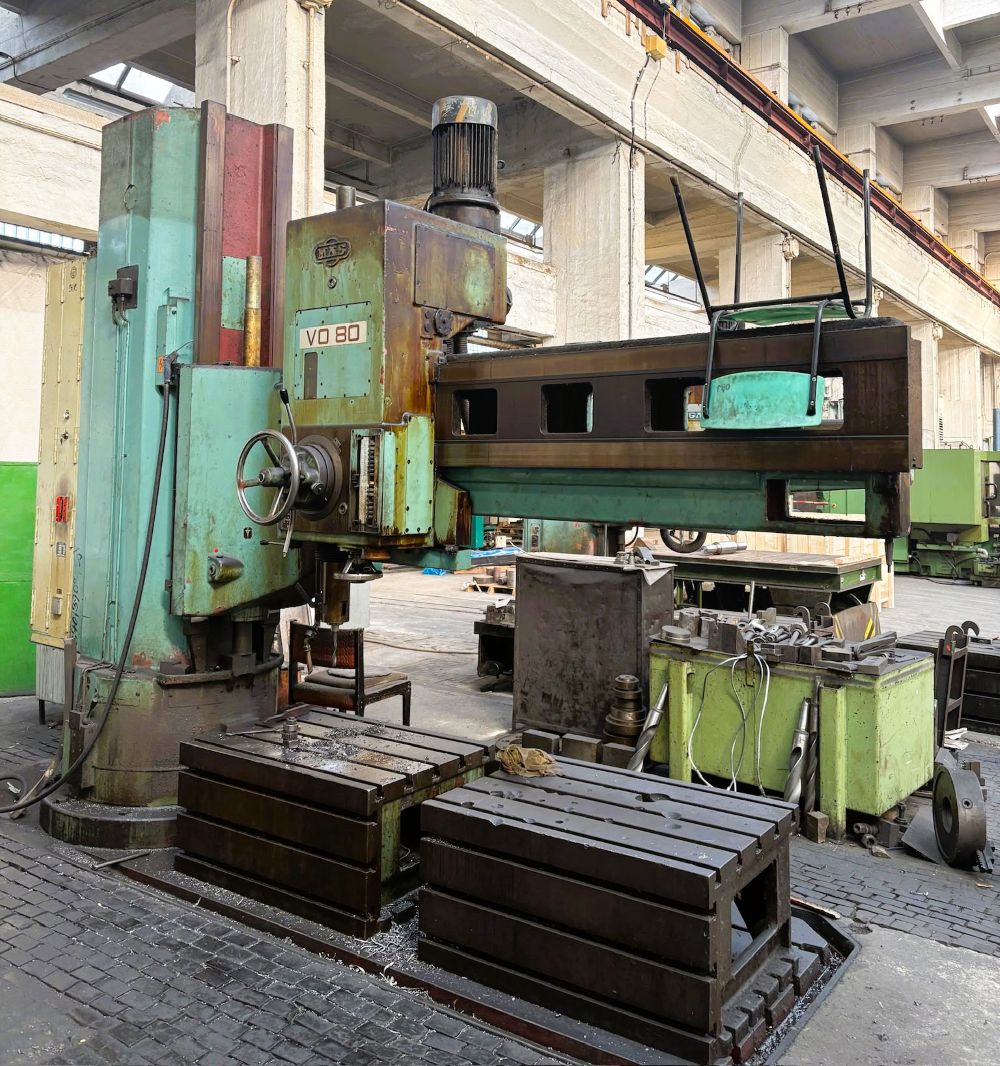

Drilling machine MAS VO 80
Technical specifications
Technical specs
Max. drilling dia. in steel: 80 mm
Max. boring diameter in steel with guide: 300 mm
Input: 13.5 kVA
Spindle taper: Morse 6
Spindle speeds: 30 speeds
Spindle speed range: 9 – 1800 rpm
Drill head travel along the arm: 2015 mm
Vertical adjust. of the arm on the column: 1250 mm
Maximum distance from spindle axis to the column sleeve guide: 2515 mm
Maximum height of the machine: 3600 mm
Total weight of the machine: approx. 12,100 kg
