#06519

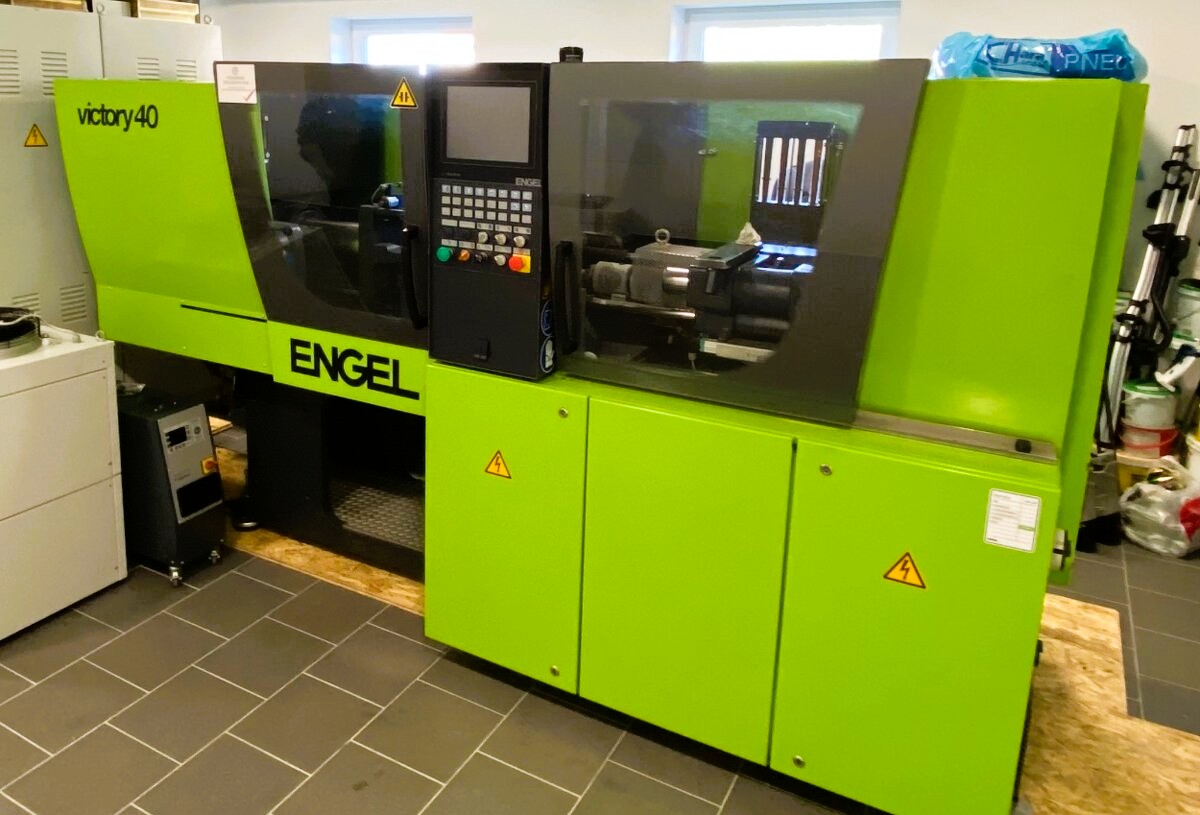

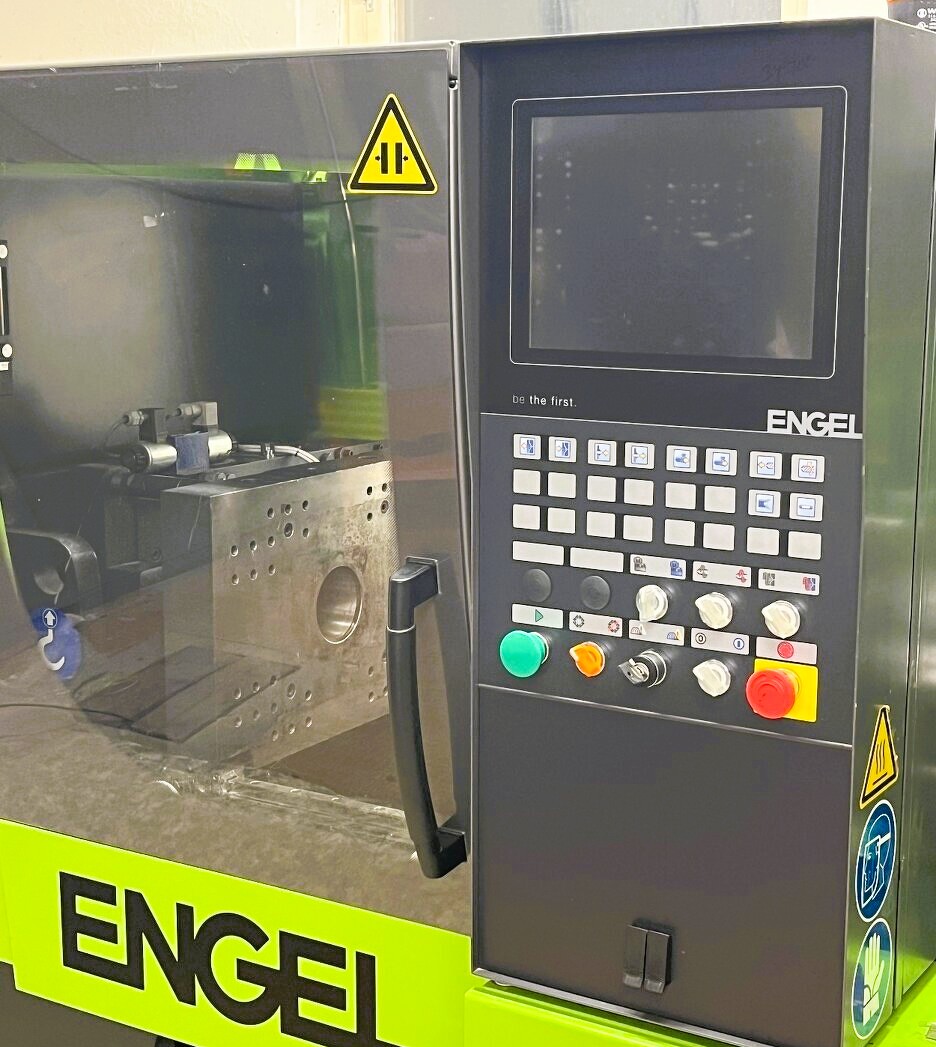

Tie-bar-less injection molding machine ENGEL VICTORY40
Year of manufacture: 2007 – hardly used!
Technical specifications
Technical specs
Clamping force: 400 kN (40 tons)
Opening force: 16 kN

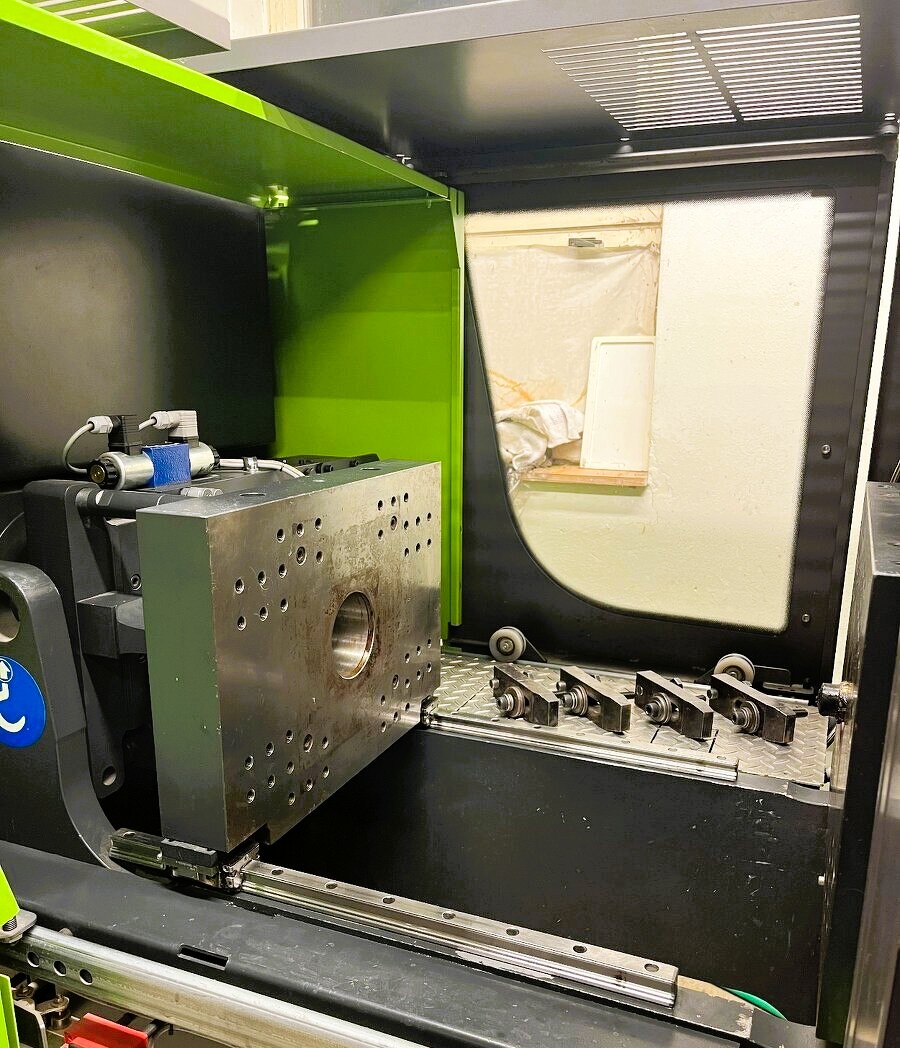

Mould fixing platen size (H x V): 500 x 450 mm
Distance between tie-bars: 0 mm (Tie-bar-less design)
Max. mould opening stroke: 400 mm
Min. mould height: 200 mm
Max. daylight between platens: 600 mm
Ejector stroke: 100 mm
Ejector force (forward / backward): 40 kN / 14 kN
Injection pressure: Up to 2,400 bar (depending on screw diameter)
Screw diameter: Typically 18 mm to 30 mm

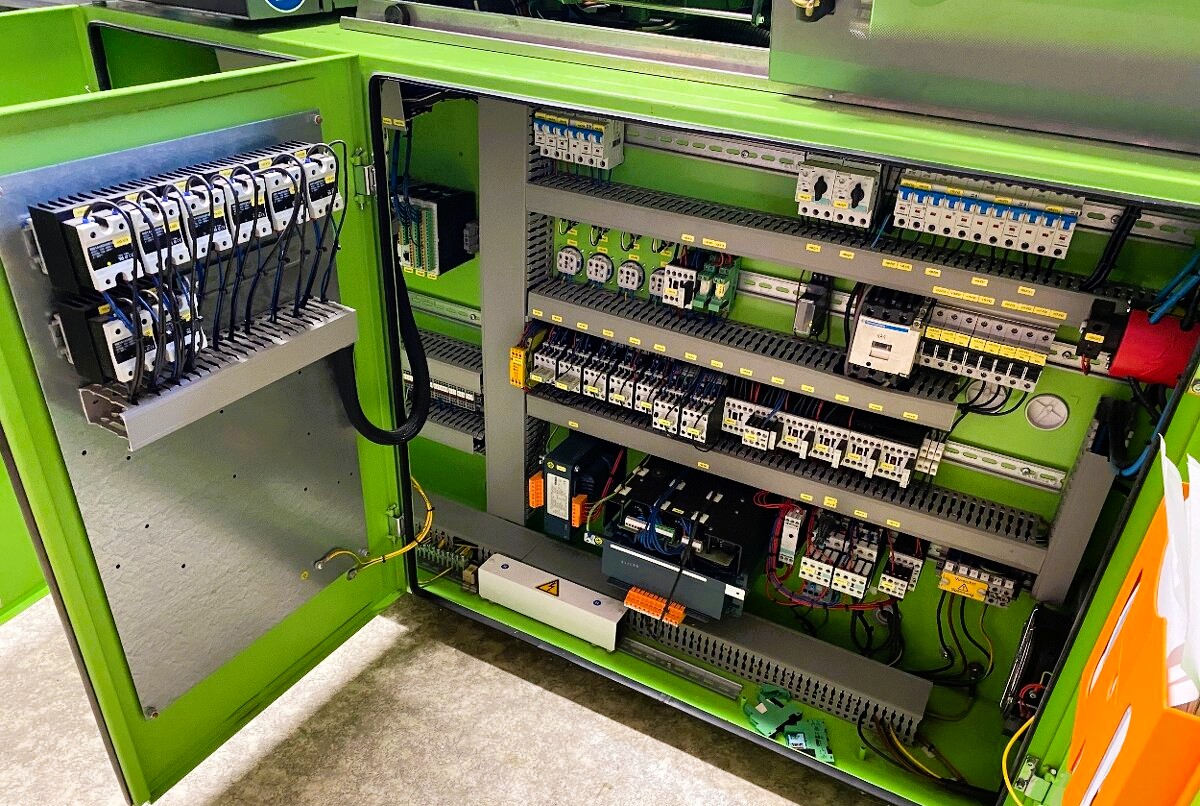

Control system: ENGEL CC 200
Main drive motor power: 7.5 kW to 11 kW
Barrel heating capacity: 5.3 kW to 6.8 kW
Number of heating zones: 4
Hydraulic oil capacity: Approx. 135 liters
Total machine weight: Approx. 2,700 kg to 3,100 kg
