#06488

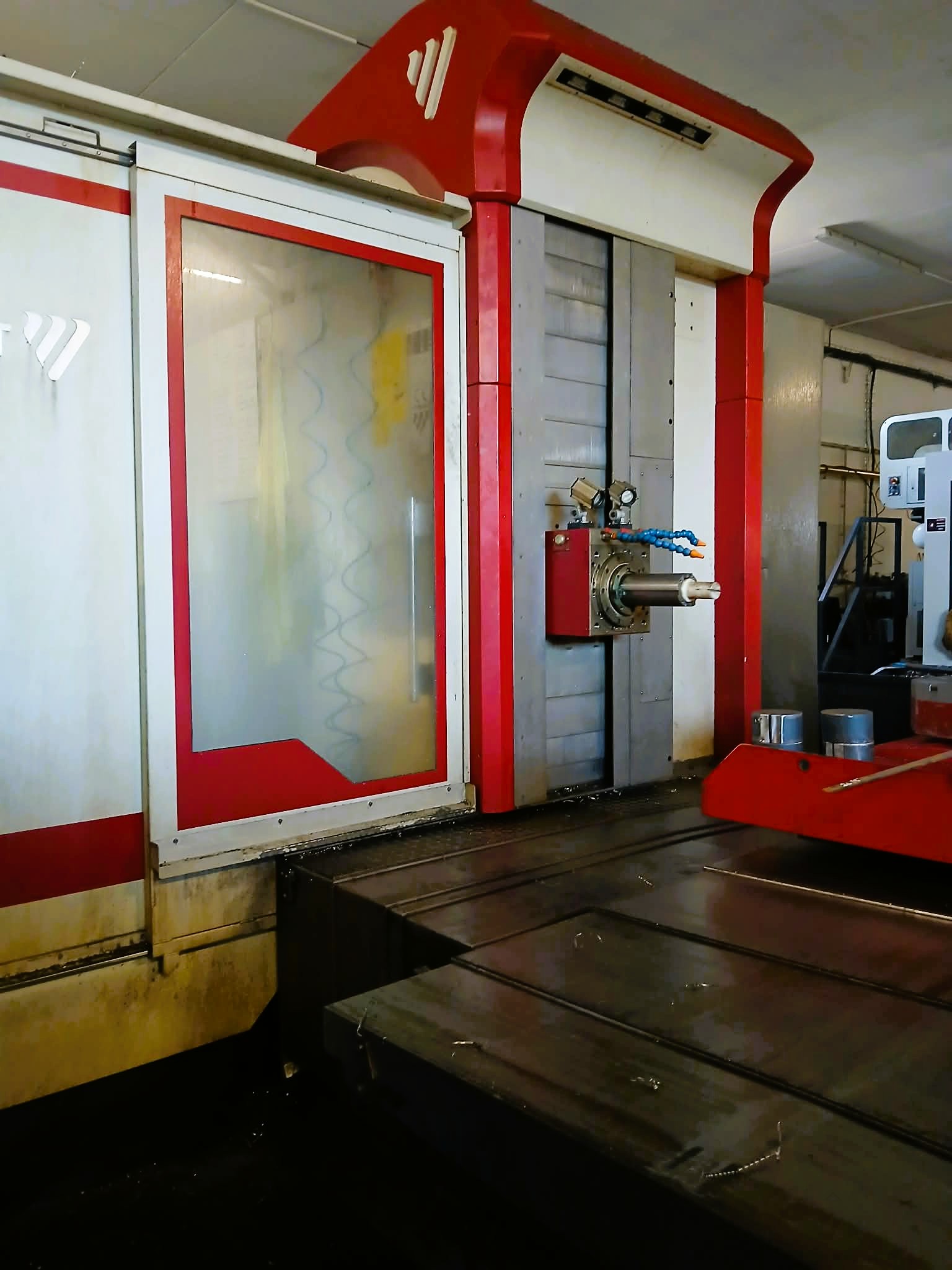

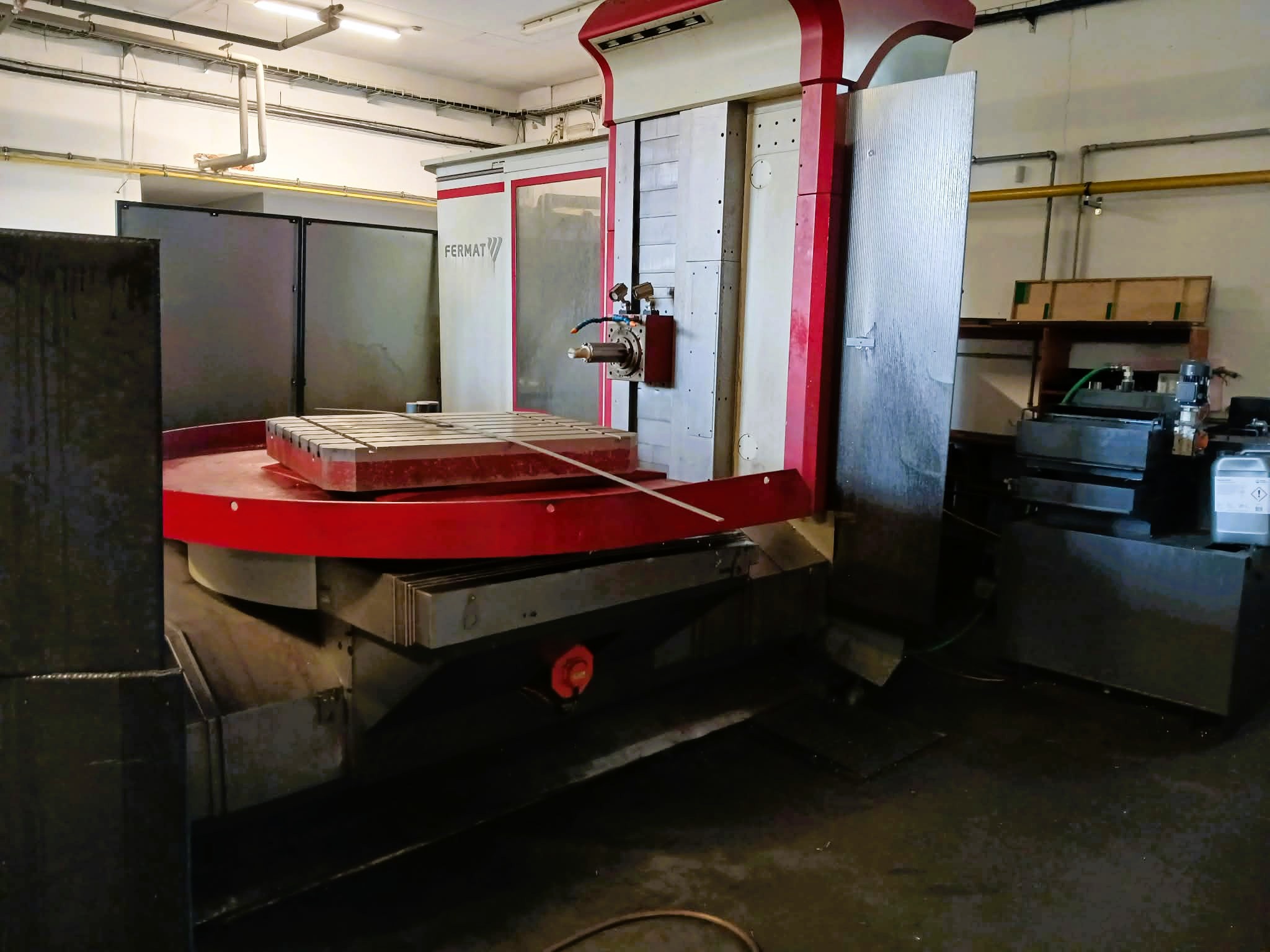

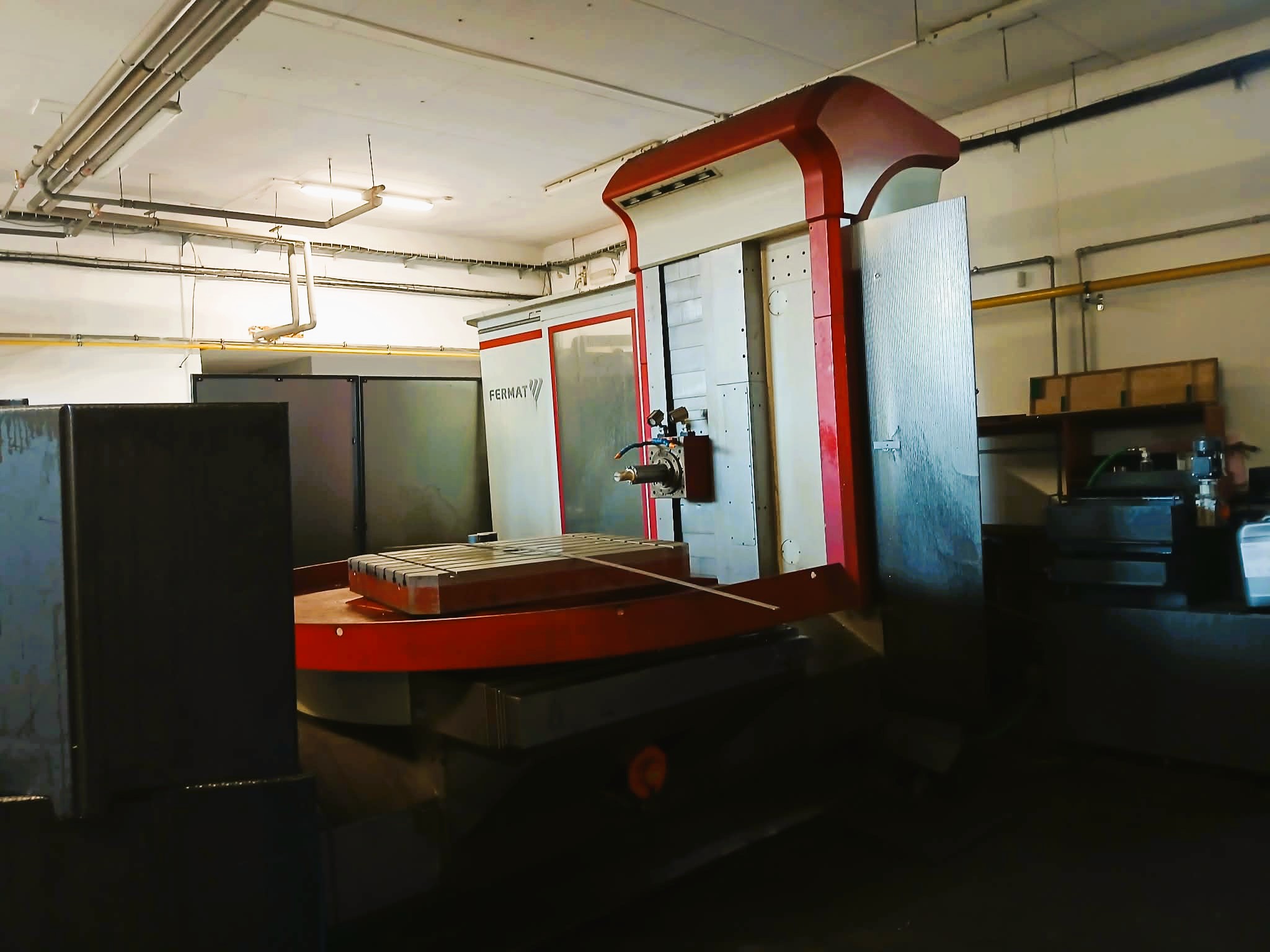

Horizontal Boring and Milling Machine FERMAT WFC 10 CNC
Year 2020 – 1100 working hours only

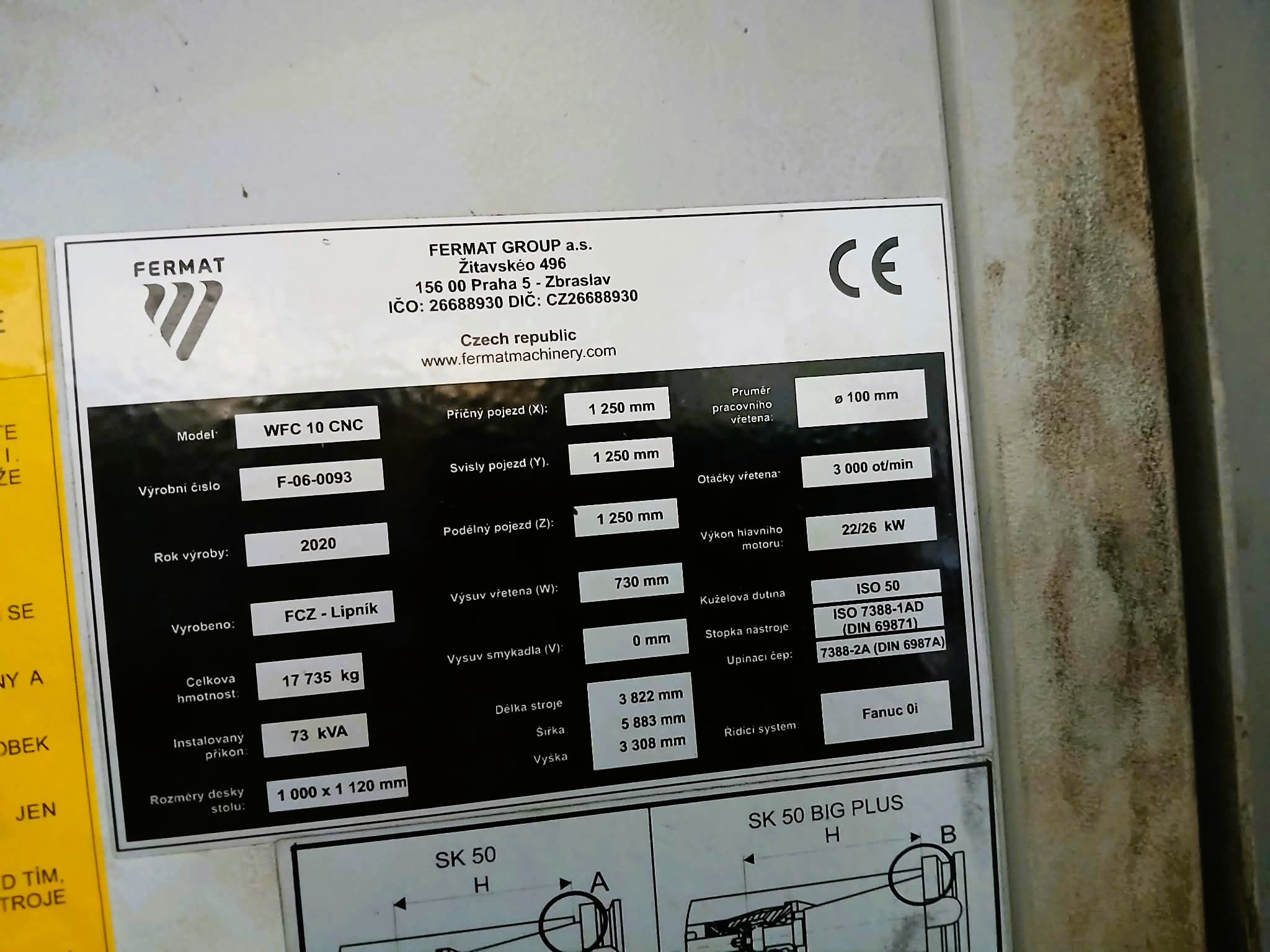

Technical specifications
Technical specs
Model: Horizontal Boring and Milling Machine FERMAT WFC 10 CNC
Year 2020
Working hours: 1100 only
Type: Table-Type Horizontal Boring and Milling Machine

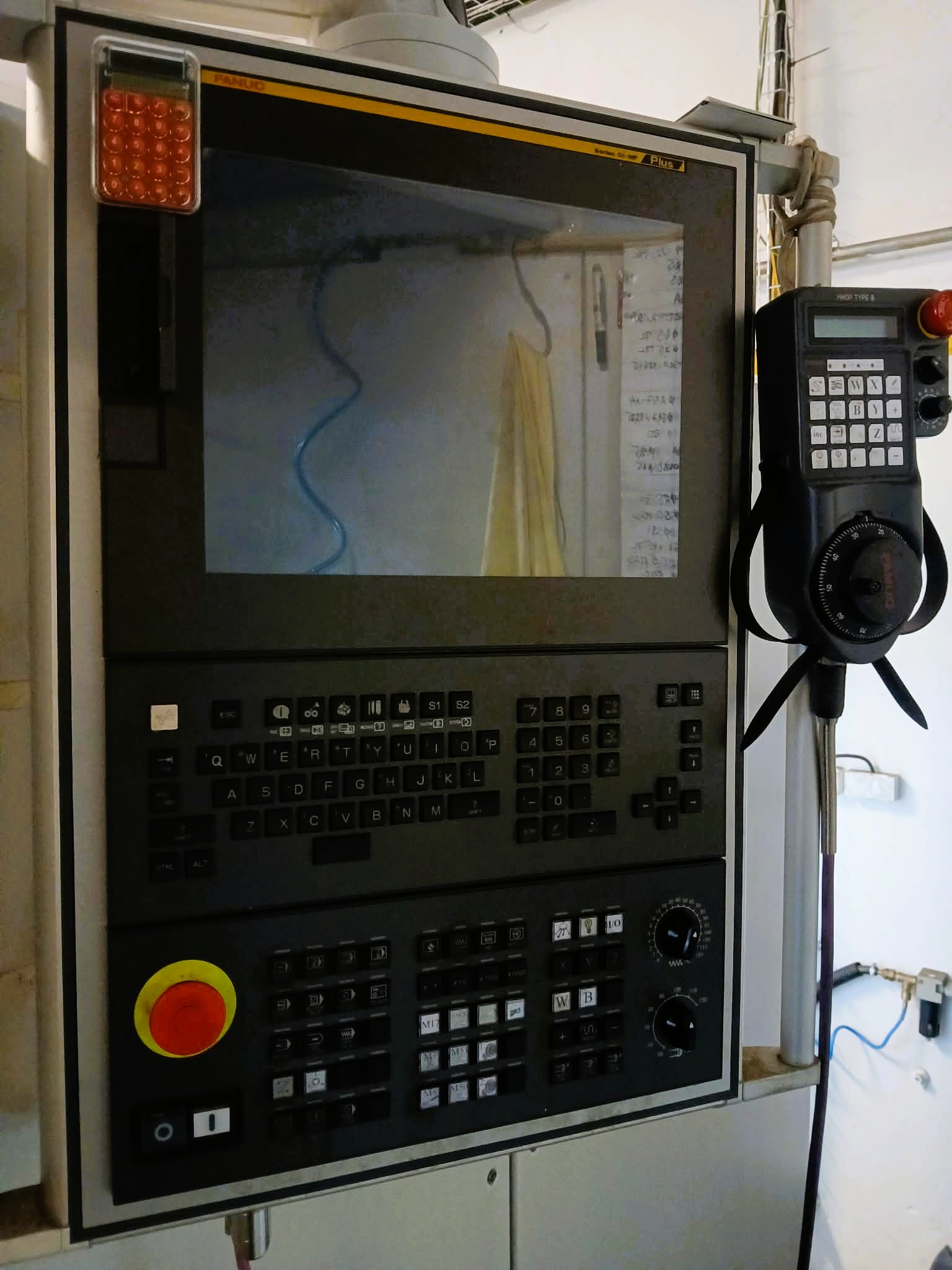

CNC Control System: FANUC Series 0i-MF Plus (with 15″ LCD screen and QWERTY keyboard)
Manual Control: Original FANUC iPendant remote handwheel (manual pulse generator) for flexible axis jog operation

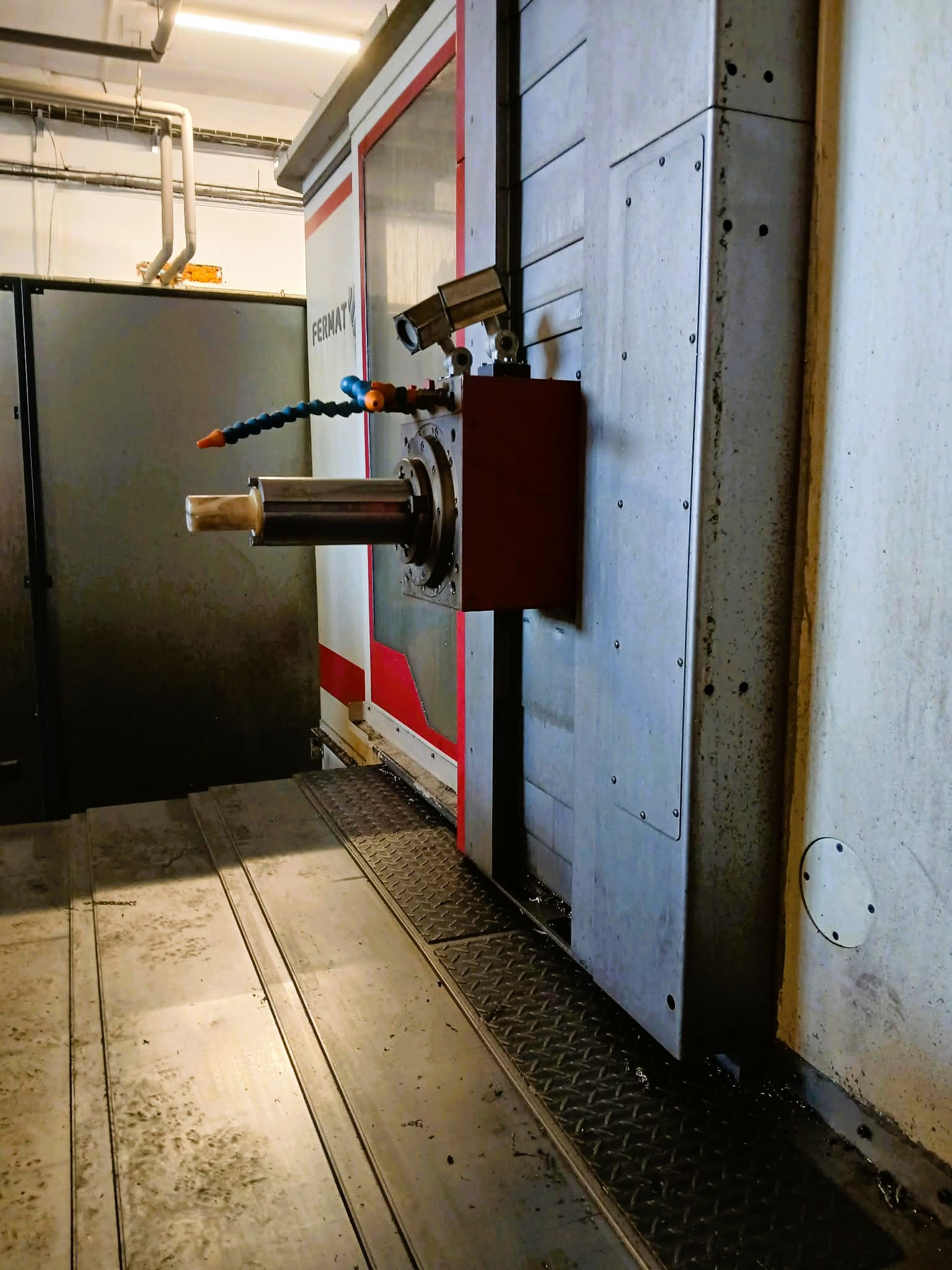

Spindle Diameter: 100 mm
Spindle Taper: ISO 50
Maximum Spindle Speed: 3,000 RPM
Spindle Travel (W-axis): 730 mm
X-axis Travel (Table Crosswise): 1,250 mm
Y-axis Travel (Headstock Vertical): 1,250 mm
Z-axis Travel (Table Longitudinal): 1,250 mm

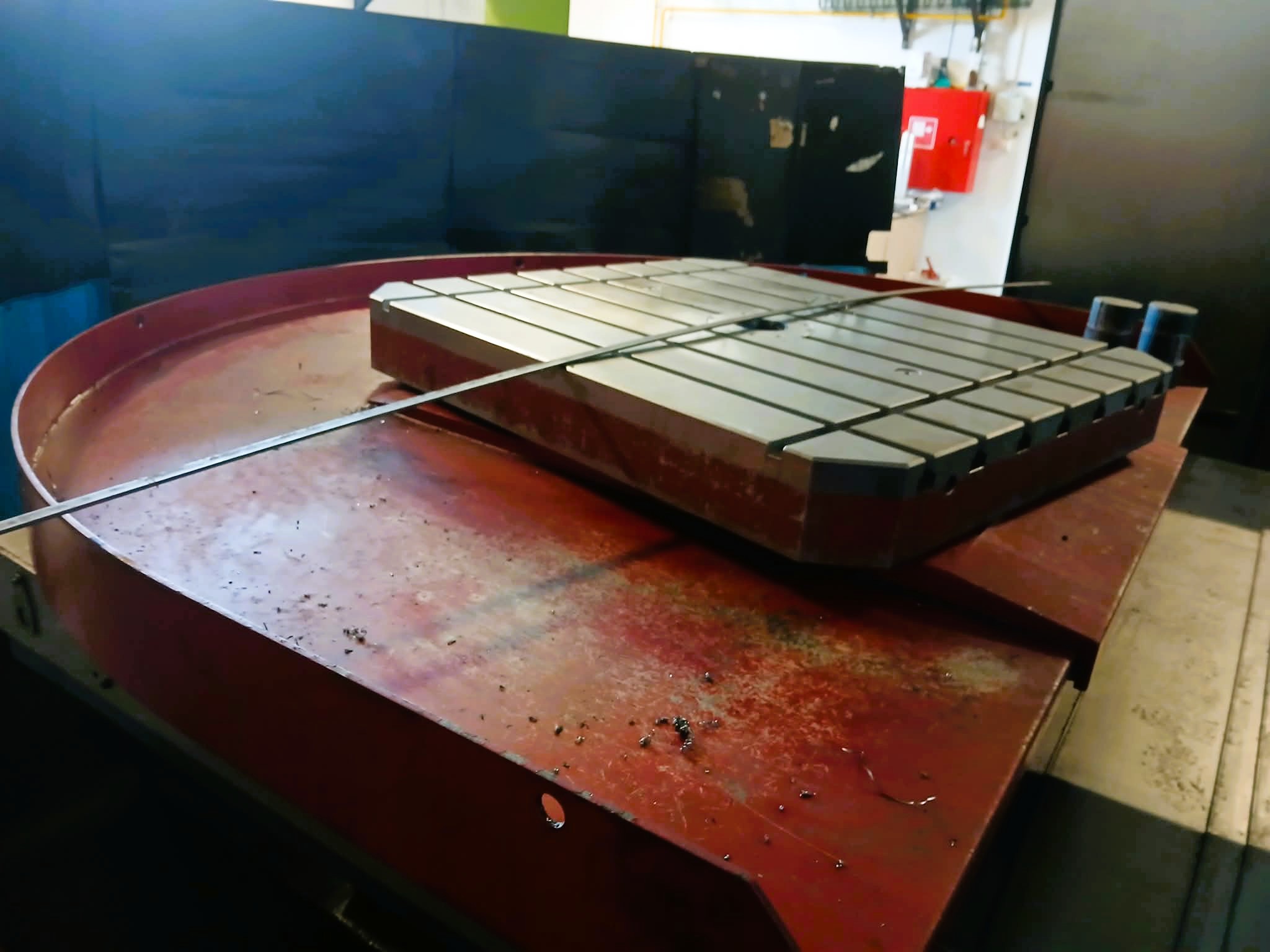

CNC Rotary Table Dimensions: 1,000 × 1,120 mm
Maximum Table Load Capacity: 5,000 kg (5 metric tons)
Main Spindle Motor Power: 22 kW / 26 kW
Machine Weight: Approx. 17.735 kg
