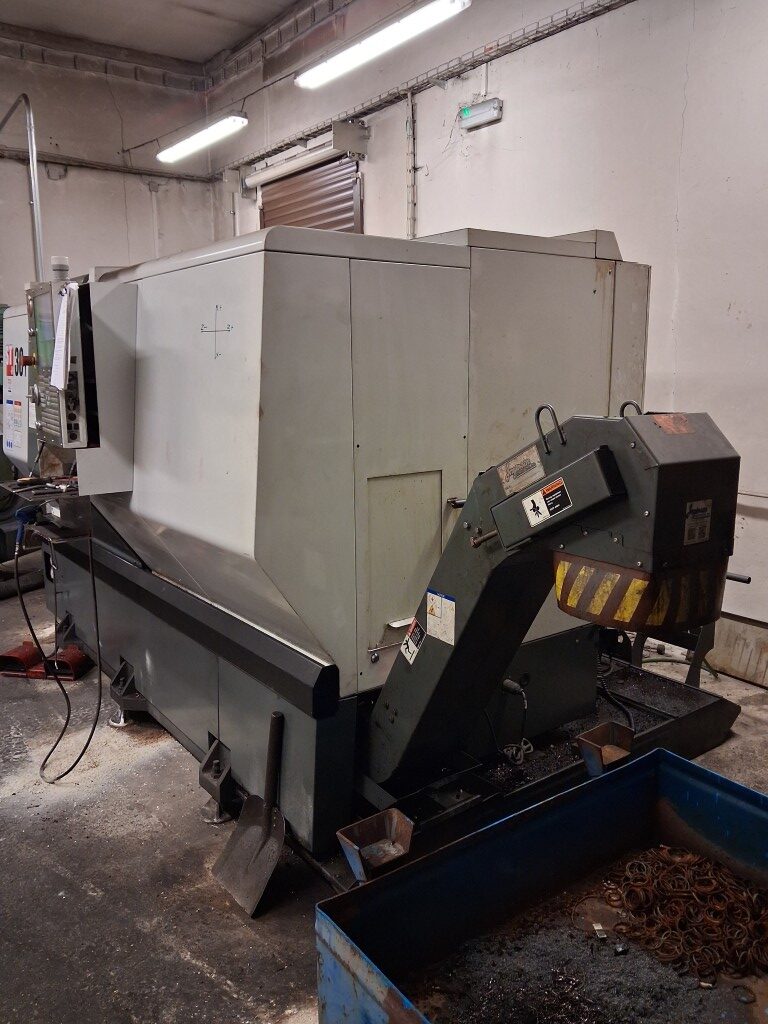

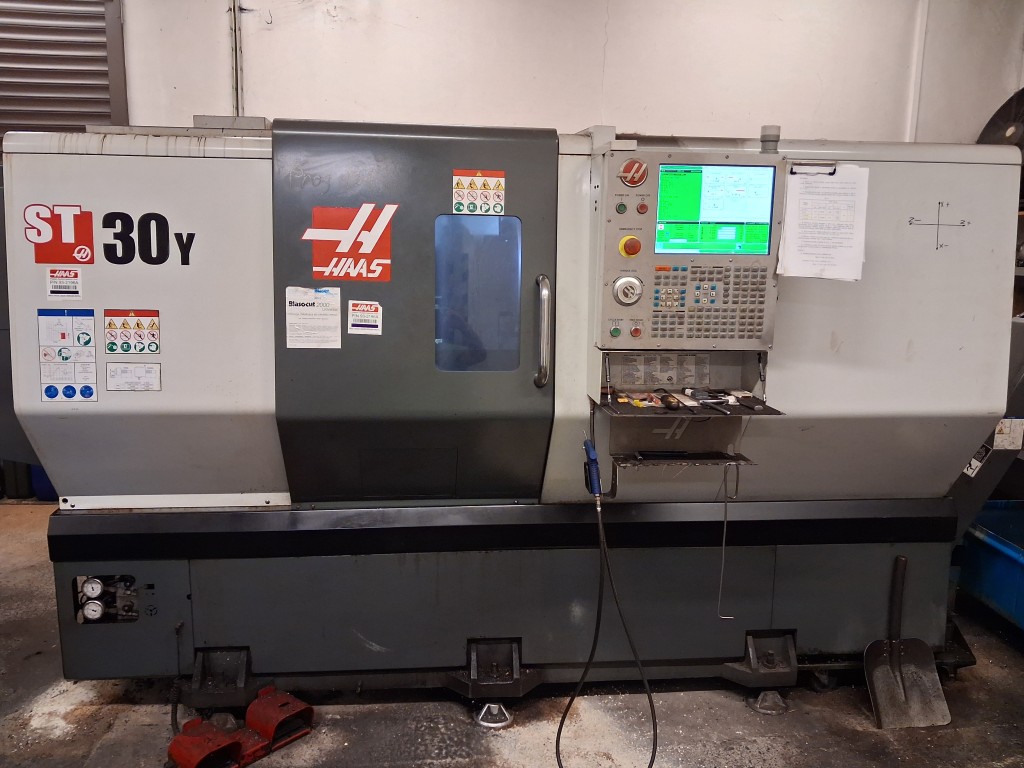

#06477 – CNC lathe HAAS ST-30Y

Technical Specifications: HAAS ST-30Y (Year 2016)
General Information:
• Machine Type: CNC Lathe with Y-Axis and Live Tooling

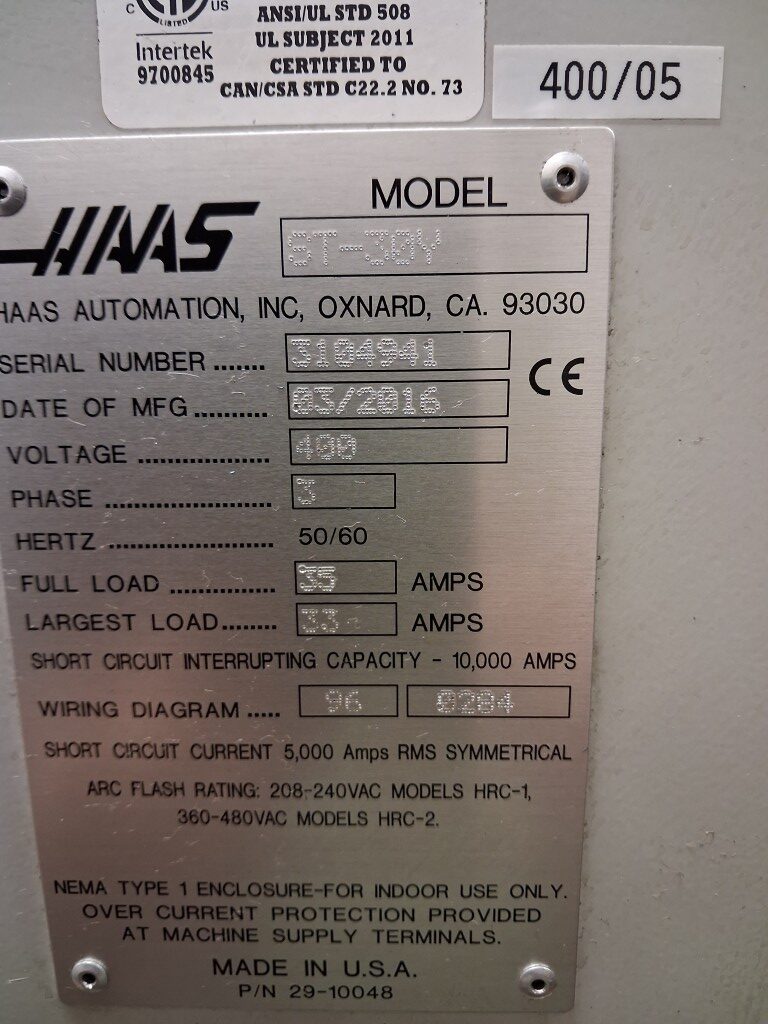

• Manufacturer: HAAS Automation (USA)
• Model: ST-30Y
• Year of Manufacture: 2016

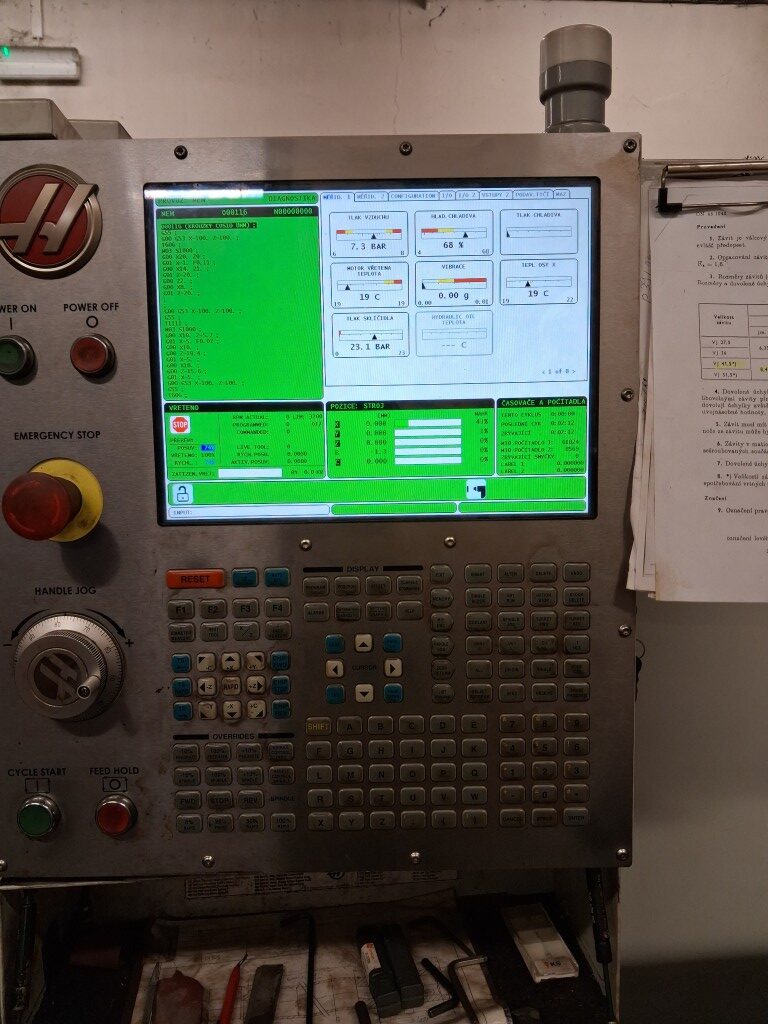

• Control System: HAAS Next Generation Control (NGC) / HAAS CNC Control
Capacities:
• Max. Cutting Diameter: 457 mm (18.0″)
• Max. Cutting Length (without chuck): 826 mm (32.5″)
• Bar Capacity: 76 mm (3.0″)
• Max. Swing Over Front Apron: 806 mm (31.75″)
• Max. Swing Over Cross Slide: 527 mm (20.75″)
Spindle Specs:
• Max. Speed: 3,400 rpm
• Spindle Nose: A2-6
• Max. Motor Power: 22.4 kW (30 hp)
• Chuck Diameter: 254 mm (10″)
Travels & Axes (including Y-Axis):
• X-Axis Travel: 318 mm (12.5″)
• Y-Axis Travel: ±50.8 mm (±2.0″)
• Z-Axis Travel: 826 mm (32.5″)

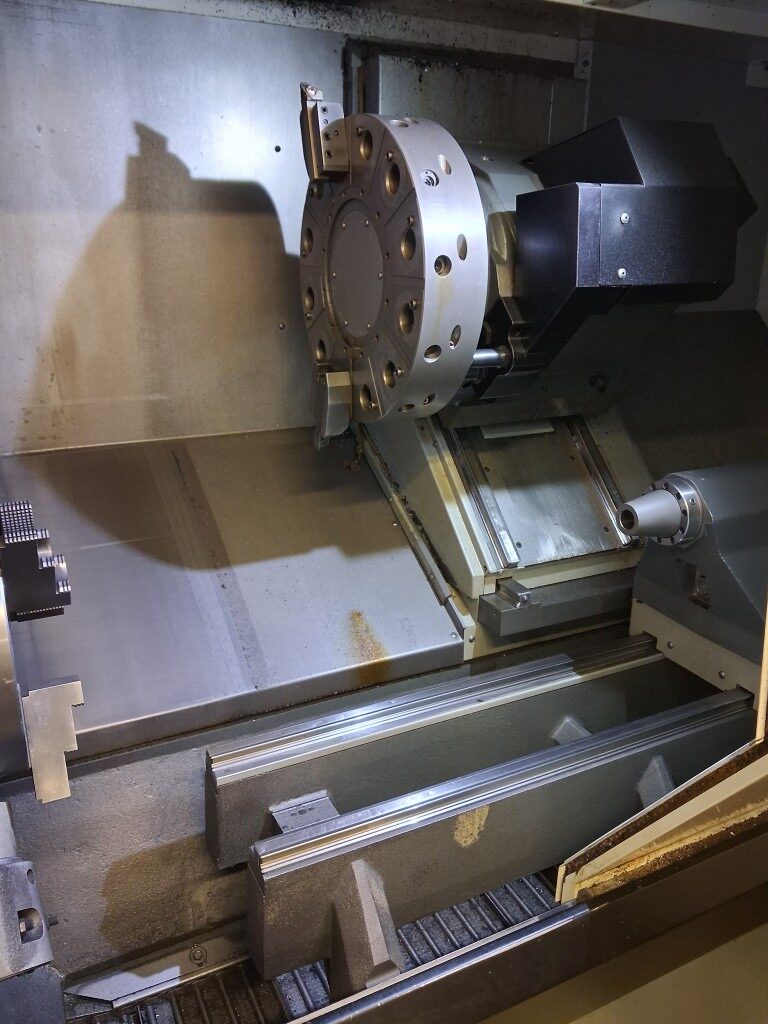

Turret & Live Tooling:
• Turret Capacity: 12-Station Turret (BMT65 or VDI40)
• Live Tooling Max. Speed: 4,000 rpm
• C-Axis Resolution: High-precision positioning
Dimensions & Weight:
• Machine Weight: approx. 6,645 kg (14,650 lbs)

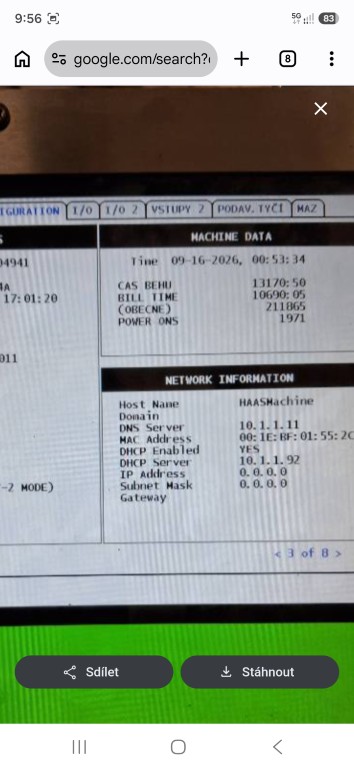

Machine Hours & Operating Data (HAAS NGC System)
• Power On Time: 13,170:50 hours (Total time the machine has been powered on since manufacturing)
• Cycle Time / Bill Time: 10,690:05 hours (Actual productive time when the machine was running a program and working – excellent ratio compared to power-on time)
• Power Ons: 1,971 times (Total number of times the machine has been switched on via the main switch)
