#06461

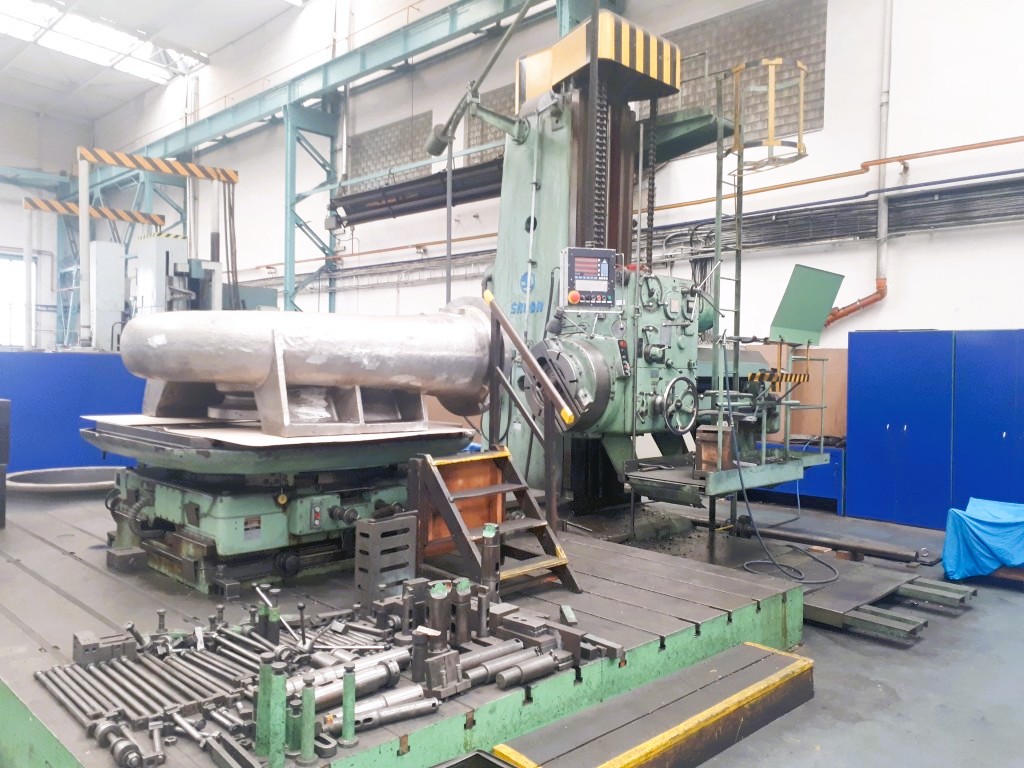

Horizontal boring machine SKODA HVF160D, incl. face plate
Technical specifications
Technical specs
• Manufacturer: SKODA (Czech Republic)
• Model: HVF 160 D
• Spindle Diameter: 160 mm
• Spindle Taper: Metric 100
• Max. Boring Diameter with Spindle: 1,000 mm
• Max. Boring Diameter with Facing Head: 1,300 mm
• Max. Spindle Travel (W-axis): 1,200 mm
• Max. Spindle Center Height Above Table (Y-axis): 1,900 mm
• Max. Distance Between Facing Head and Steady Rest: 4,400 mm
• Facing Head Diameter: 810 mm
• Table Clamping Area Dimensions: 1,600 x 1,800 mm
• Longitudinal Table Travel Along Bed (X-axis): 2,500 mm
• Cross Table Travel: 2,800 mm
• Spindle Speeds: 2.25 – 450 rpm
• Facing Head Speeds: 2.25 – 28 rpm
• Main Motor Power: 18 kW
• Total Machine Weight: 35,500 kg
