#06436

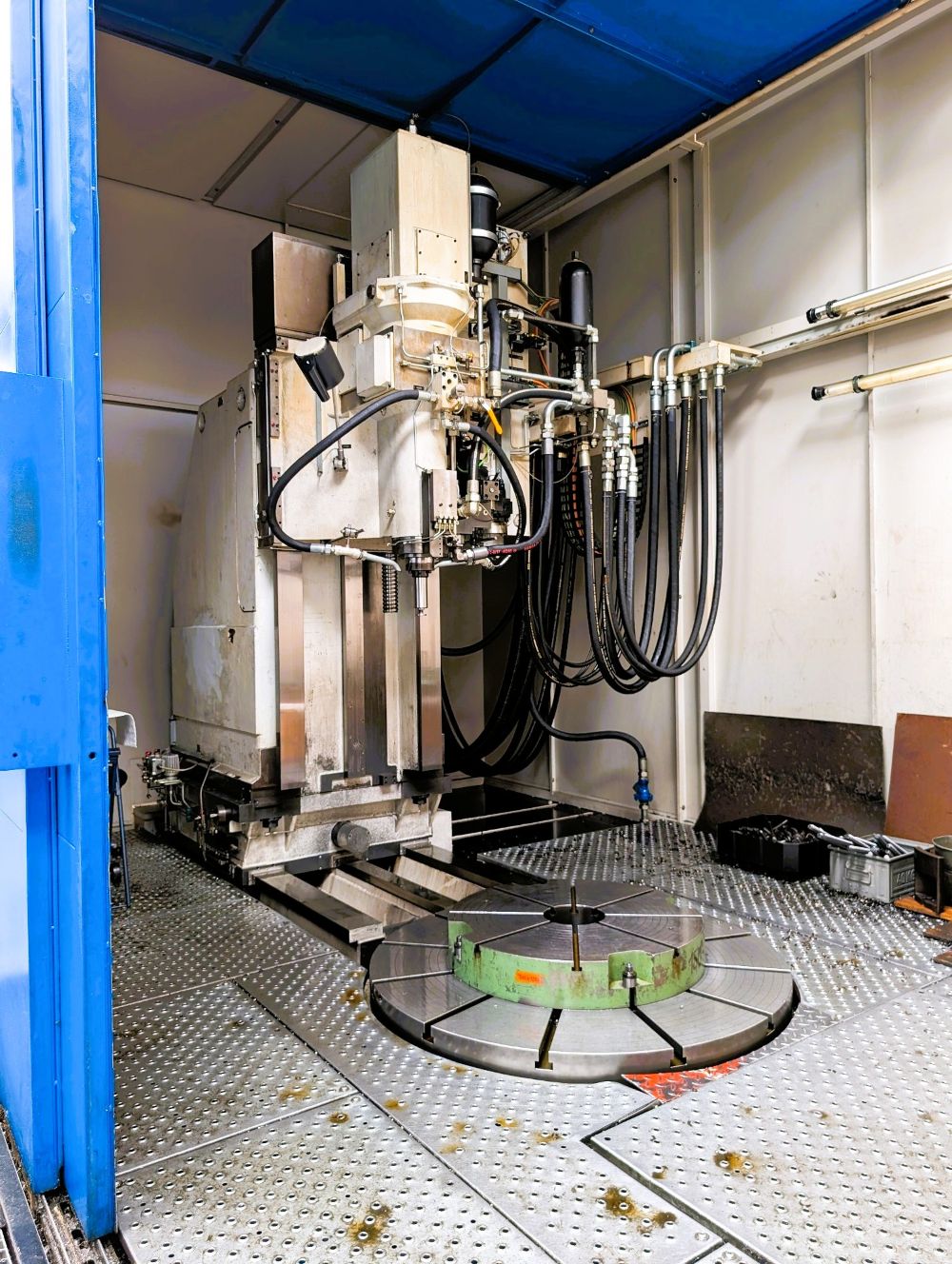

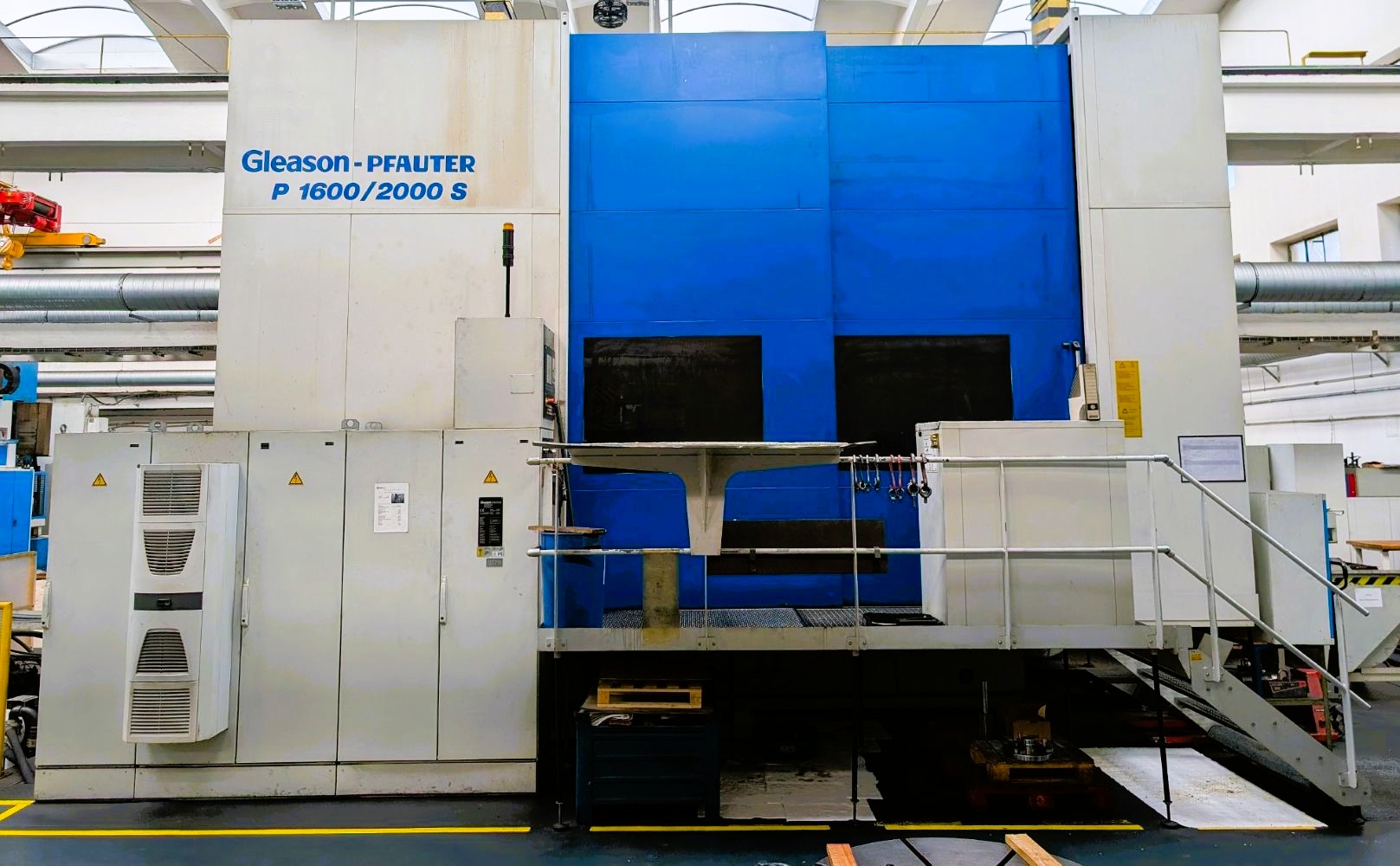

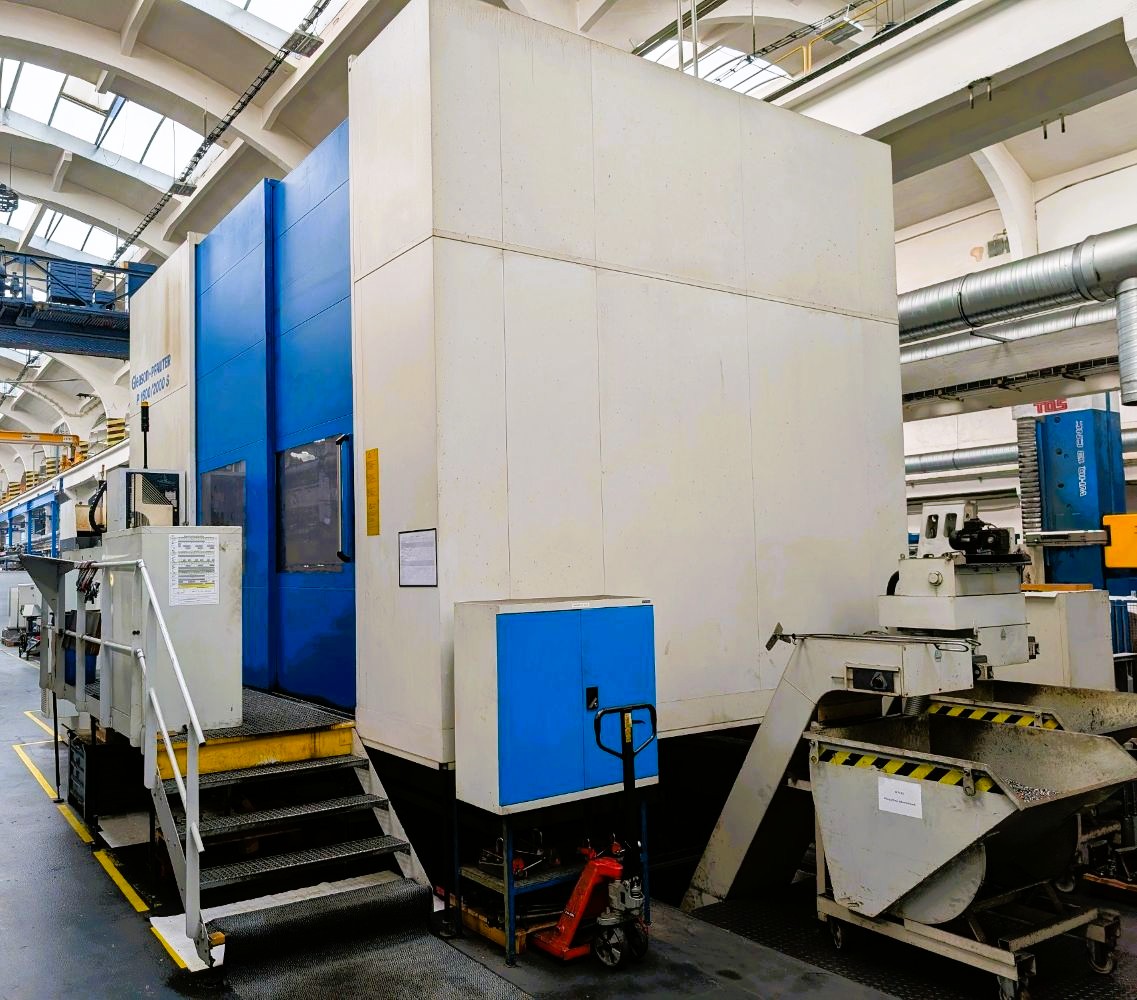

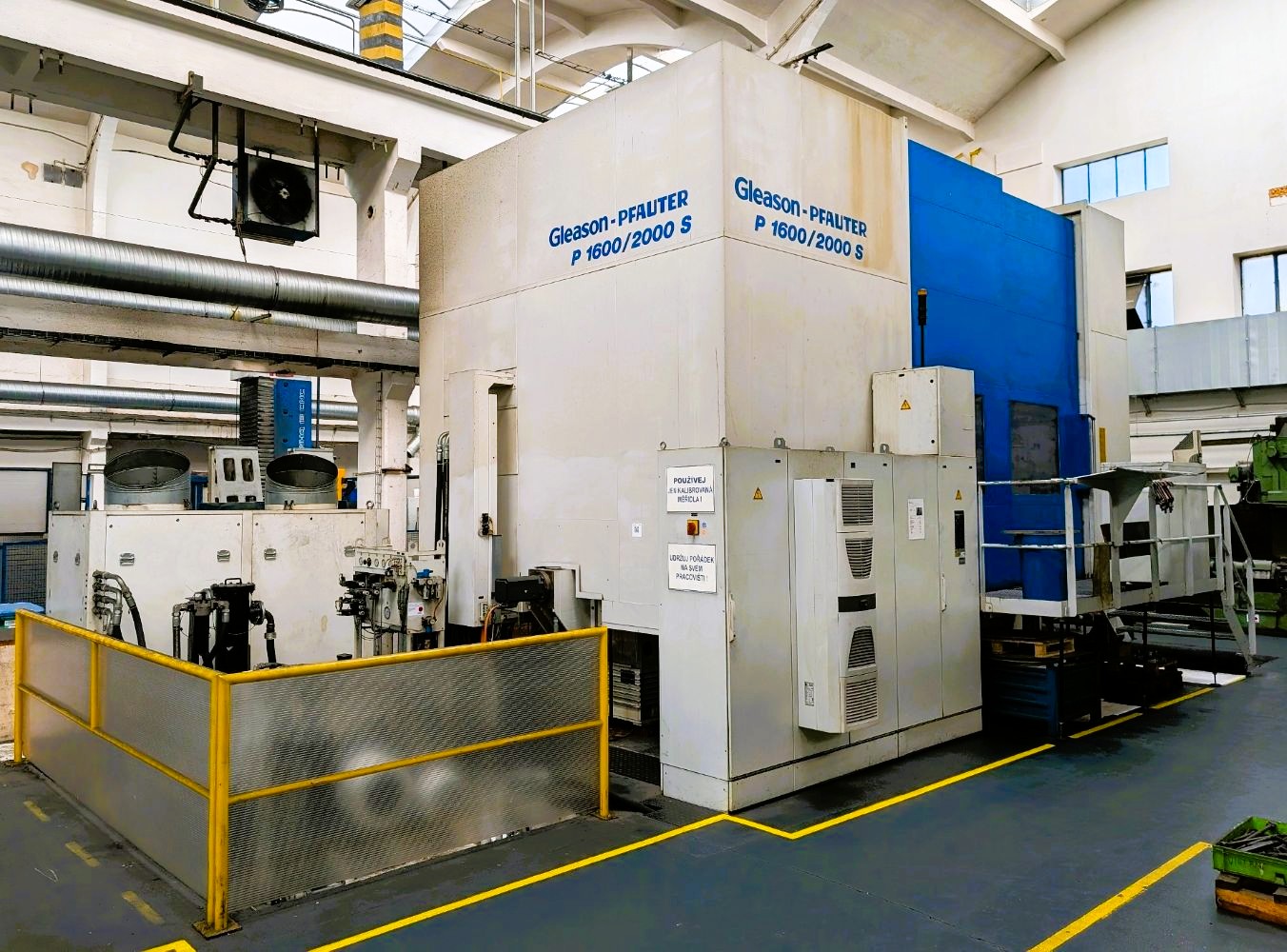

Gear Shaping Machine Gleason-PFAUTER CNC P 1600/2000 S – SIEMENS CNC control system SINUMERIK 840D with 5 axes and 1 Spindle
Technical specifications
Technical specs
External gearing: 2,000 mm
Internal gearing: 2,000 mm
Max. workpiece swing dia.:2,200 mm
Nominal machine module (approx.)
– with hydraulic shaping head H1: 16 mm
Ram stroke rate range
– with hydraulic shaping head H1/H2: max. 80 min-1
Max. gear face width:
– with hydraulic shaping head H1: 350 mm
Min. helix angle of the hydrostatic
helical guide
– with hydraulic shaping head H1/H2: 850 mm
Minimum/maximum distance between tool and
workpiece axis
– with hydraulic shaping head H1/H2: 0 – 1,200 mm
Axial slide adjustment range
– with hydraulic shaping head H1: 1,100 mm
Column lateral offset range
– with hydraulic shaping head H1/H2: +/- 50 mm
SIEMENS CNC control system SINUMERIK 840 D
with 5 axes and 1 spindle
