#06401

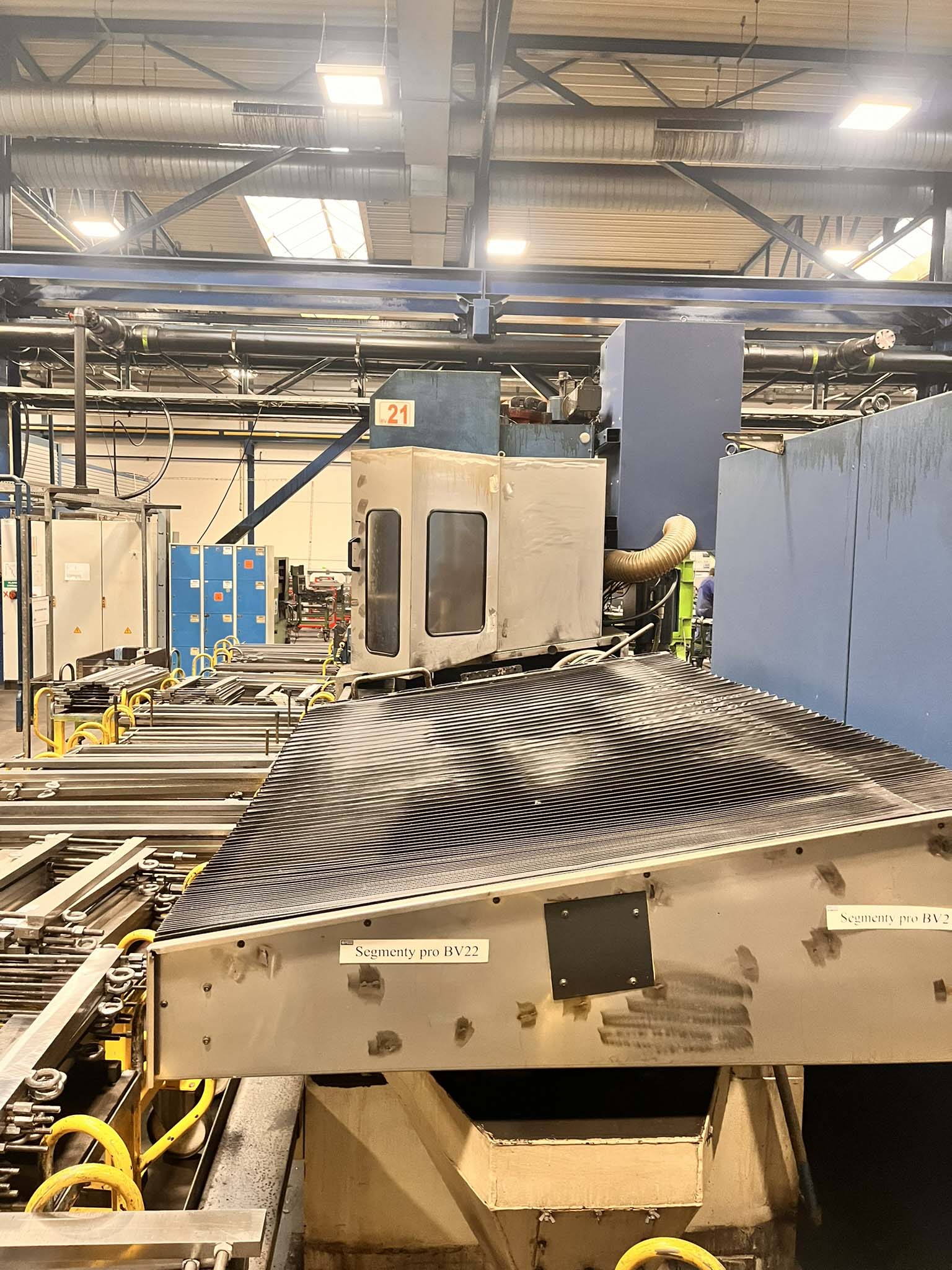

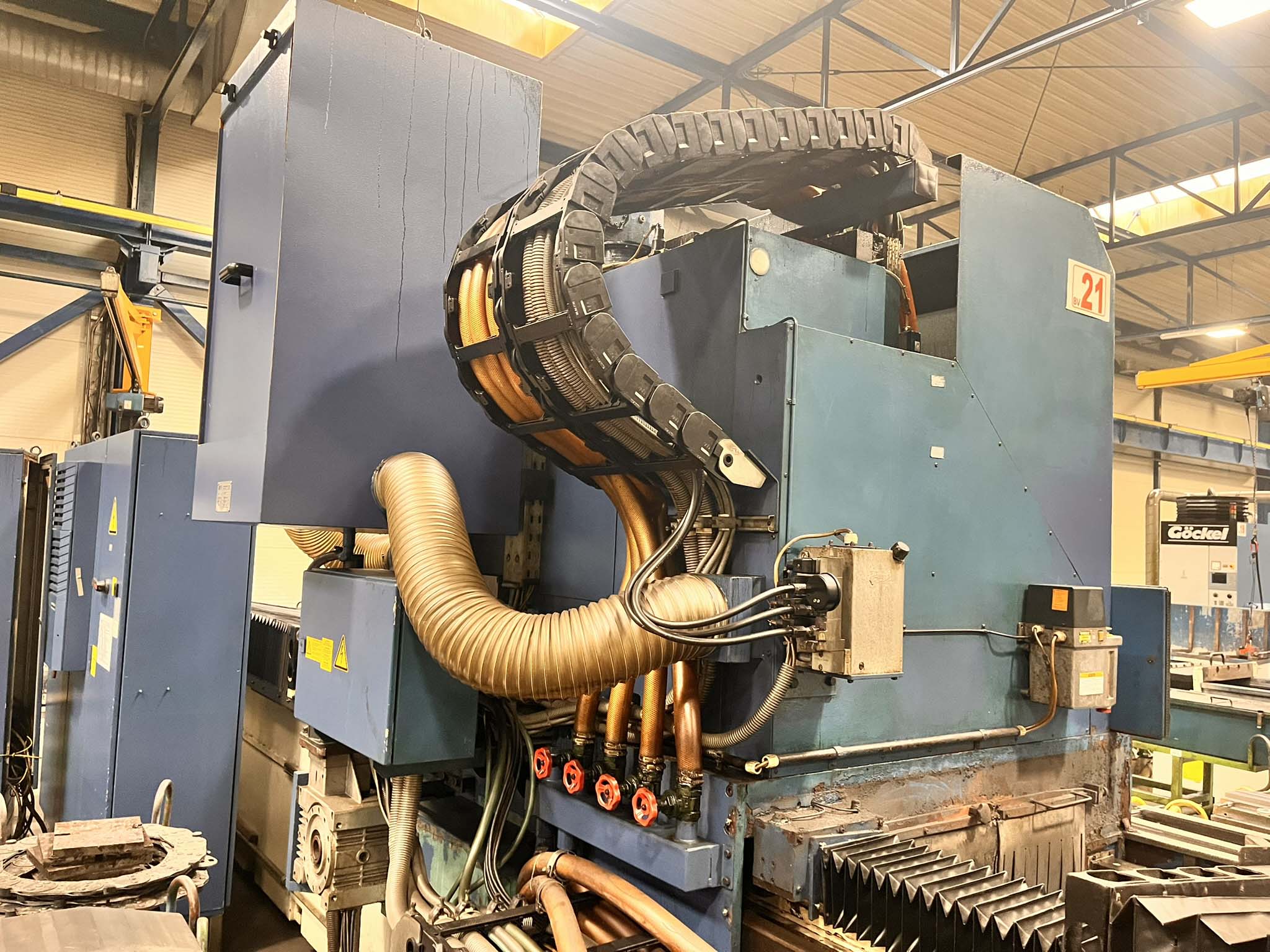

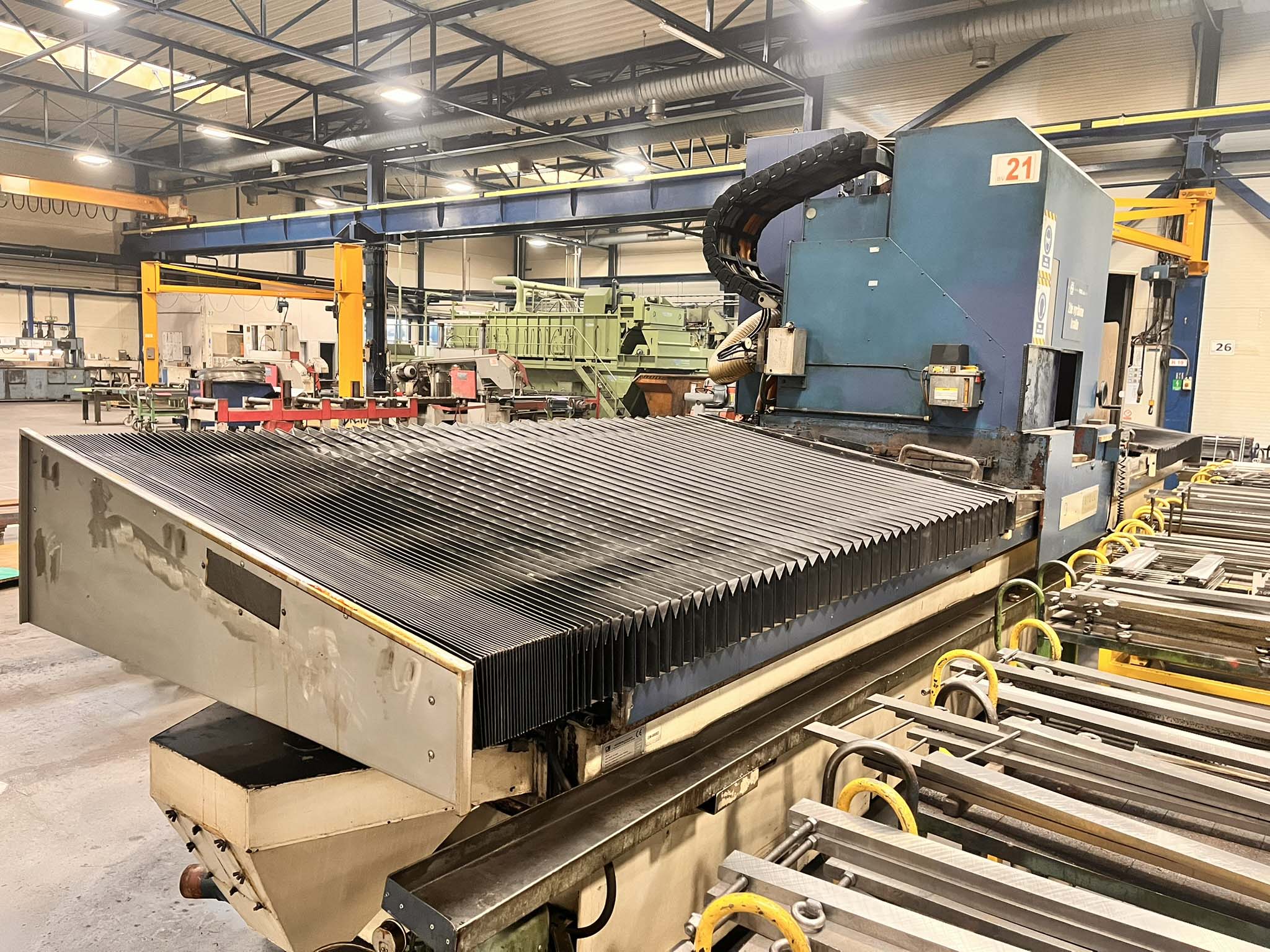

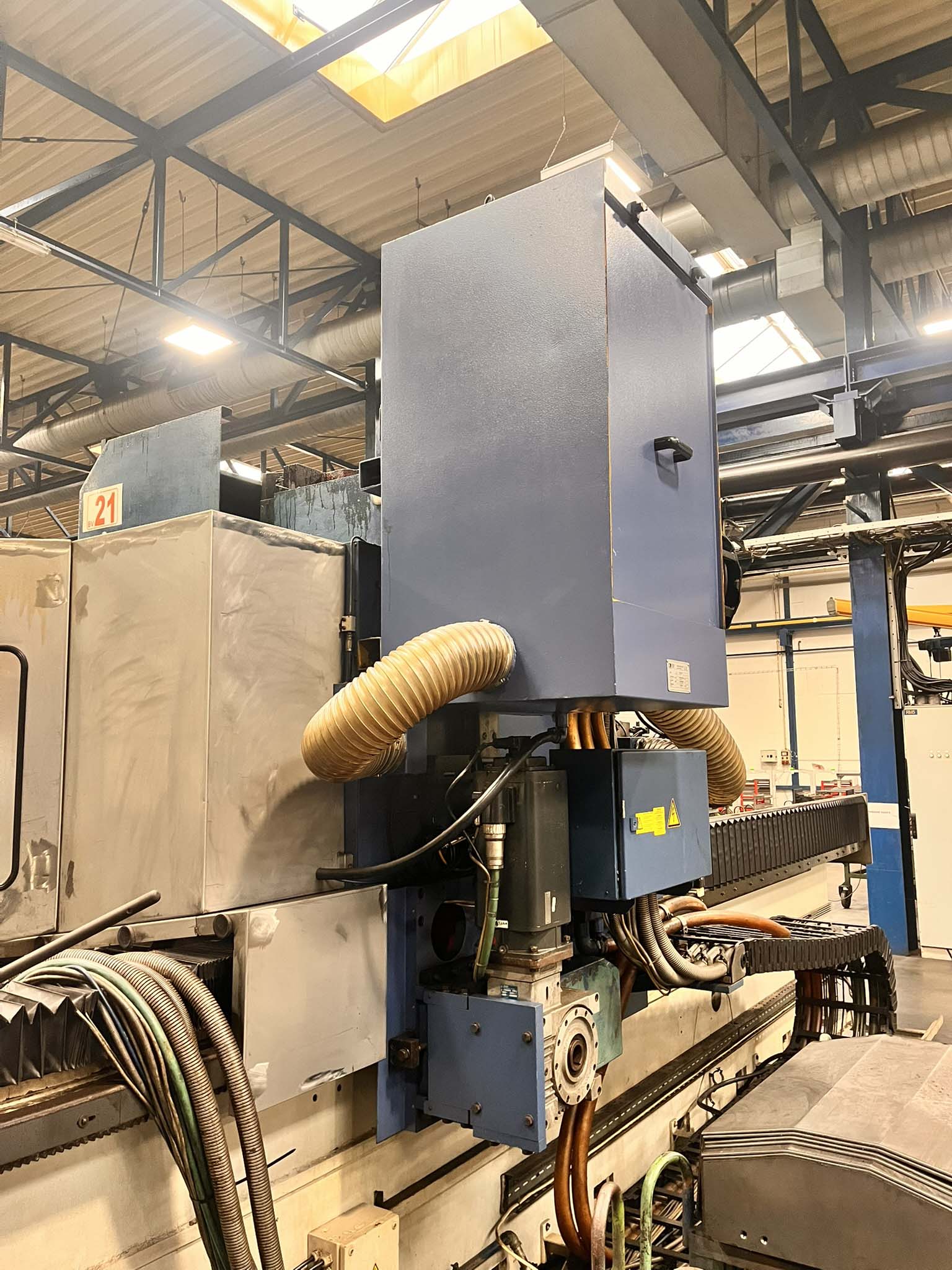

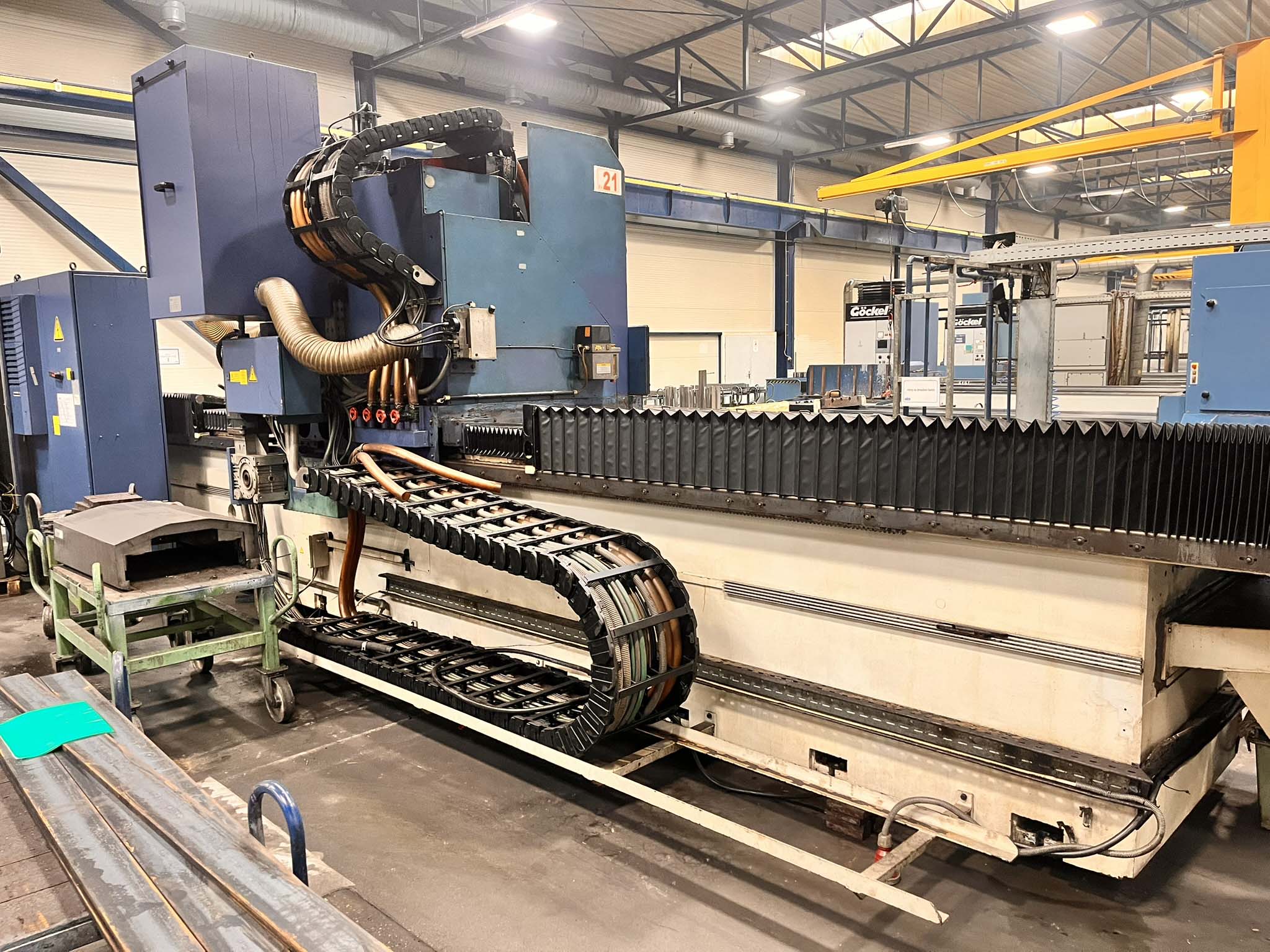

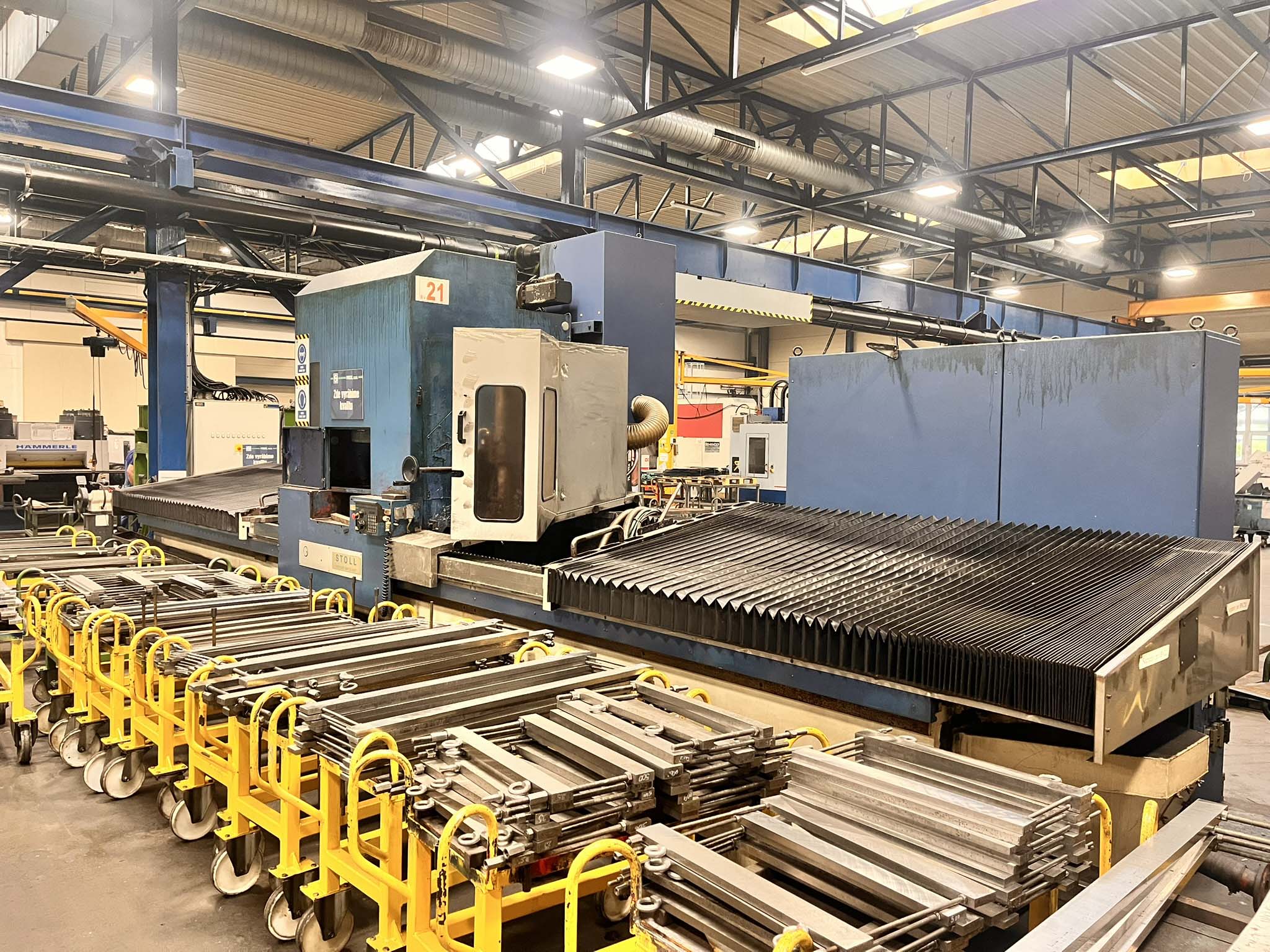

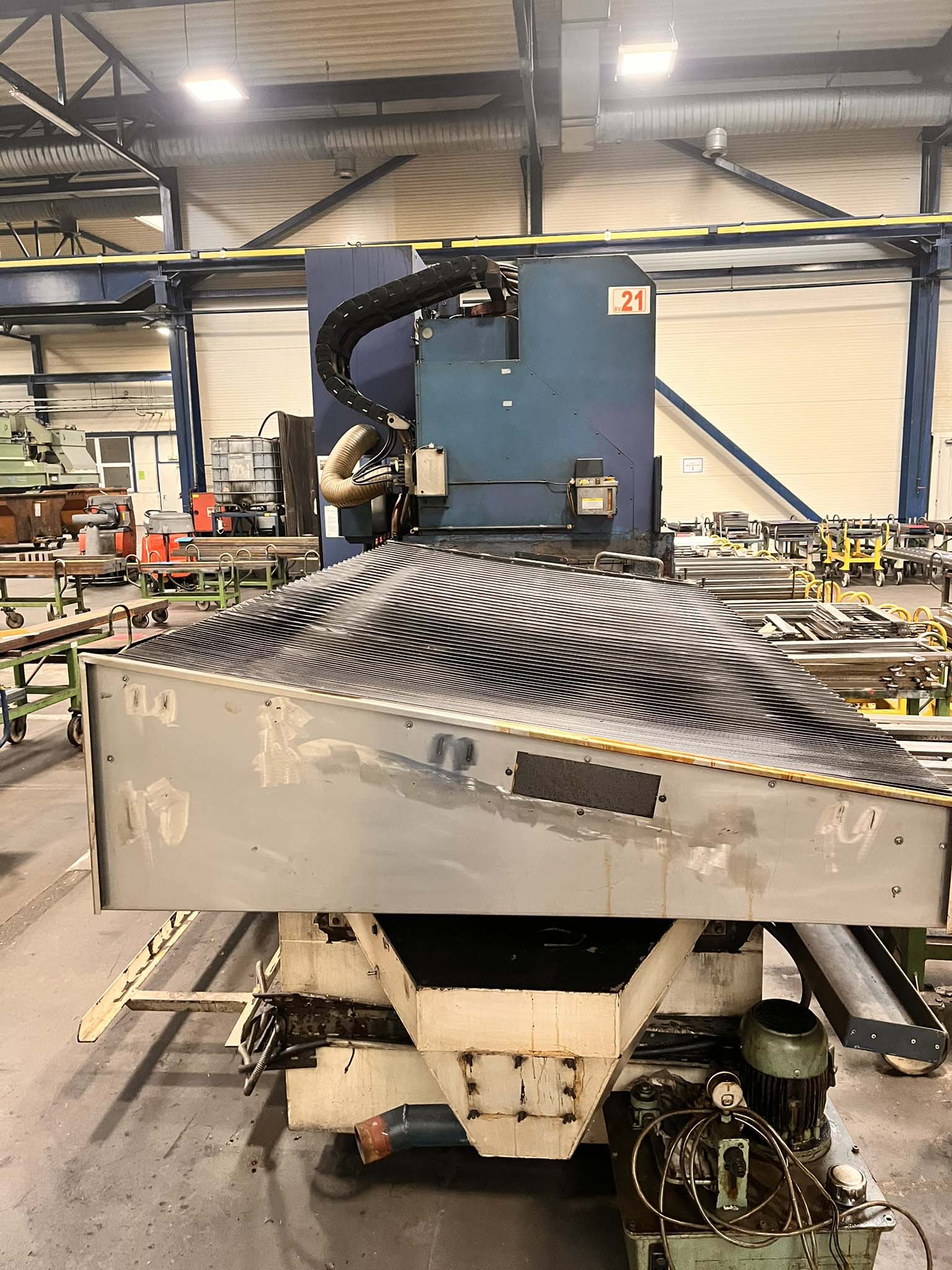

Göckel Reform AR35 Type 11 CNC – Knife / Blade Grinding& Sharpening Machine
Technical specifications
Technical specs
Grinding length: 3500 mm
Grinding width: 700 mm
Electromagnetic table: 3500 x 700 mm
Polarity reversal via automatic polarity reversal device
Magnetic force control: in 6 steps
Pole step: p=18 mm
Wear limit: 12 mm
Grinding width max.: 500 mm
Grinding height max.: 320 mm
Segment head: 800 mm
Segment dimensions: 120 x 40 x 180 mm
Number of segments: 1 set = 16 pcs
Grinding motor power: 110 kW
Grinding motor revolutions: 580 rpm
Grinding motor feed: 0,05-35 m/min infinitely variable
Grinding motor
Weight: spprox. 30200 kg
Main dimensions: 10200 x 3315 x 3600 mm

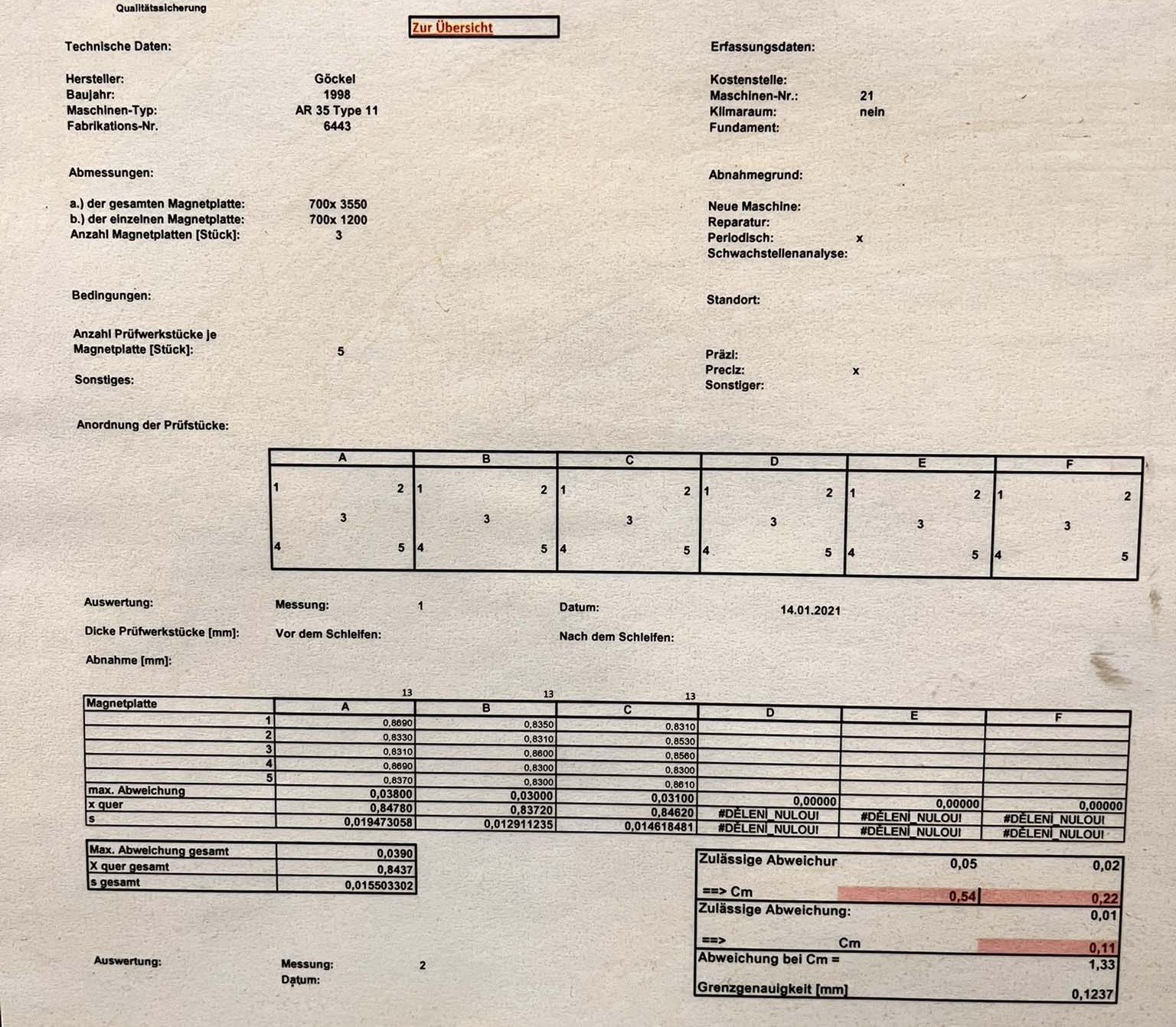

Schleiftoleranz: ±0,005mm/m

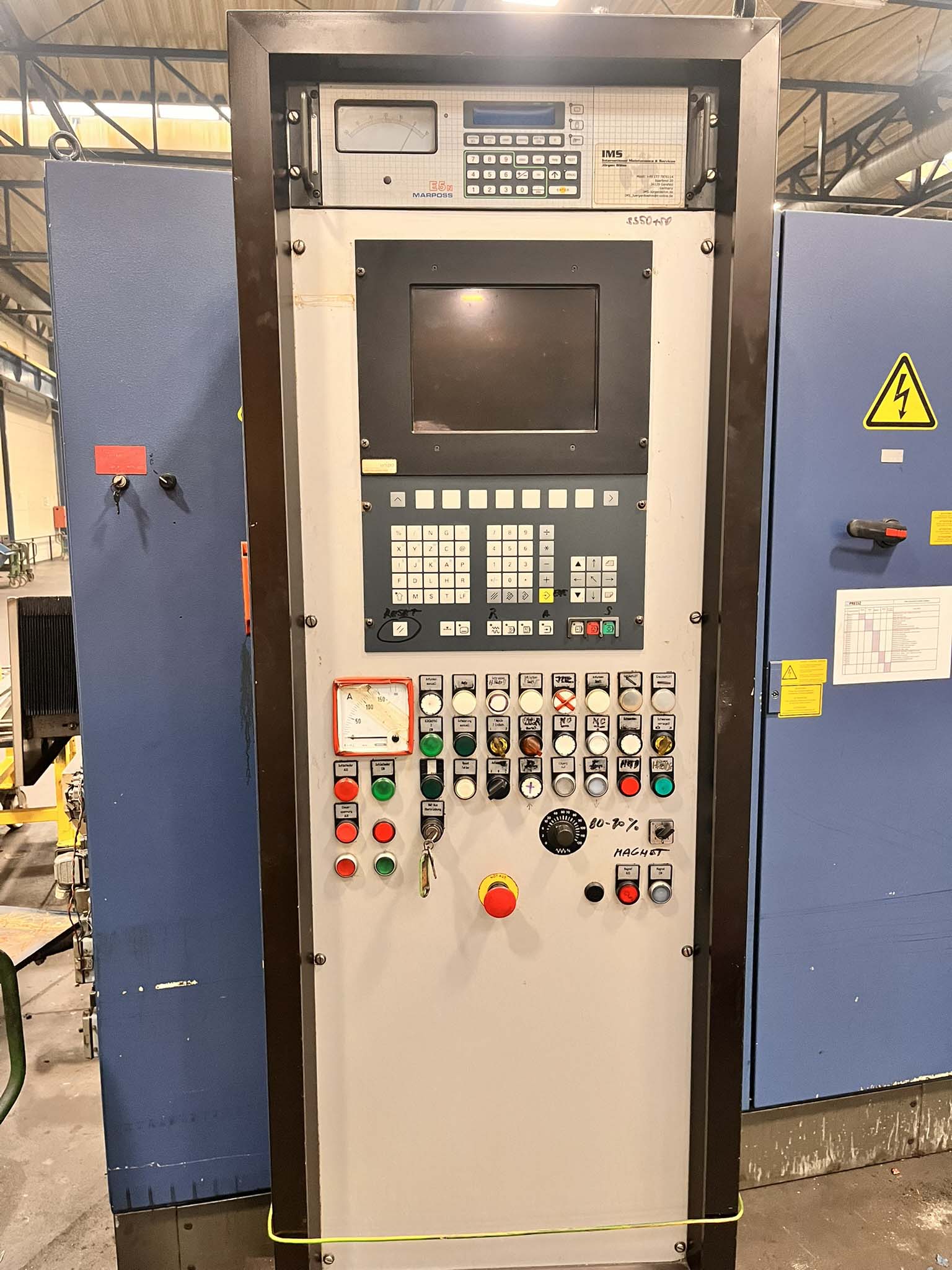

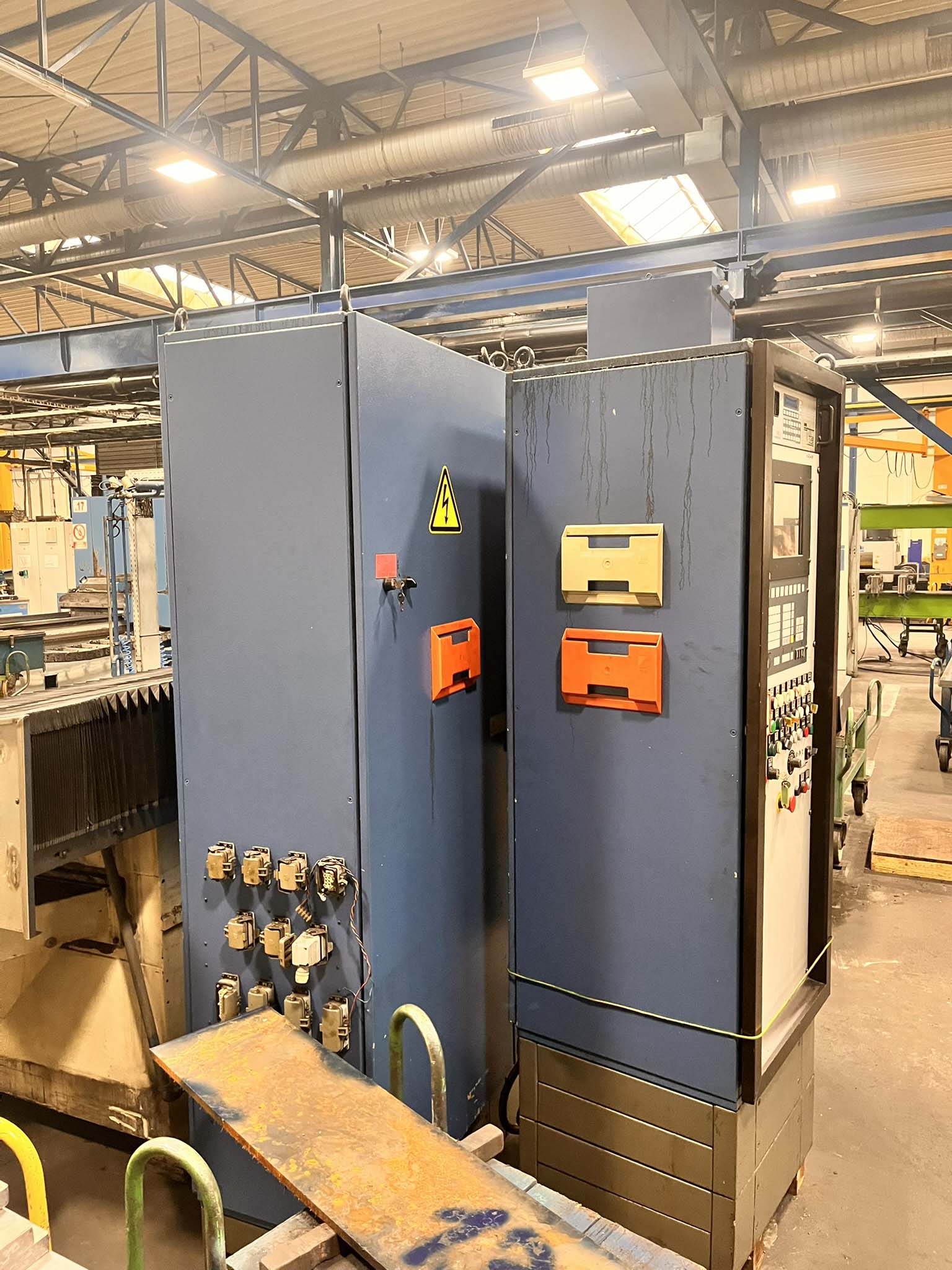

CNC Siemens
