#06349

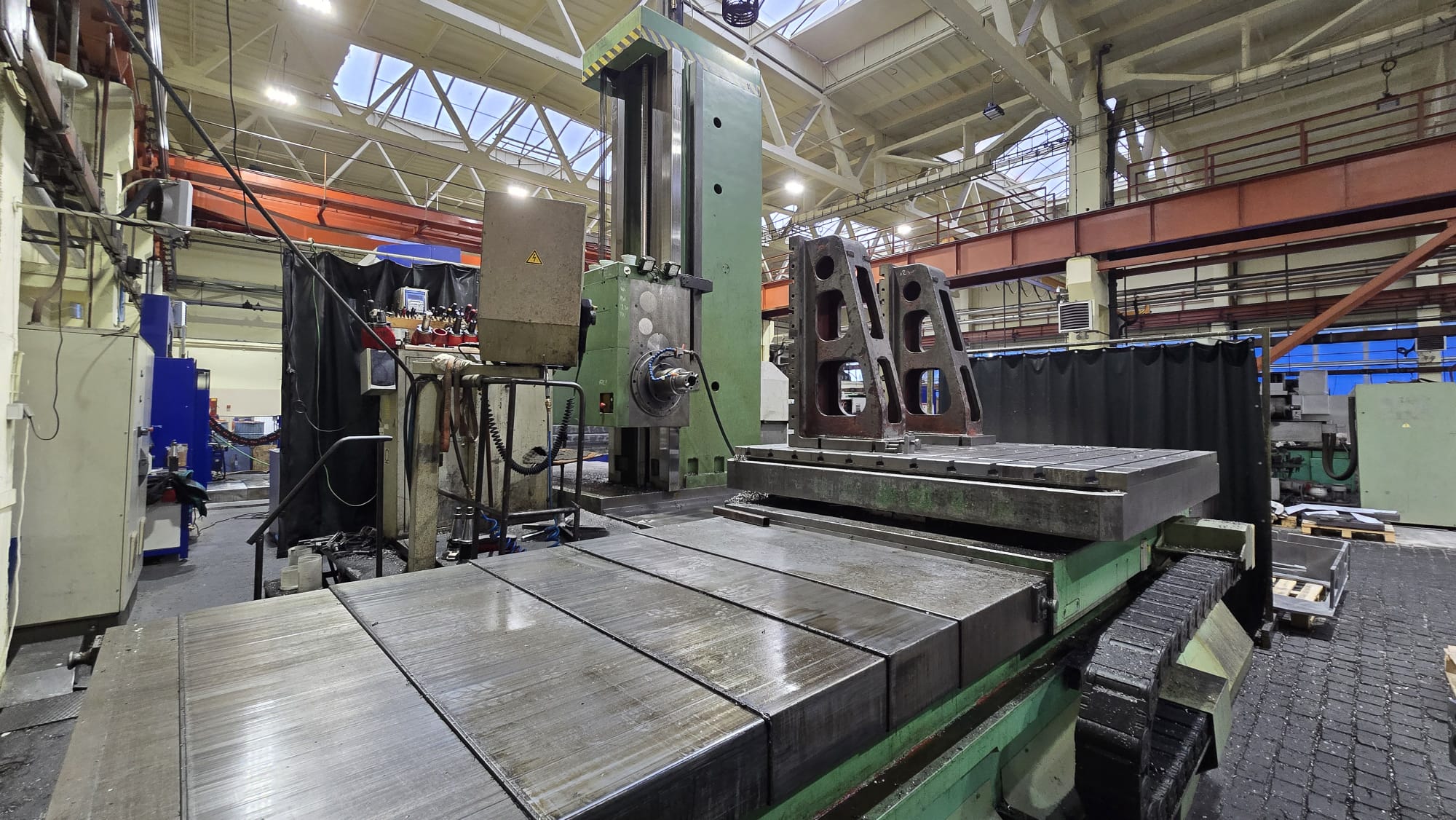

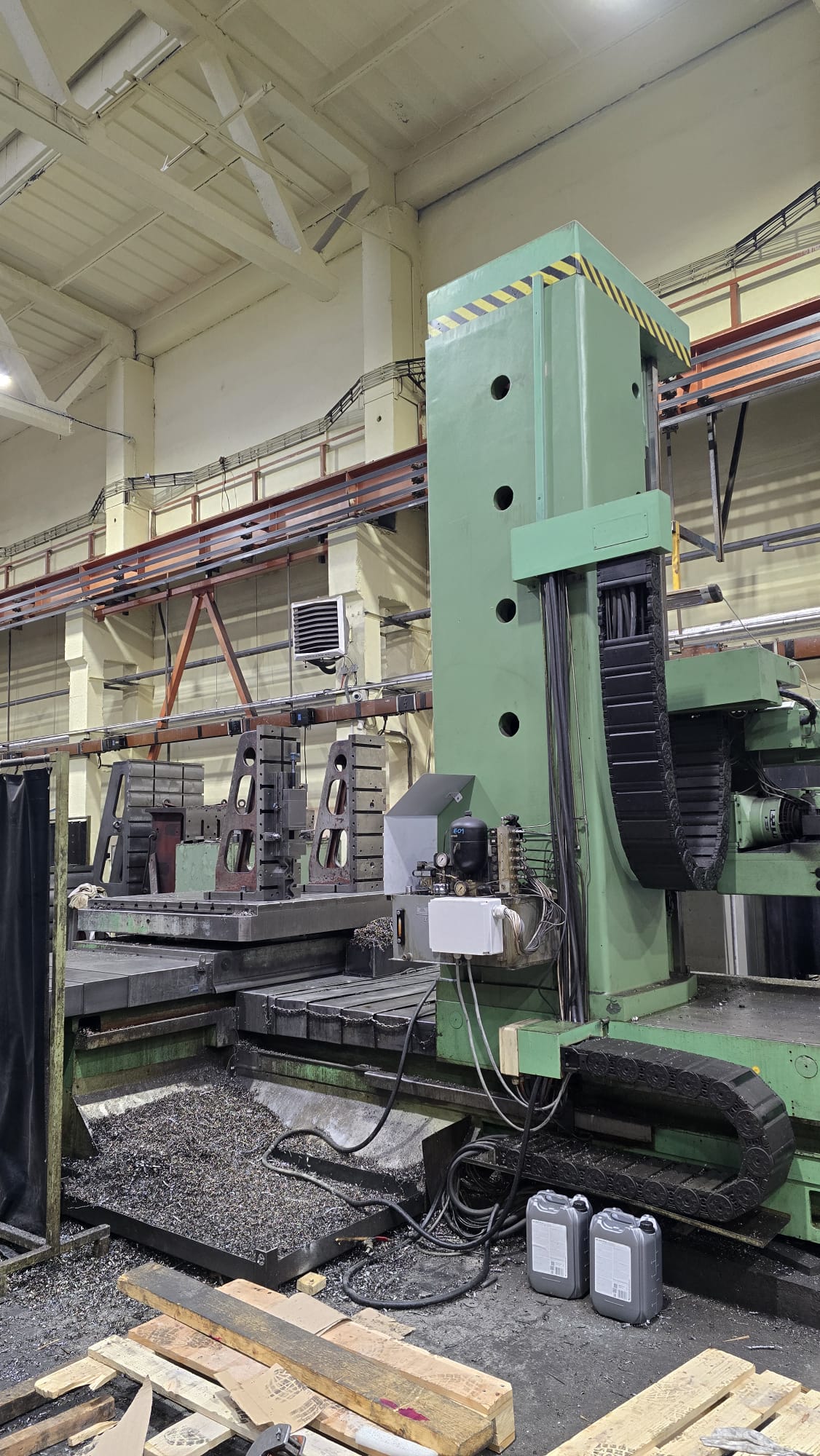

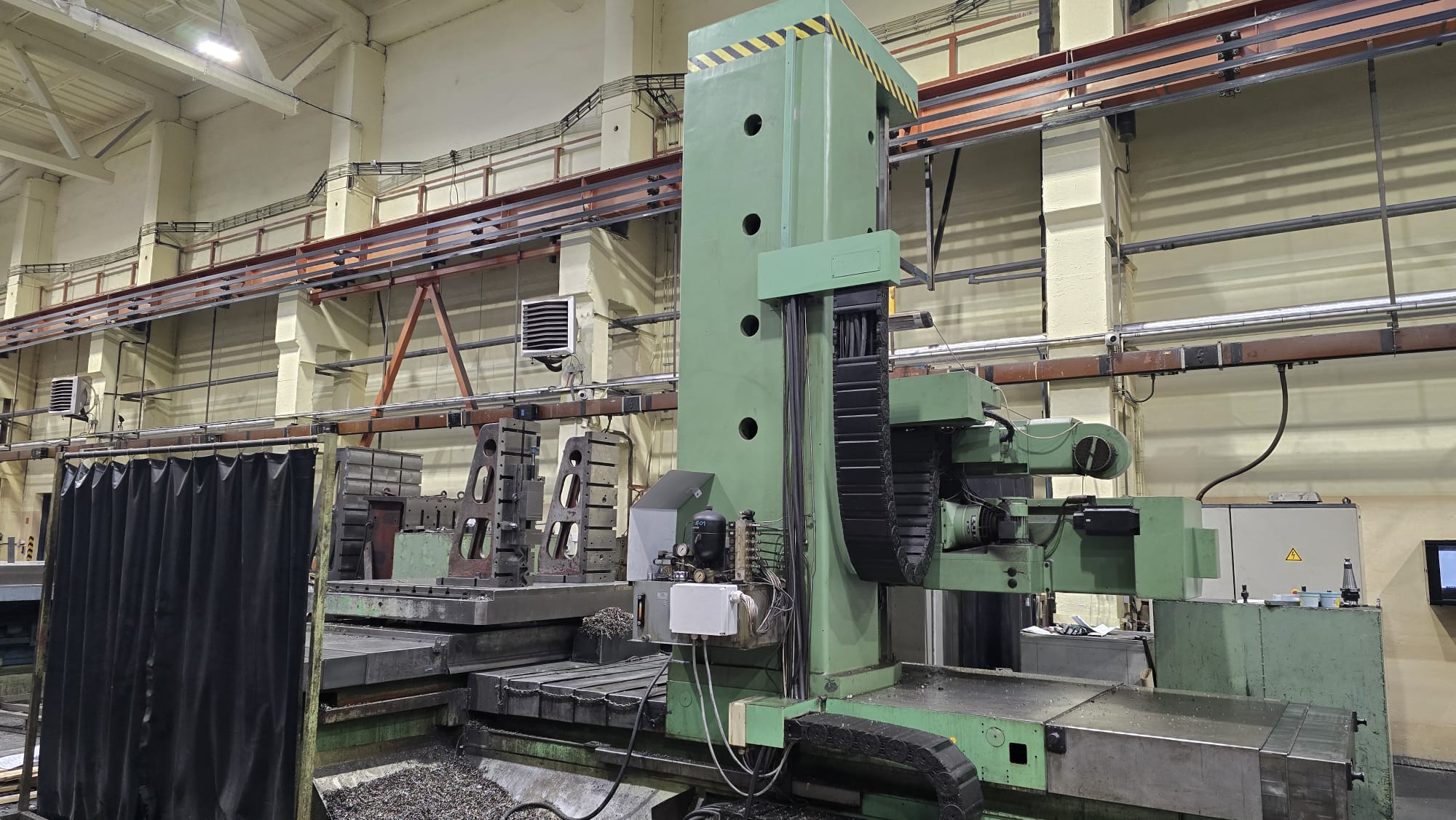

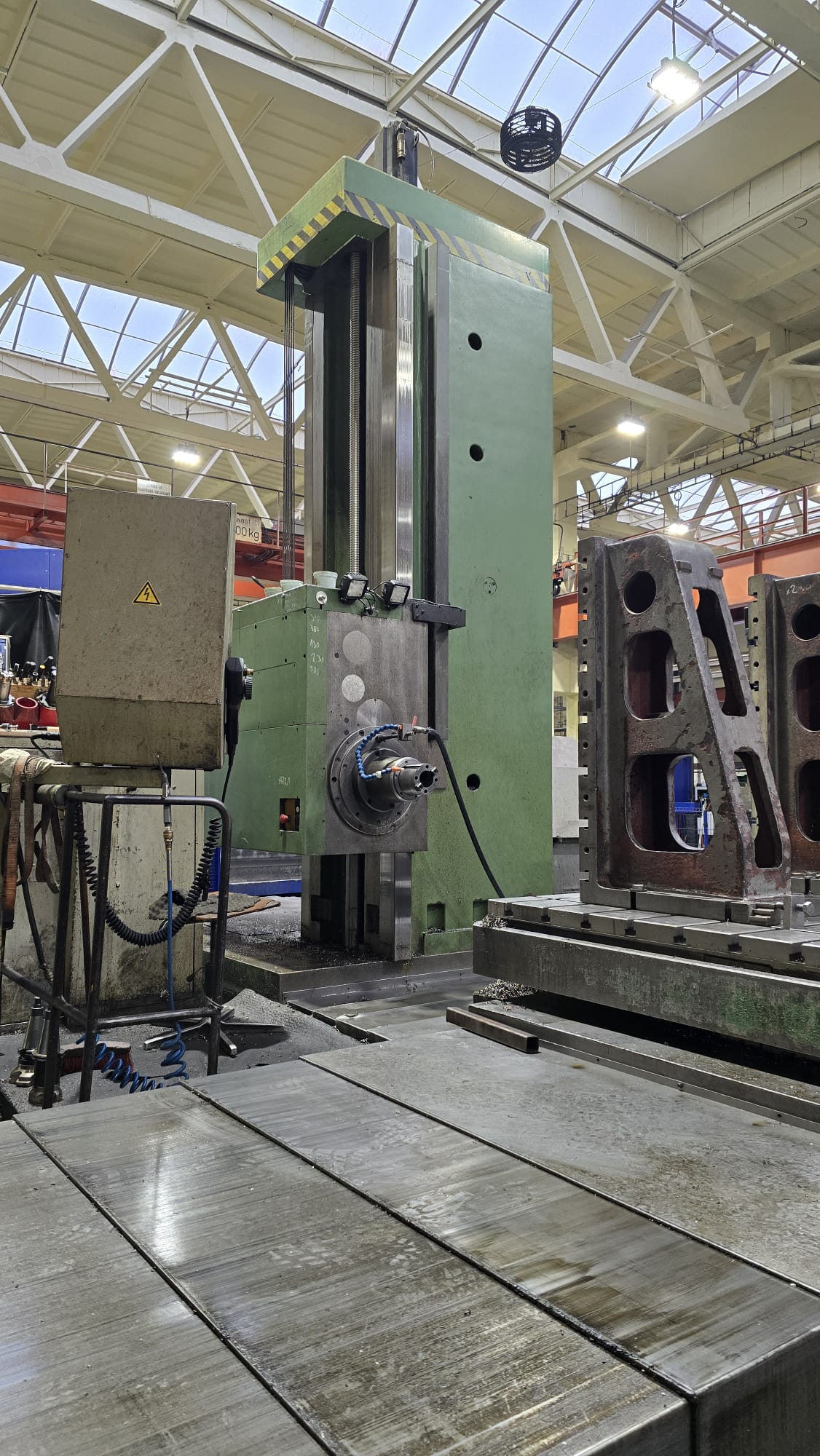

Horizontal Boring Machine TOS WHN 13.4 CNC Heidenhain TNC530, general repair 2007
Technical specifications
Technical specs
Diameter of the working spindle: 130 mm
Spindle taper: ISO 50
Spindle speed: 1200 rpm/min
X axis: 2000 mm
Y axis: 2000 mm
Z axis: 1250 mm
Spindle extension: 800 mm
Clamping surface of the table: 1600x1800
Total power of the machine: 37 kW
Machine weight: 32000 kg
Machine dimensions L x W x H: 7480 x 6300 x 4800 mm

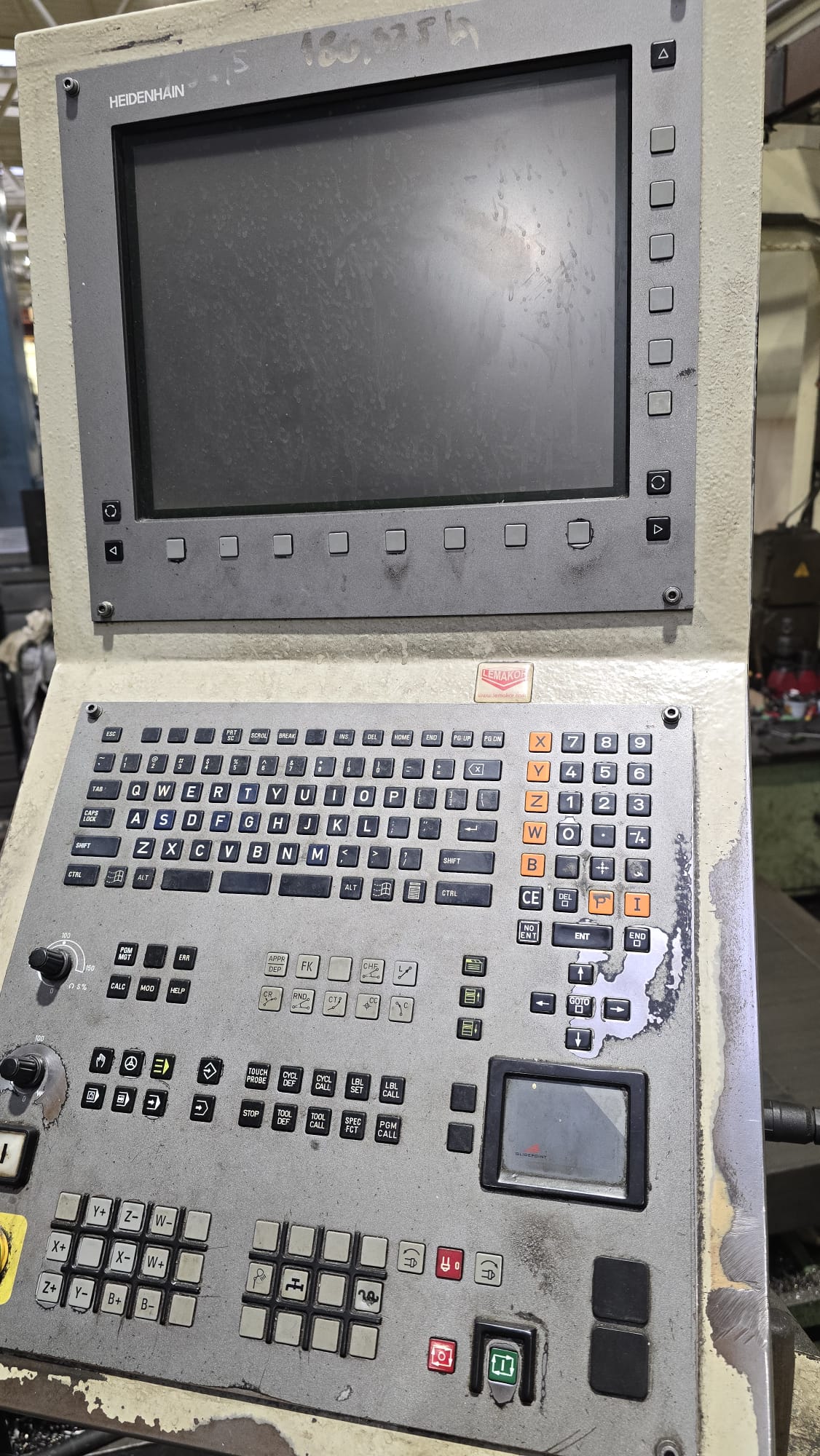

CNC Heidenhain TNC530
