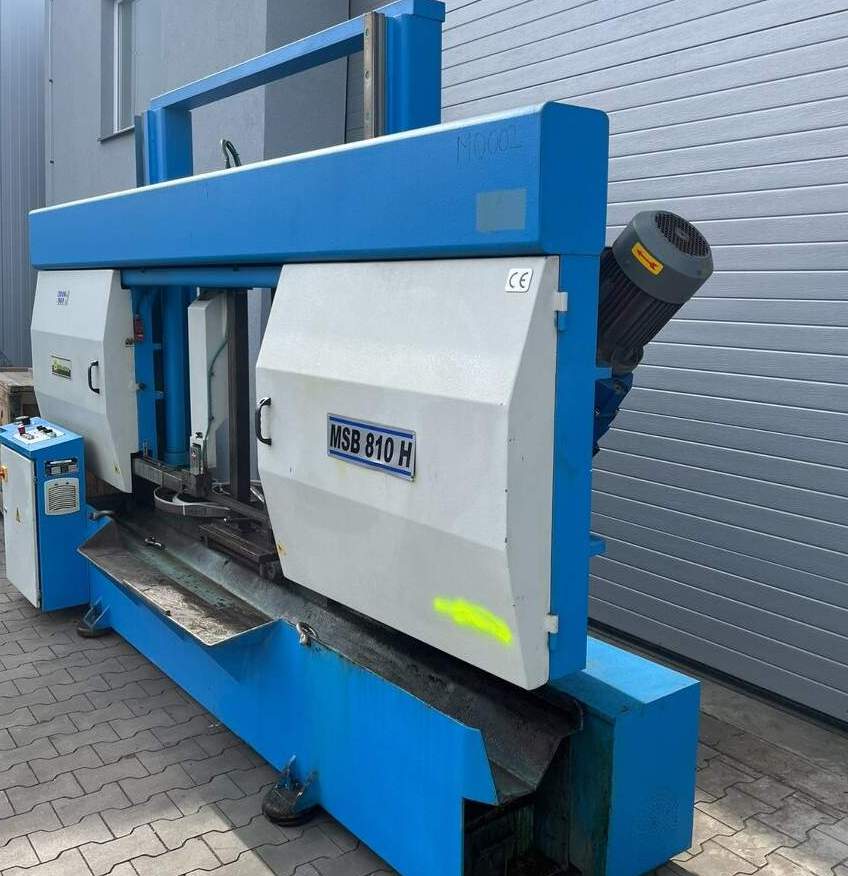

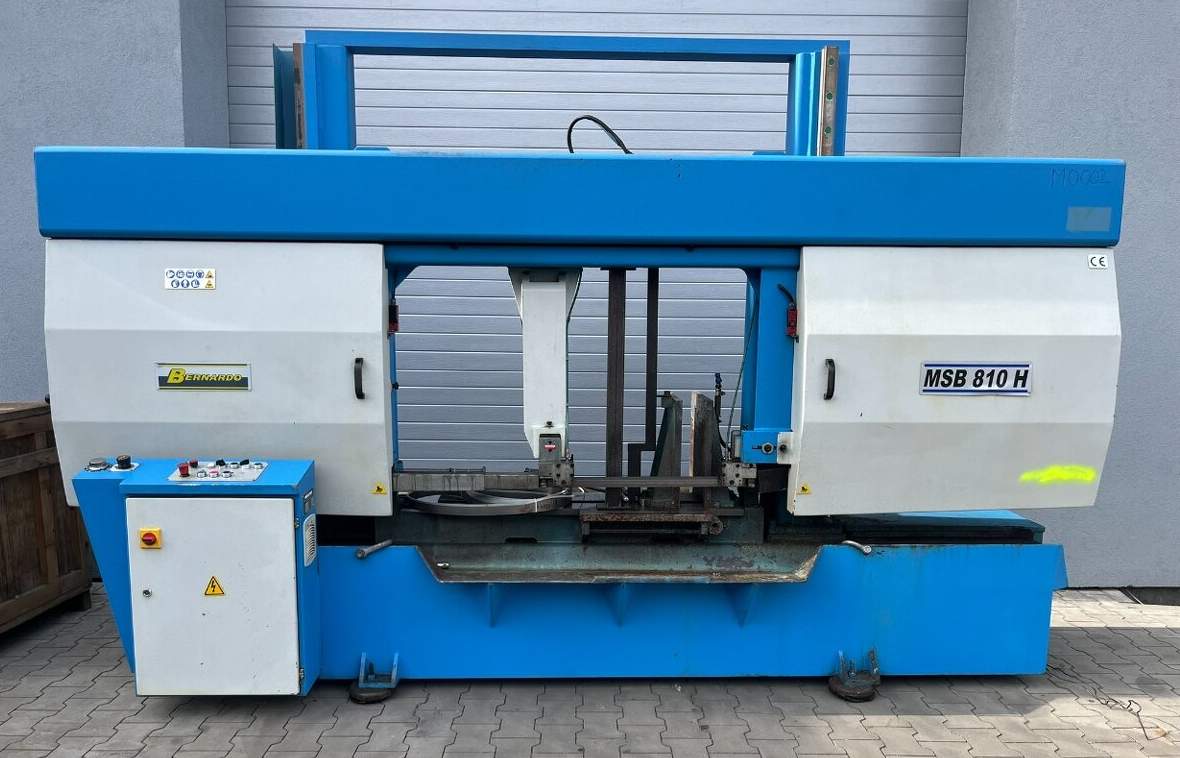

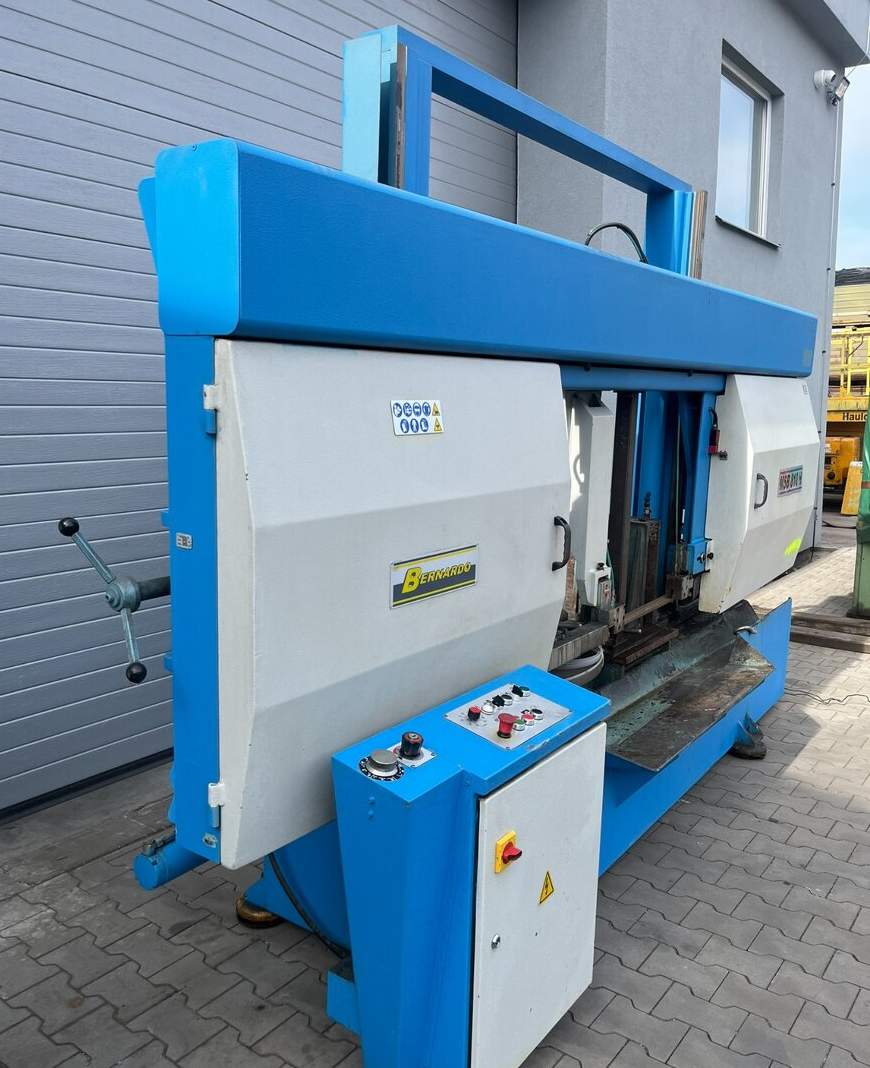

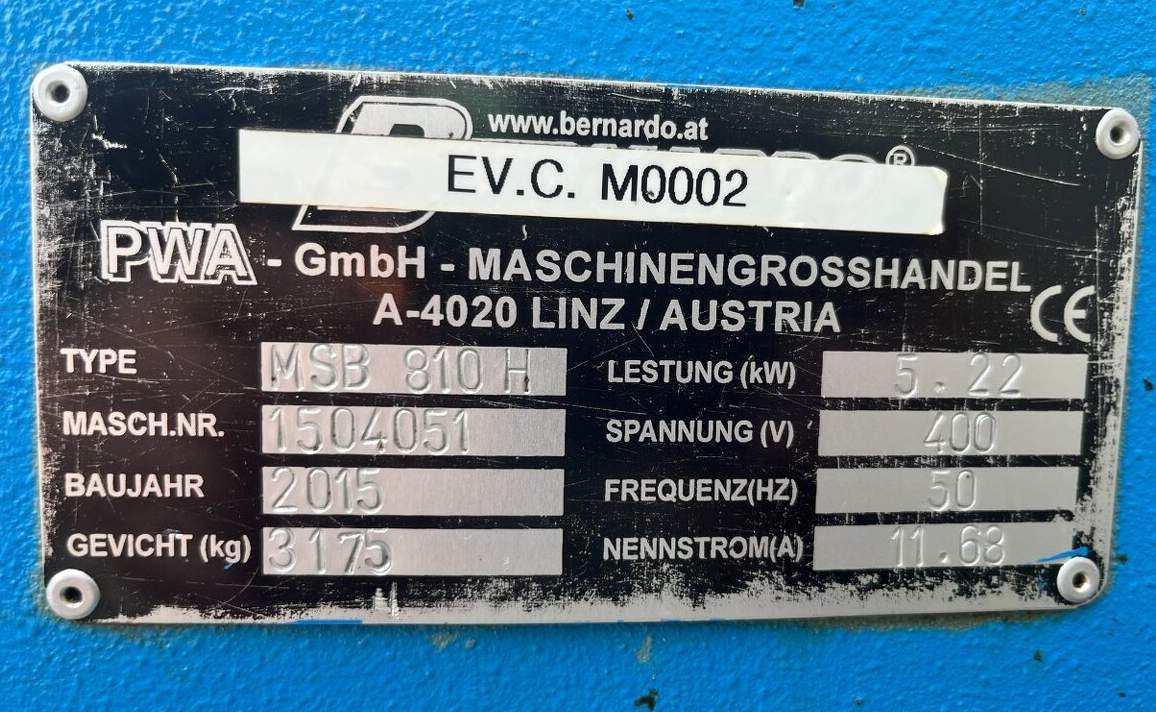

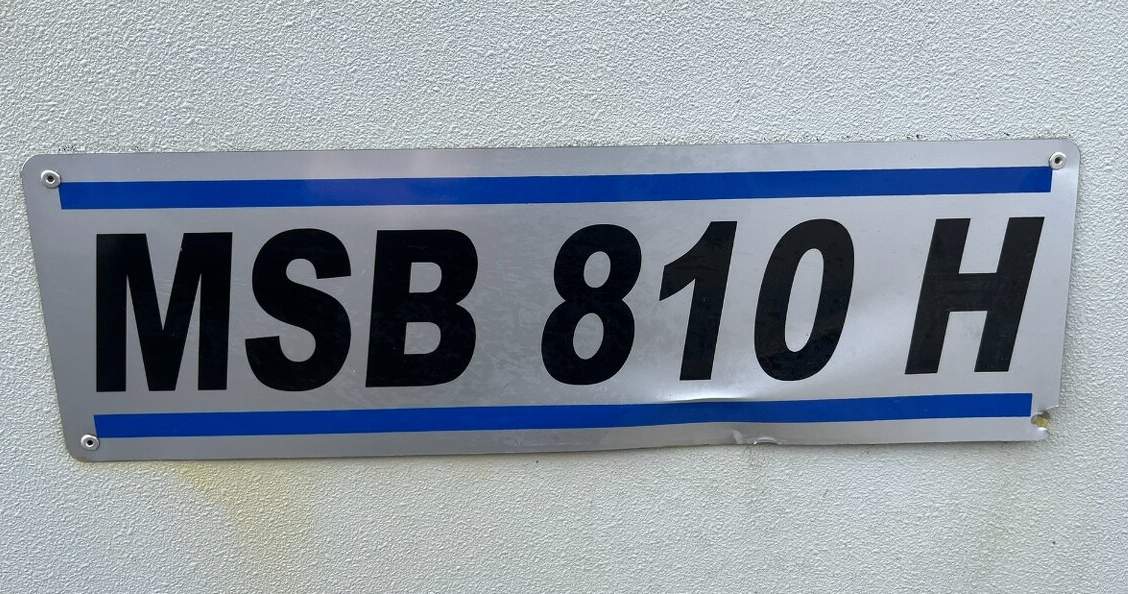

BERNARDO – Semi-automatic metal bandsaw MSB 810 H
Technical specifications
Technical specs
| Cutting capacity round 90° | 810 mm |
| Cutting capacity square 90° | 810 x 810 mm |
| Cutting capacity flat 90° | 850 x 810 mm |
| Cutting capacity round 45° | 480 mm |
| Cutting capacity square 45° | 480 x 480 mm |
| Cutting capacity flat 45° | 480 x 850 mm |
| Working height | 585 mm |

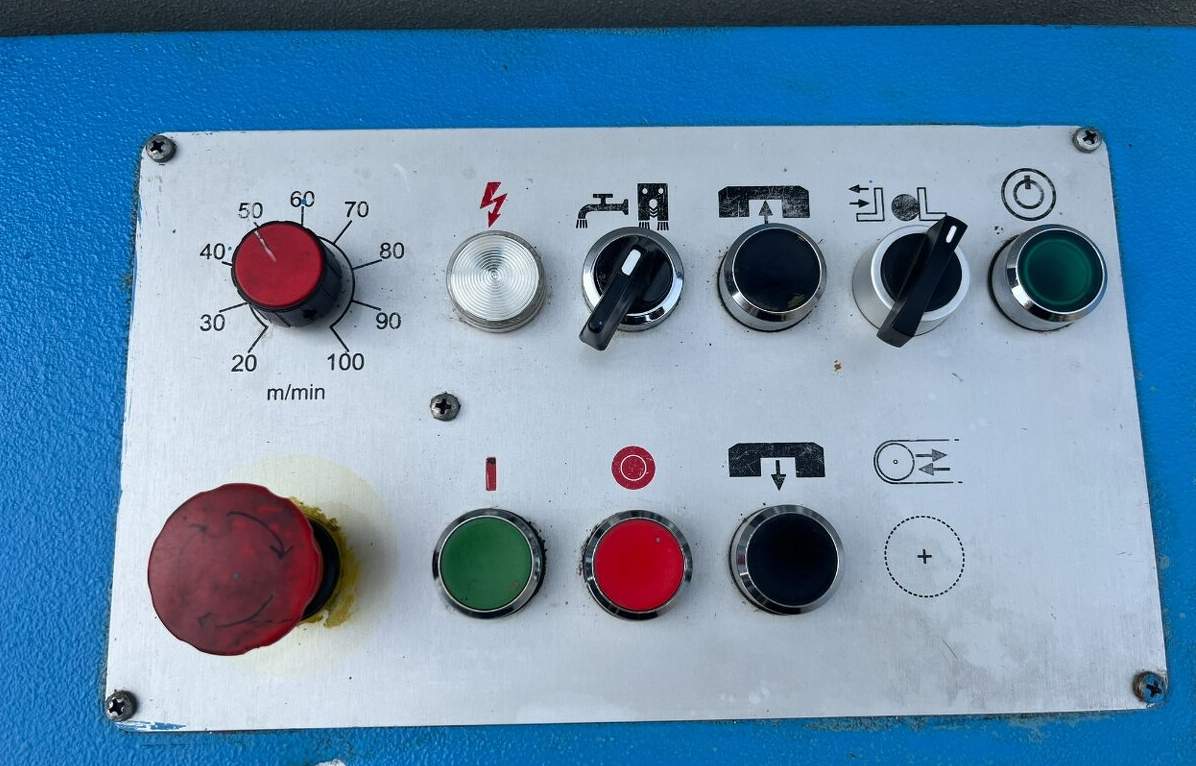

| Cutting speed, stepless | 20 – 100 m/min |
| Bandsaw blade dimensions | 8200 x 41 x 1,3 mm |
| Coolant pump | 120 W |
| Motor power | 4,0 kW |
| Machine dimensions (L x D x H) | 3900 x 1200 x 2350 mm |
| Weight approx. | 3175 kg |
Automatic lifting of the saw frame whith adjustable lifting height when cutting is complete

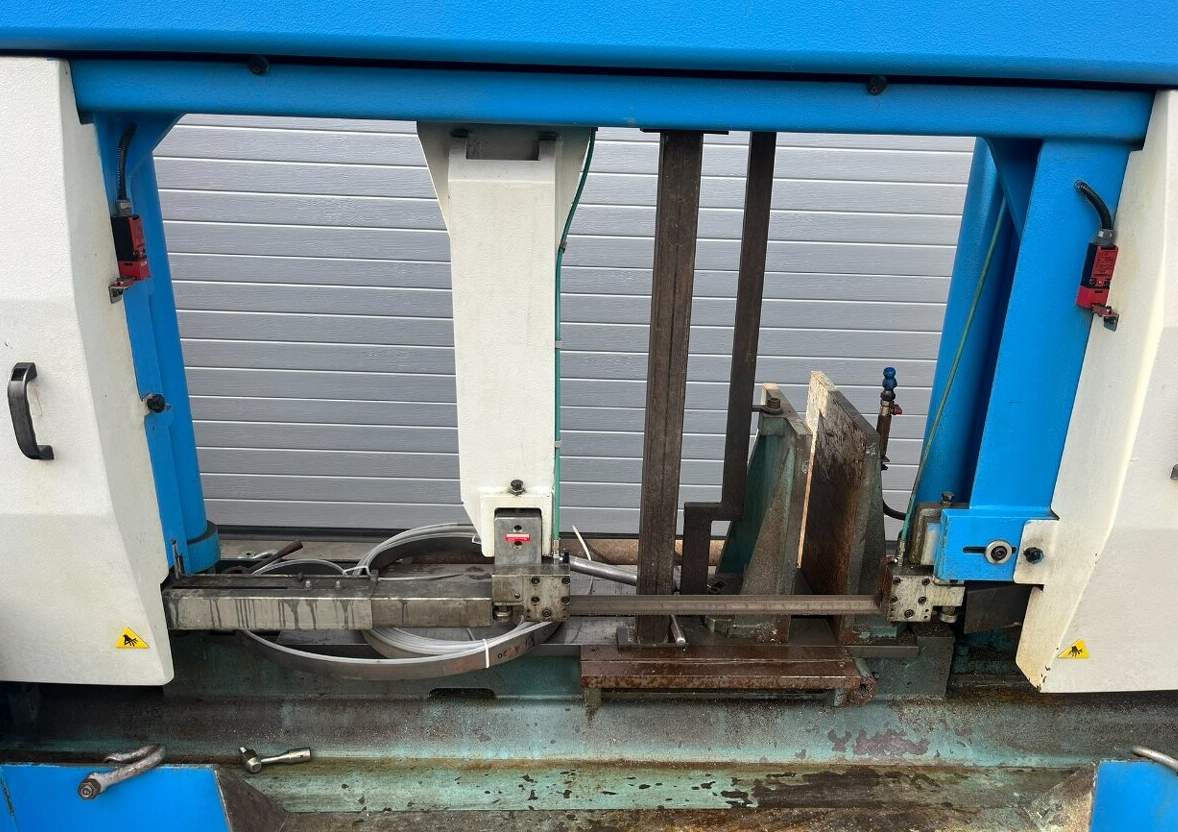

Vice tilts from 90° up to 45° for mitre cutting
Increased stability due to precisely polished linear guide for parallel cuts
Automatic blade break control stops the machine if blade breaks
Automatic shut-down at cutting end

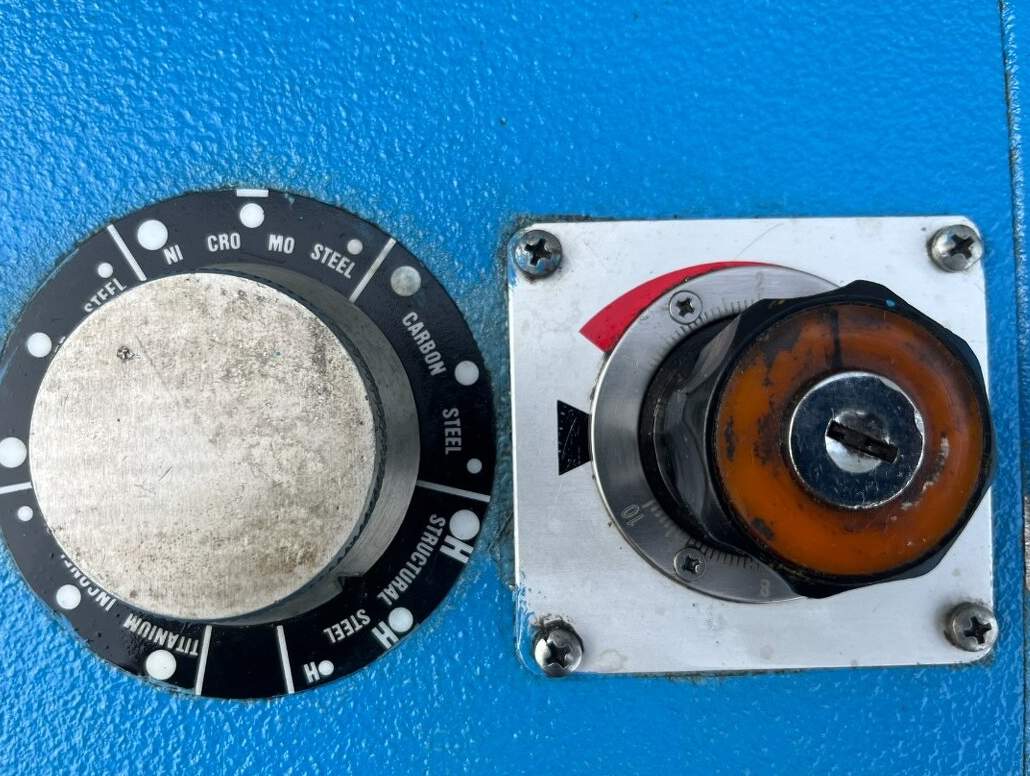

Stepless speed change to allow precise adjustment to each workpiece
Serial roller table for operating with long workpieces
Bandsaw blade guiding features ball bearings and carbide tips

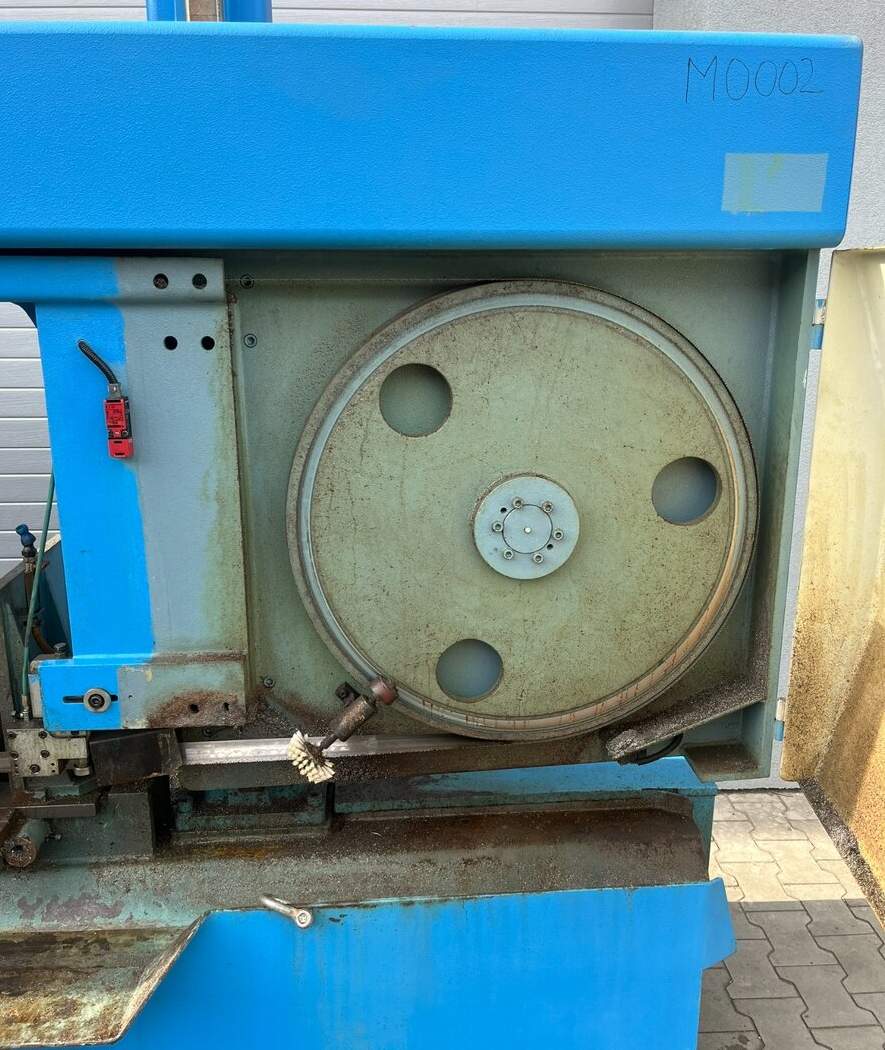

Optimal power transmission to the blade wheel due to the robust gear unit
Torsion-free, strong saw frame for precise cutting
