#06290

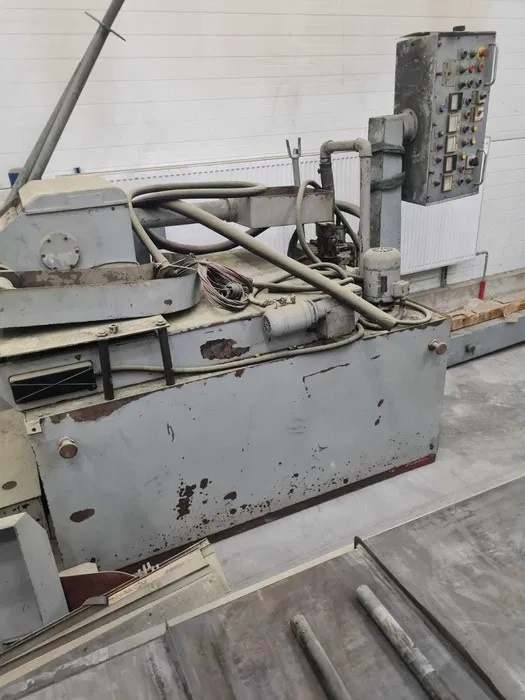

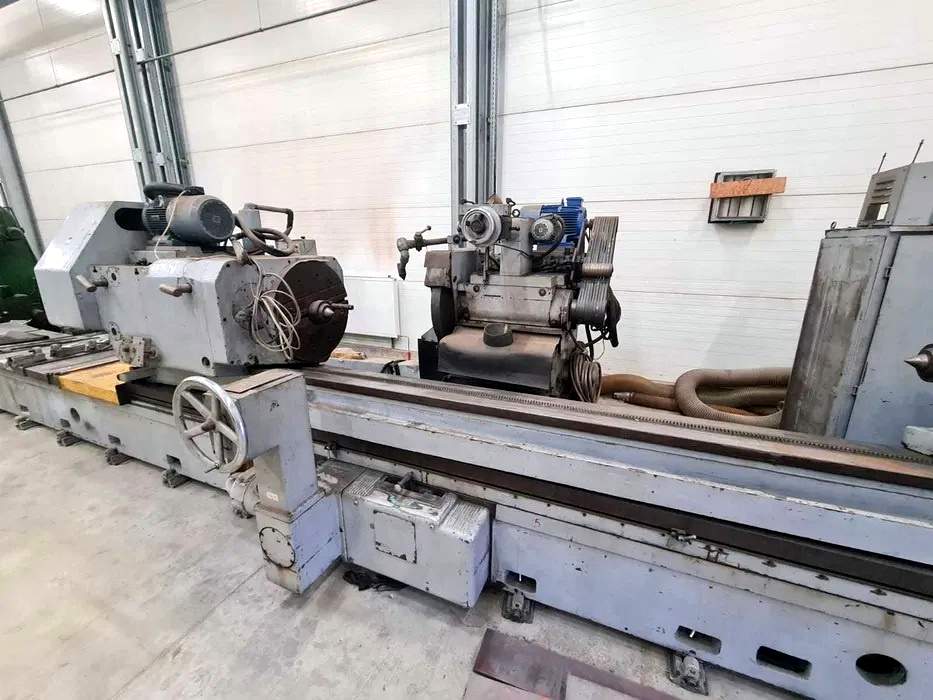

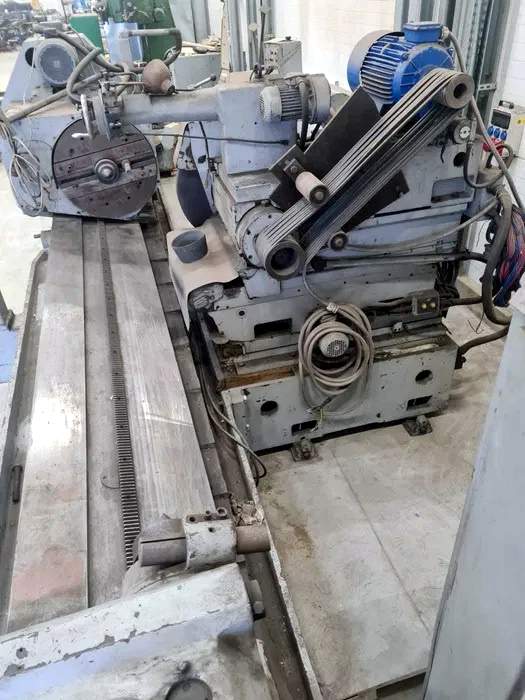

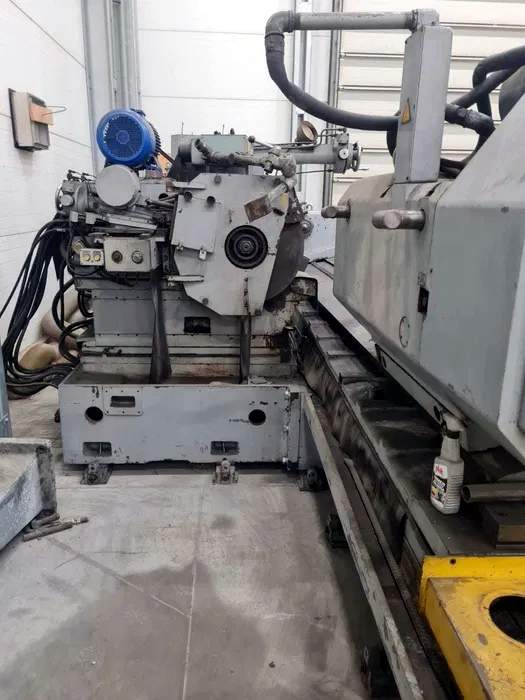

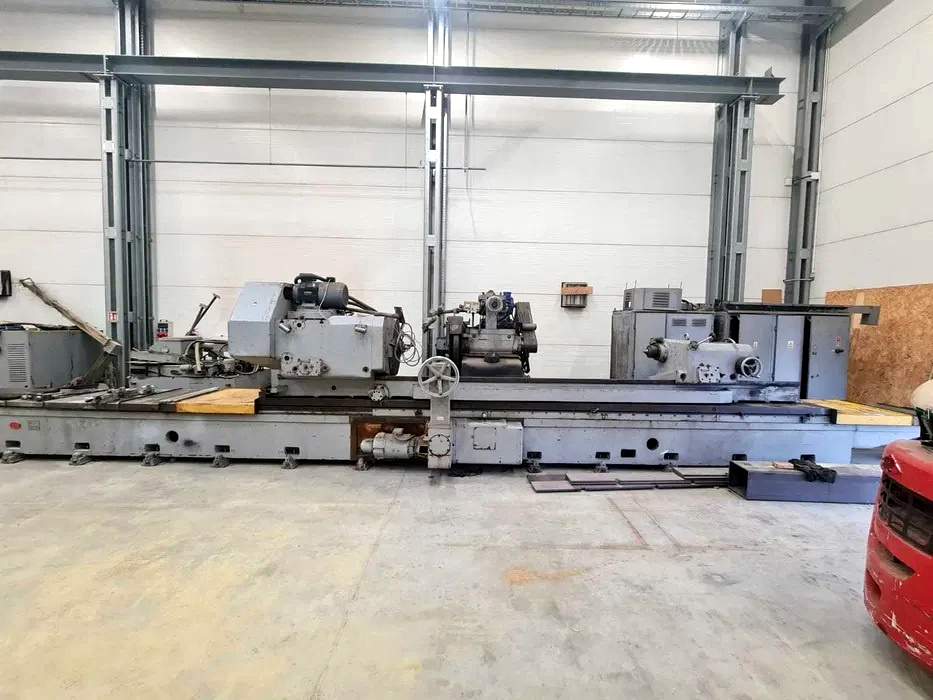

Cylindrical Grinder STANKO 3M196 – 800/4000
Technical specifications
Technical specs
Grinding dia. 80- 800 mm,
Max. length of workpiece 4000 mm,
Max. grinding dia. without support 800 mm,

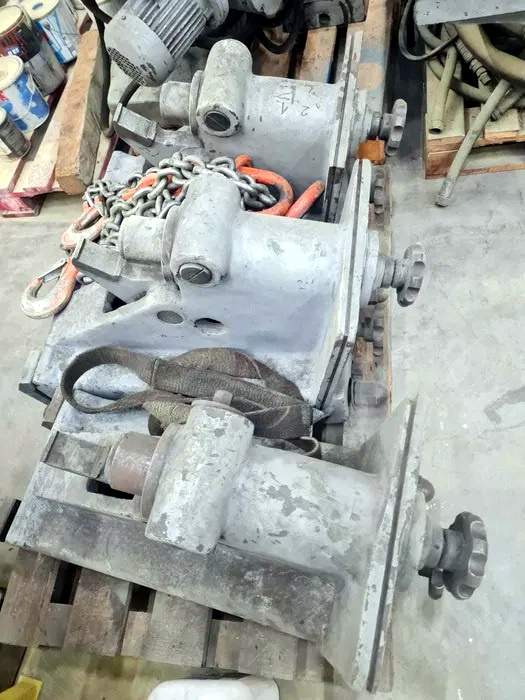

Max. grinding dia. with support 450 mm,
Grinding heads lifting above the table 410 mm,
Max. weight of the workpiece 10000 kg,
Disc dimensions ⌀750 x 100 mm,
Main motor power 30 kW,
Dimensions of the grinder (l x w x h): 13440 × 4180 × 2455 mm,
Machine weight 38700 kg,
