#06287

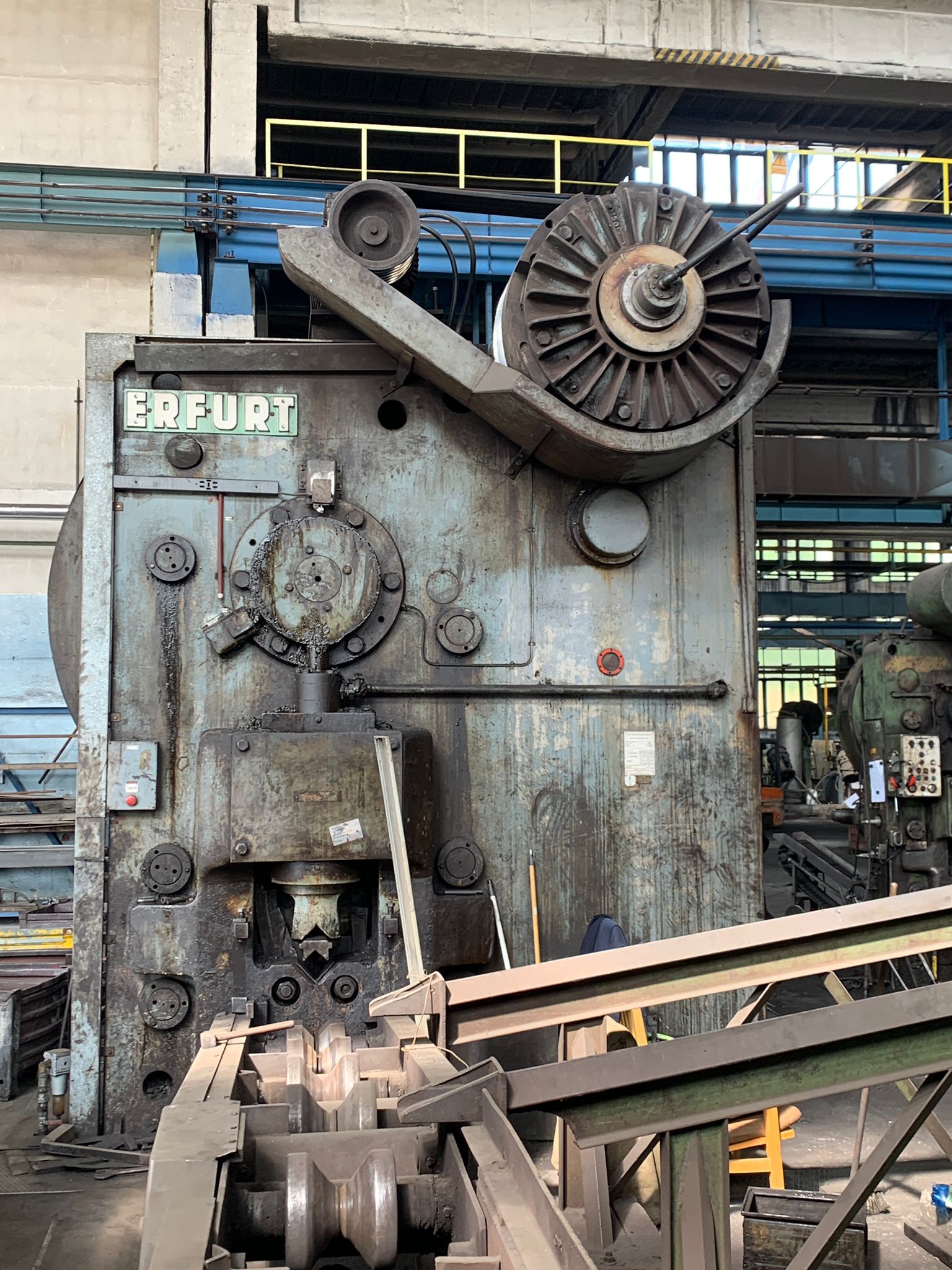

Billet Shear ERFURT ScPKI 1000/480
Technical specifications
Technical specs
Max shearing power: 1000 ton
Max speed: 12/1 min
Stroke: 140 mm
Single stroke: 17/1 min
Square: 180 mm
Max round: 190 mm
Length of blades: 480 mm
Main motor power: 55 kW
Space occupied: 3500x8500x4500 mm
Height above floor: 4500 mm
Weight: 50 ton
