#06418

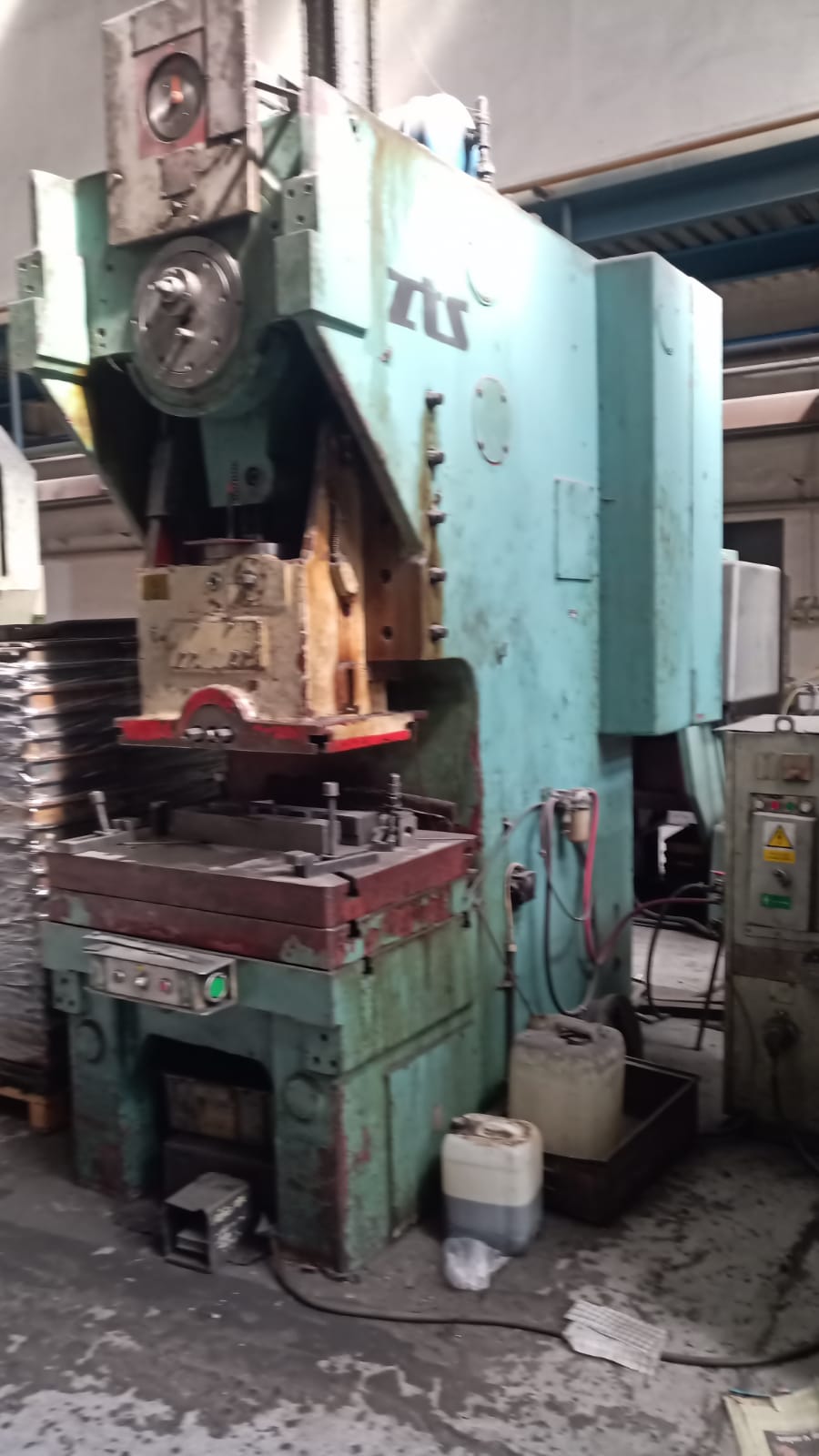

Robust Excentric press ZTS LEK160
Technical specifications
Technical specs
“Nominal forming force: 160 tons (1,600 kN)
Ram stroke: adjustable of 25 to 160 mm
Ram adjustment: 100 mm
Throat depth (reach): 355 mm
Shut height: 455 mm
Press working stroke: 5.3 mm
Table working surface dimensions: 1,000 x 740 mm
Ram dimensions: 710 x 425 mm
Maximum stroke rate: 50/min
Weight: approx. 12,180 kg”
