#05844

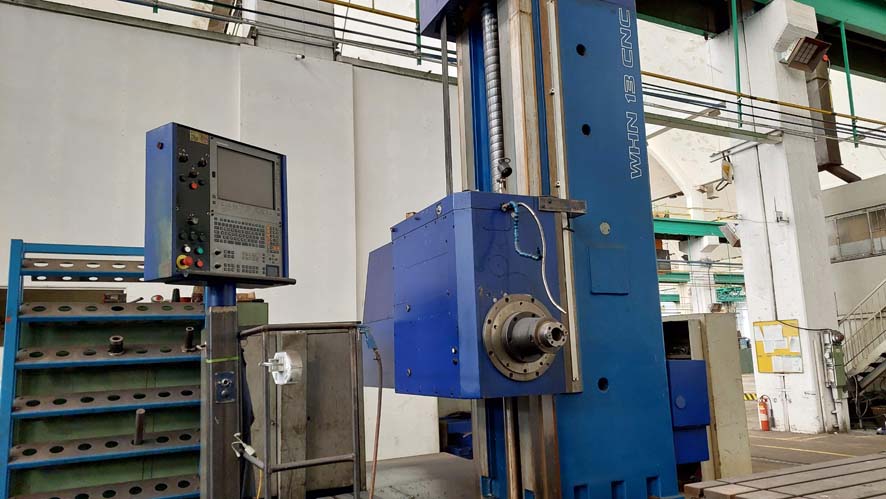

Horizontal Boring Machine TOS WHN 13.8 CNC Heidenhain TNC530
Technical specifications
Technical specs

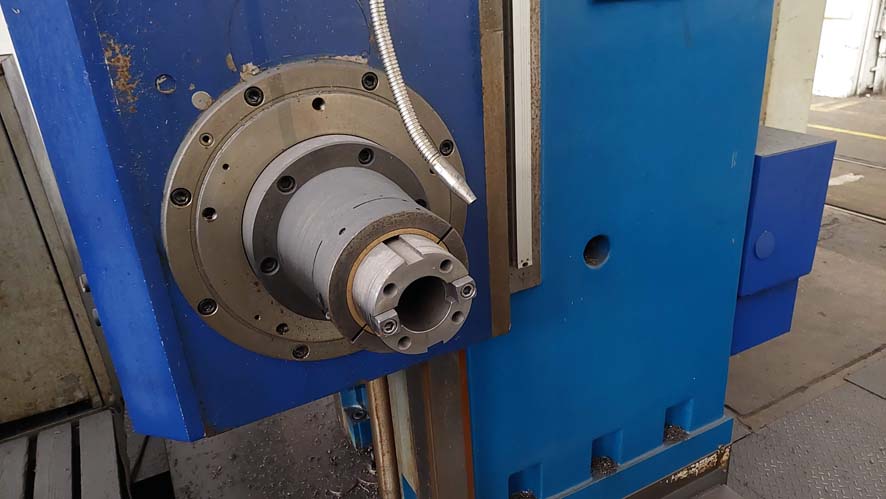

| Spindle dia. | 130 mm |
| Spindle taper | ISO 50 |
| Table area | 2200 x 1800 mm |
| X | 3500 mm |
| Y | 2000 mm |
| W | 800 mm |
| Z | 1250 mm |
| Max. workpiece weight | 12000 kg |
| Machine weight | 36000 kg |

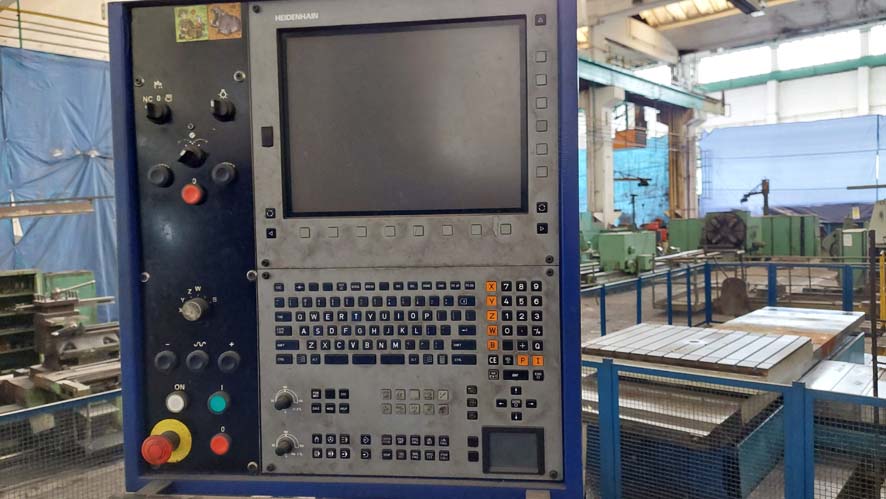

| CNC system Heidenhain TNC530 |
