#05826

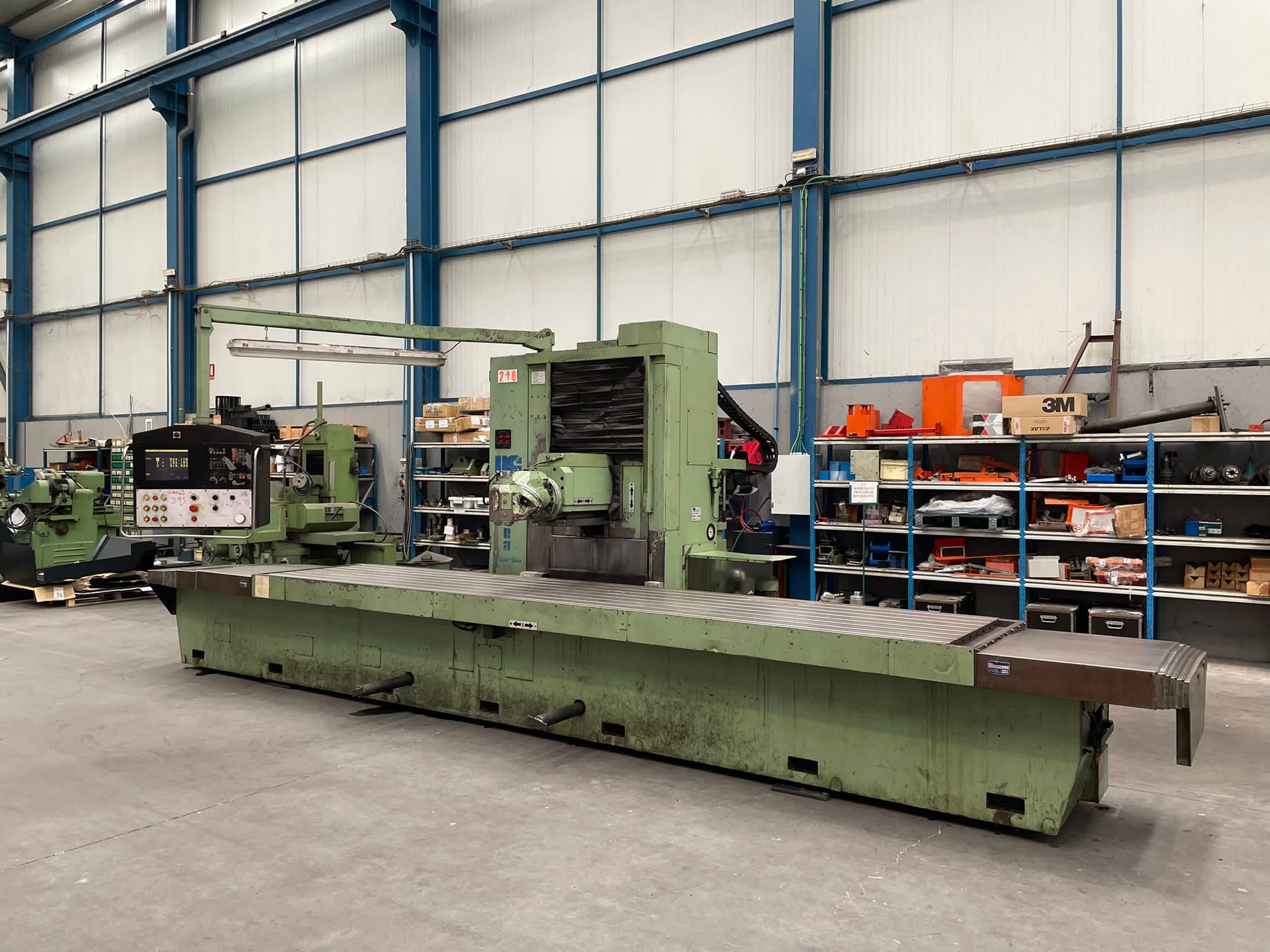

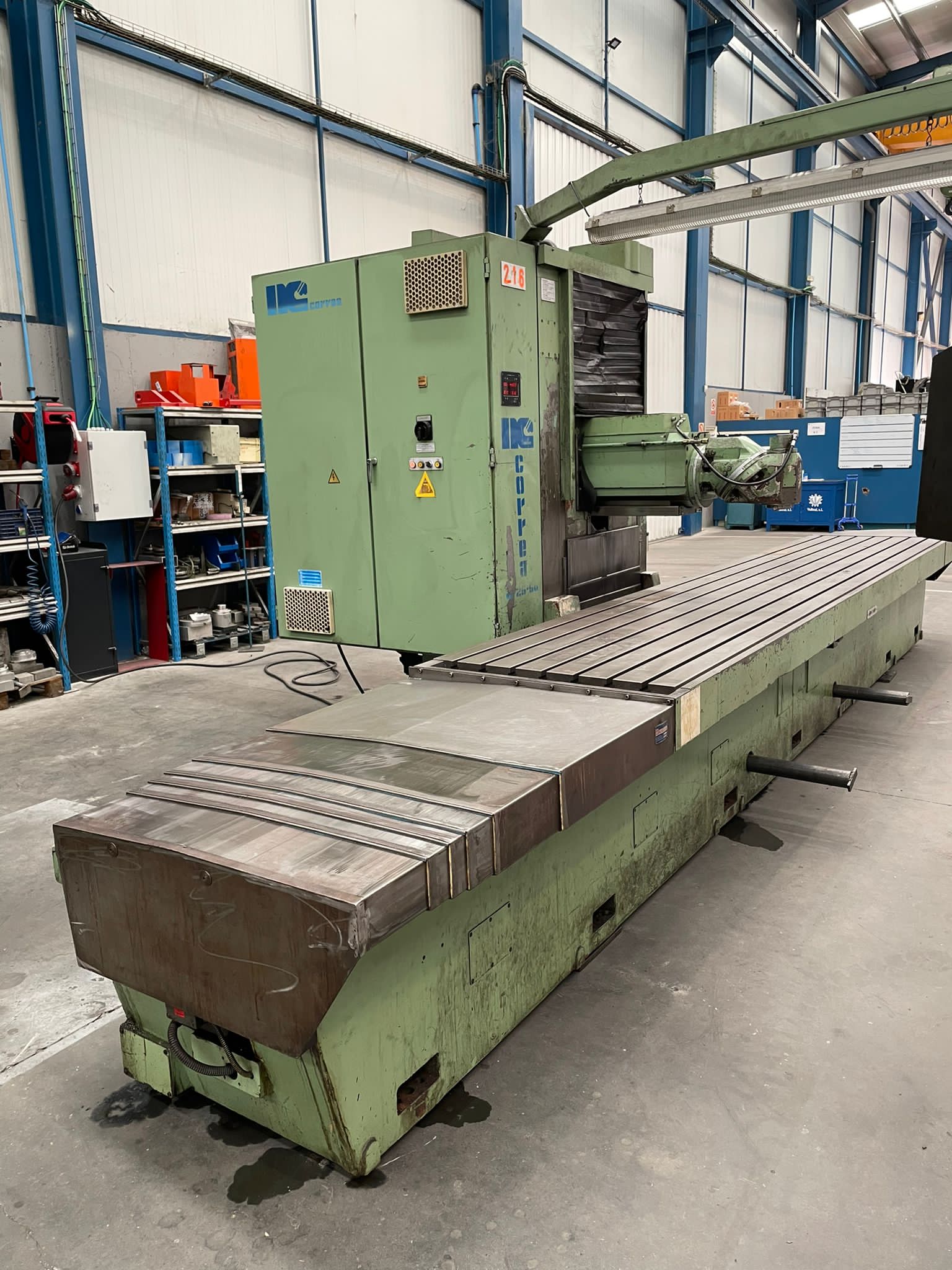

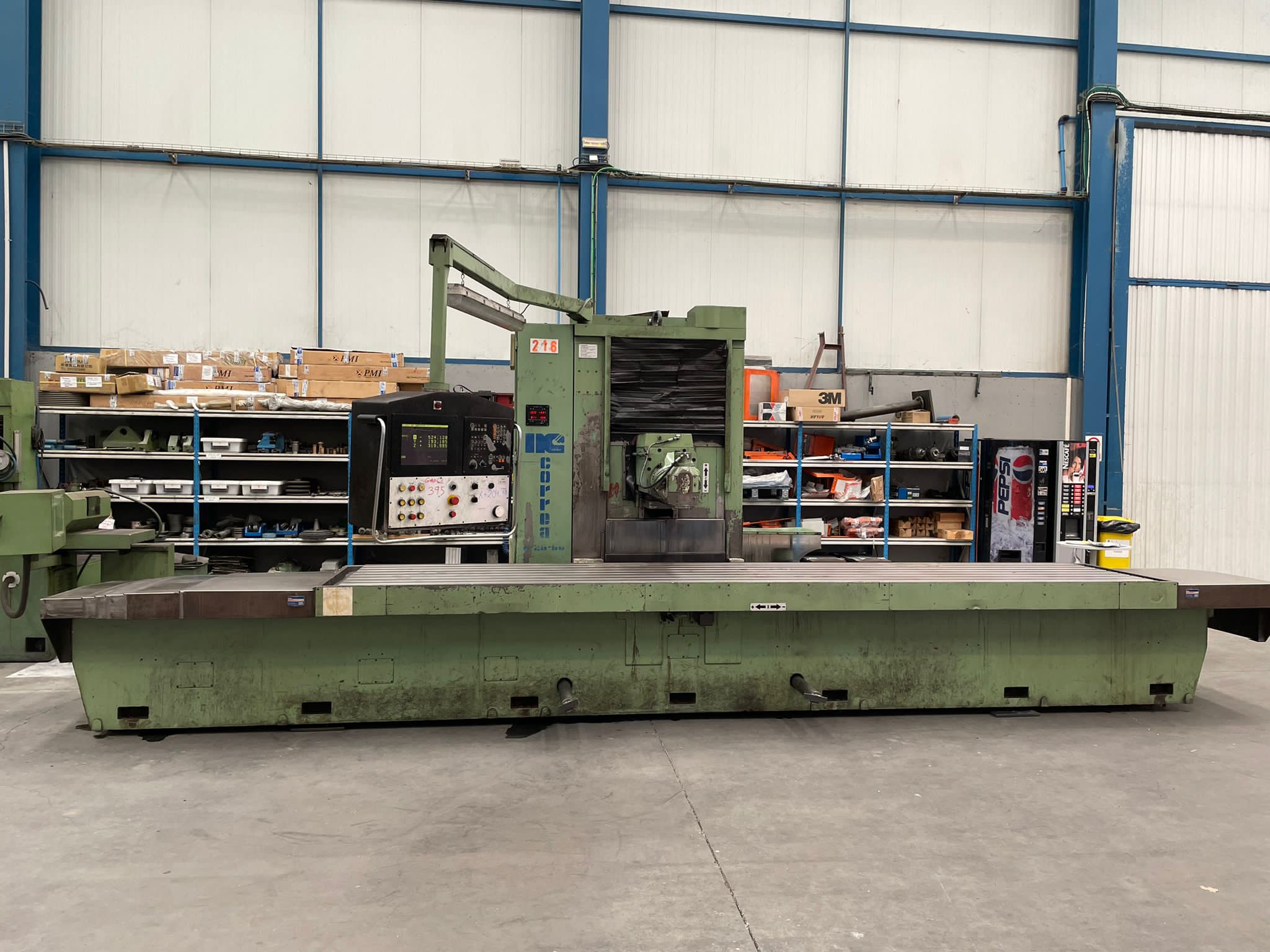

Bed Type Milling machine CNC CORREA A25/50 – CNC HEIDENHAIN 355
Technical specifications
Technical specs
Year: 1992

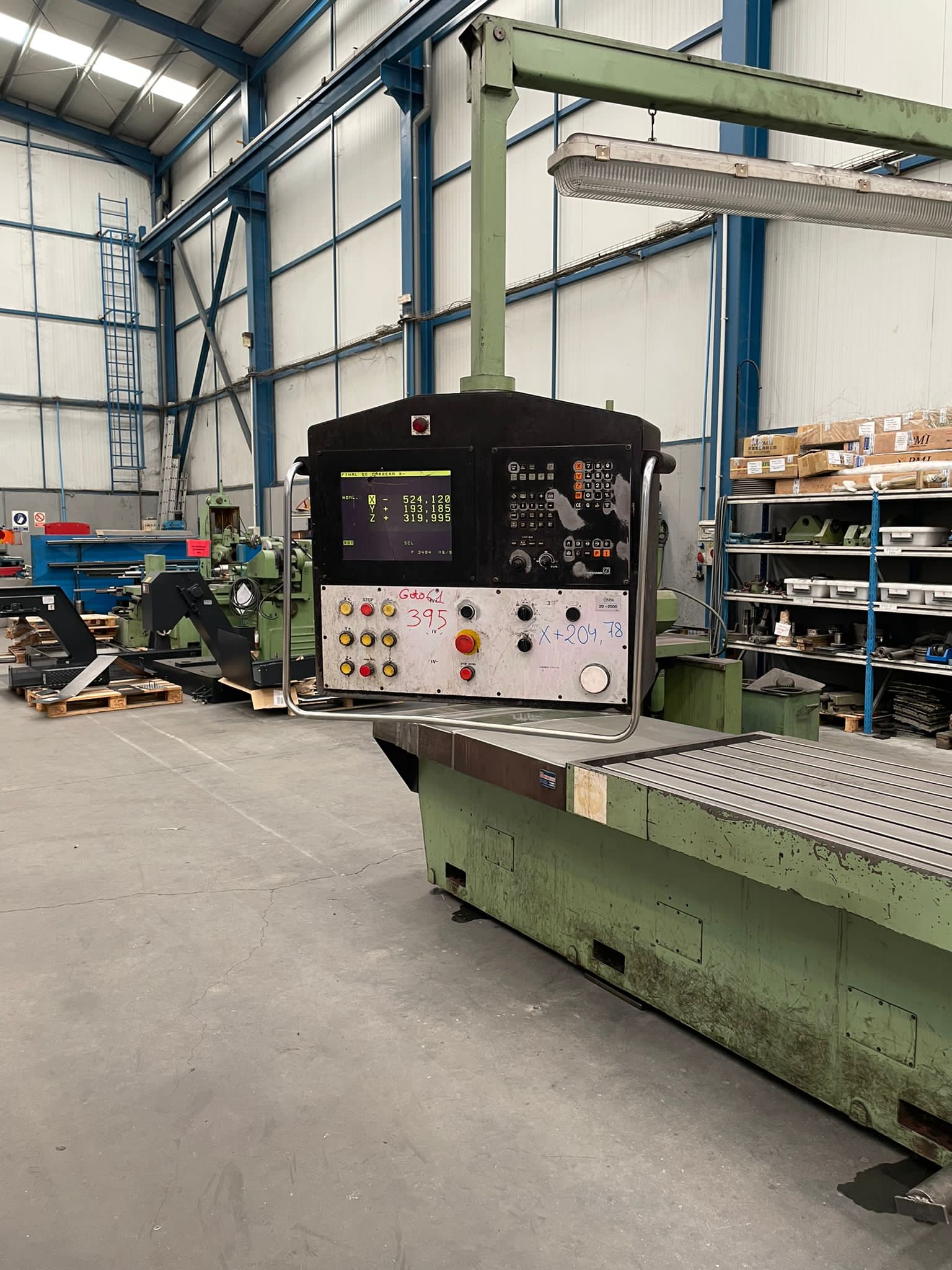

• CNC: Heidenhain 355
• Table: 5000mm x 1000mm
• Workpiece weight: 7000 Kg.
• X/axis: 5000mm
• Y/axis: 1200mm
• Z/axis: 1000mm
• Head tilt: 2 X 360º MANUAL
• Spindle: ISO 50
• Speed: 40 - 2000 R.P.M.
• Rapid feed: 5000MM/MIN
• Number of grooves: 7 x 22mm x 125mm (dist.)
• Hydraulic clamping

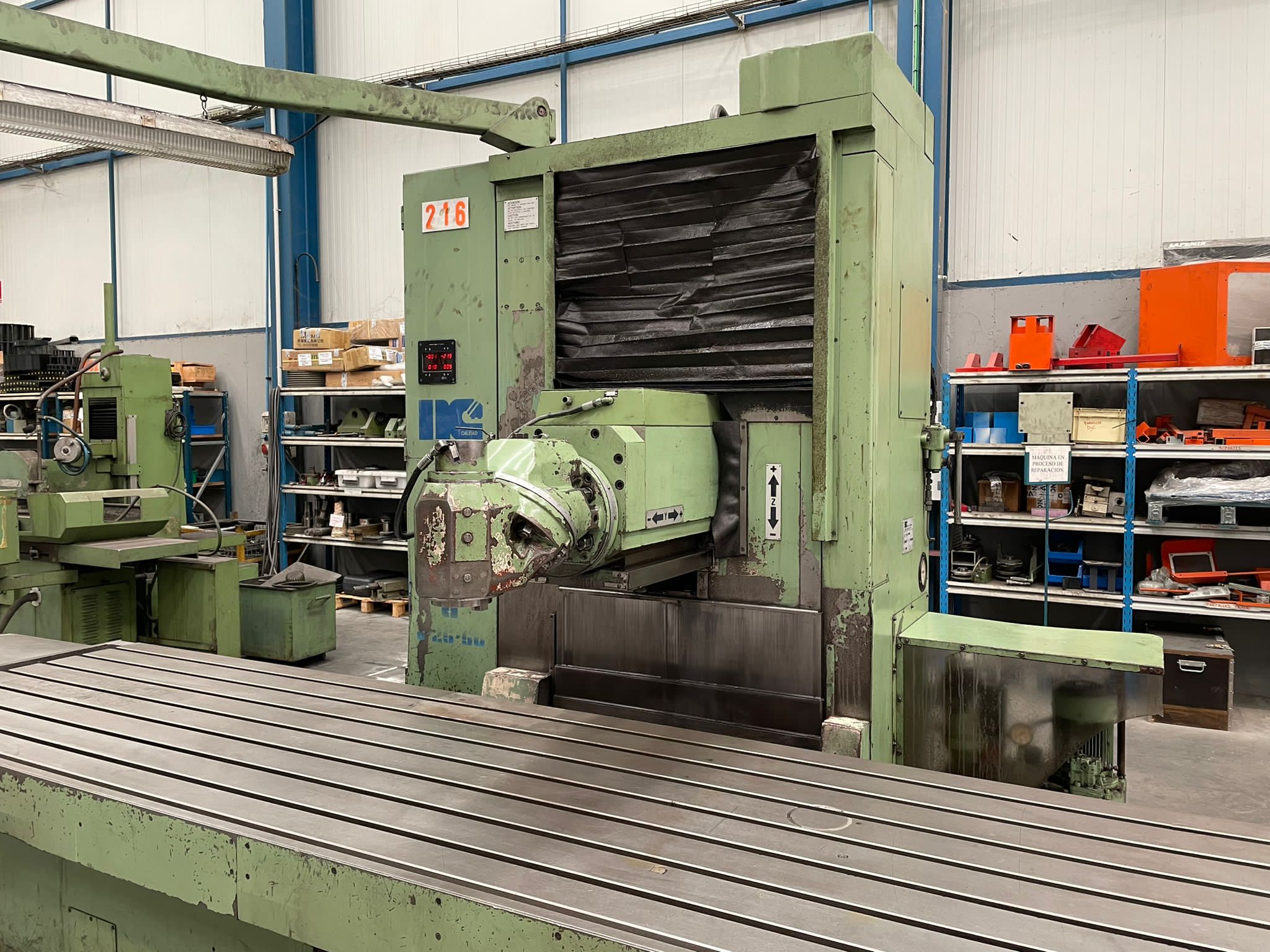

• CORREA U-25 head
• Engine: 25CV/HP
• Weight: 22 Tn.
