#06031

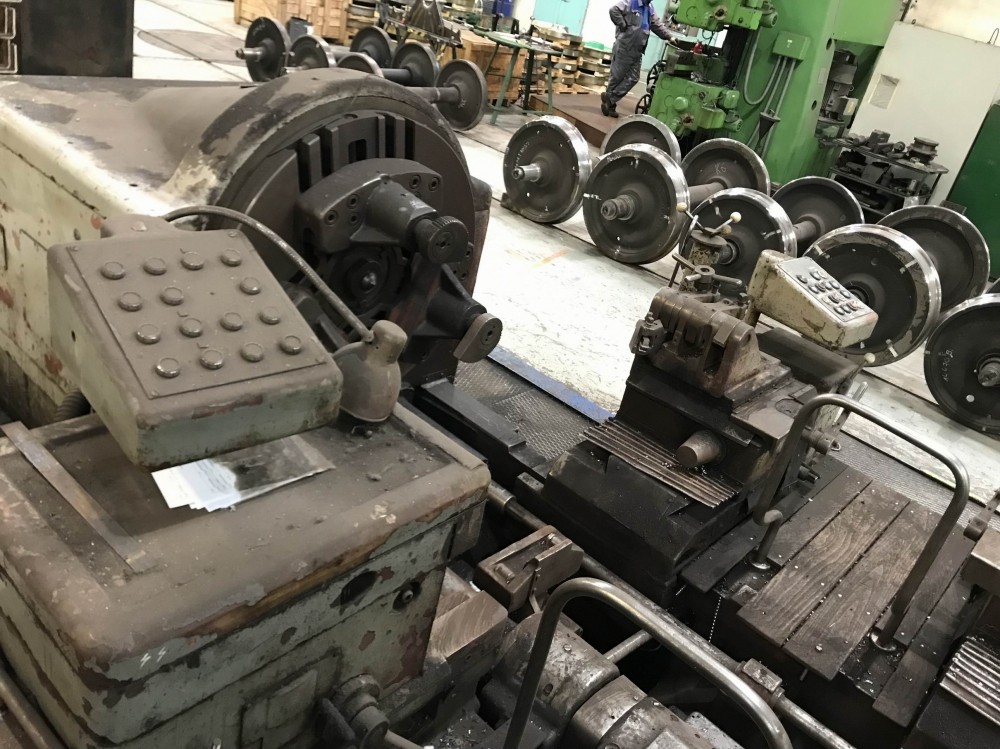

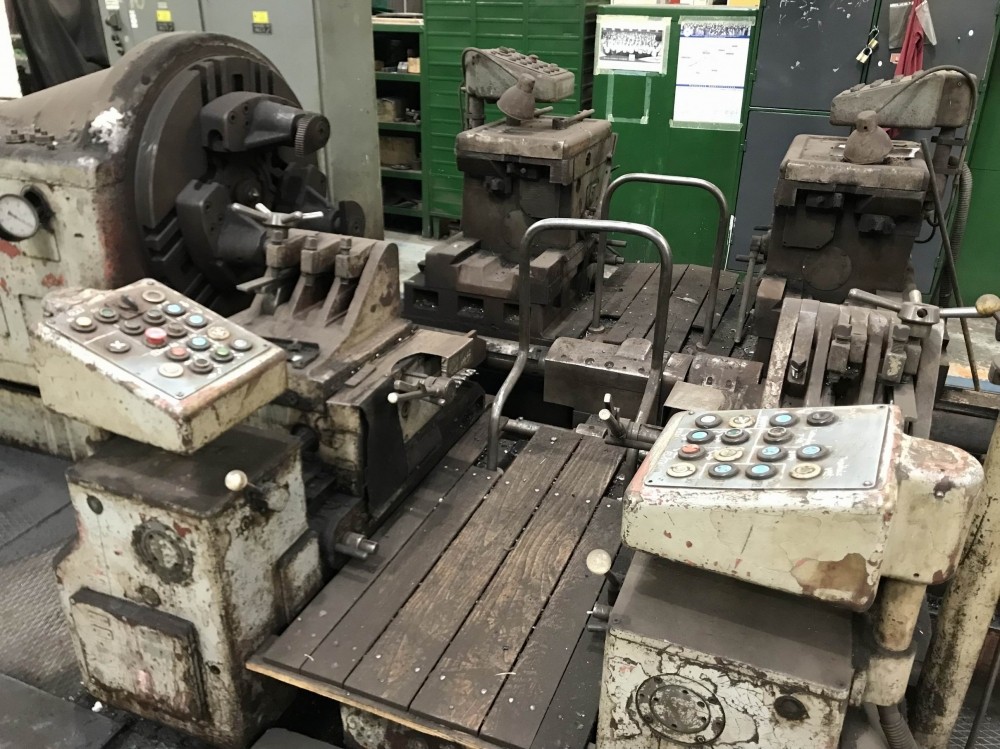

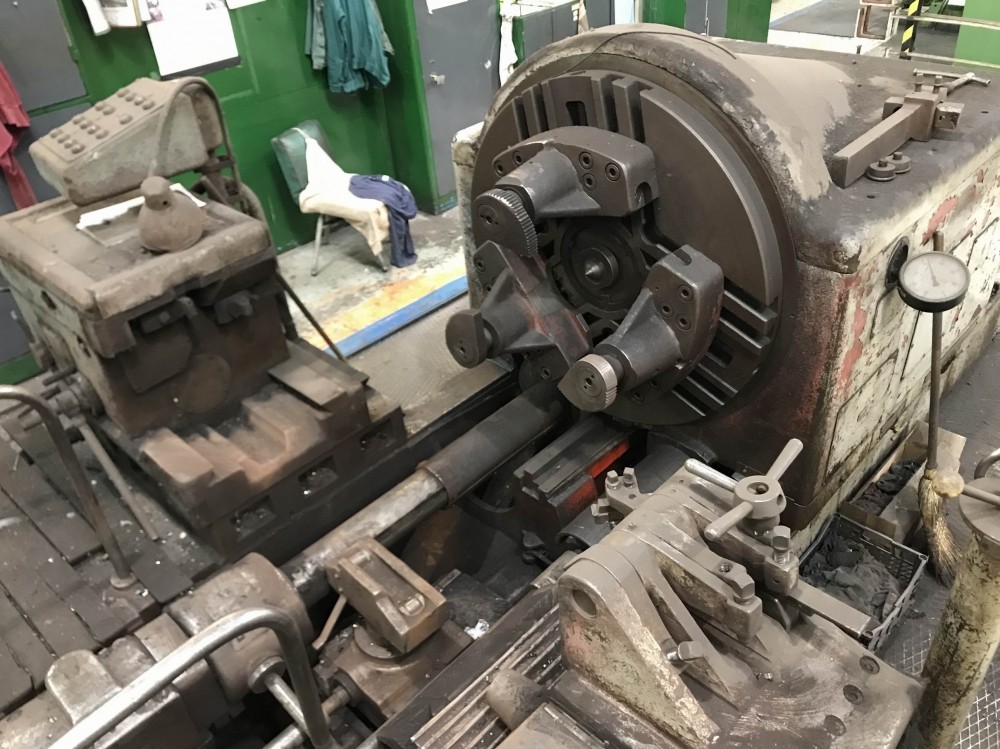

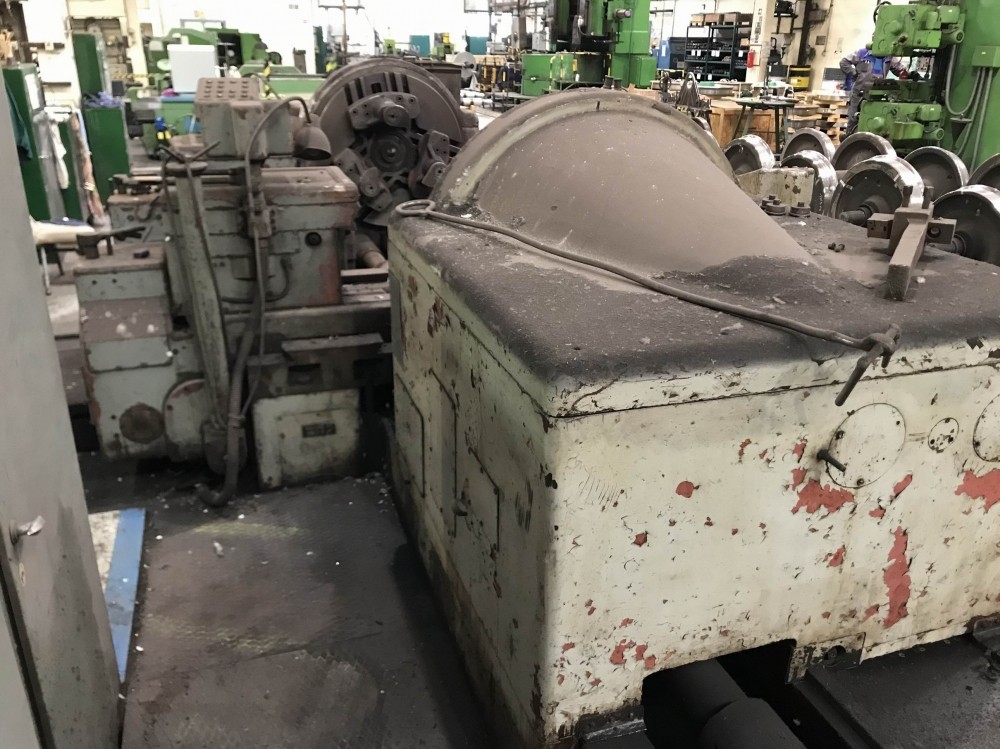

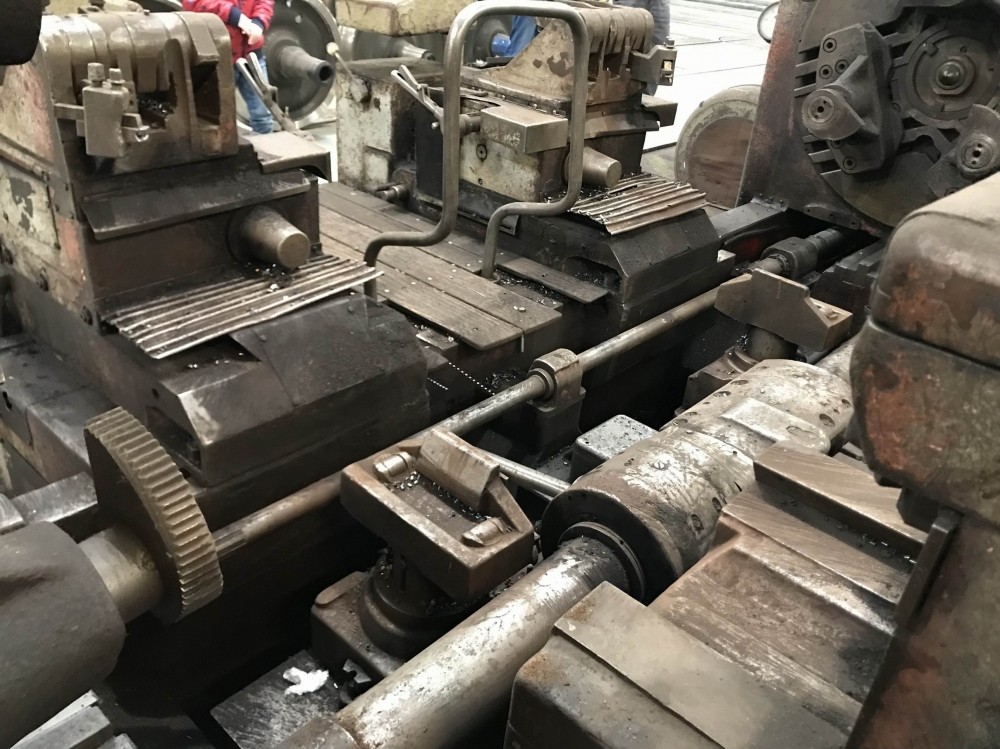

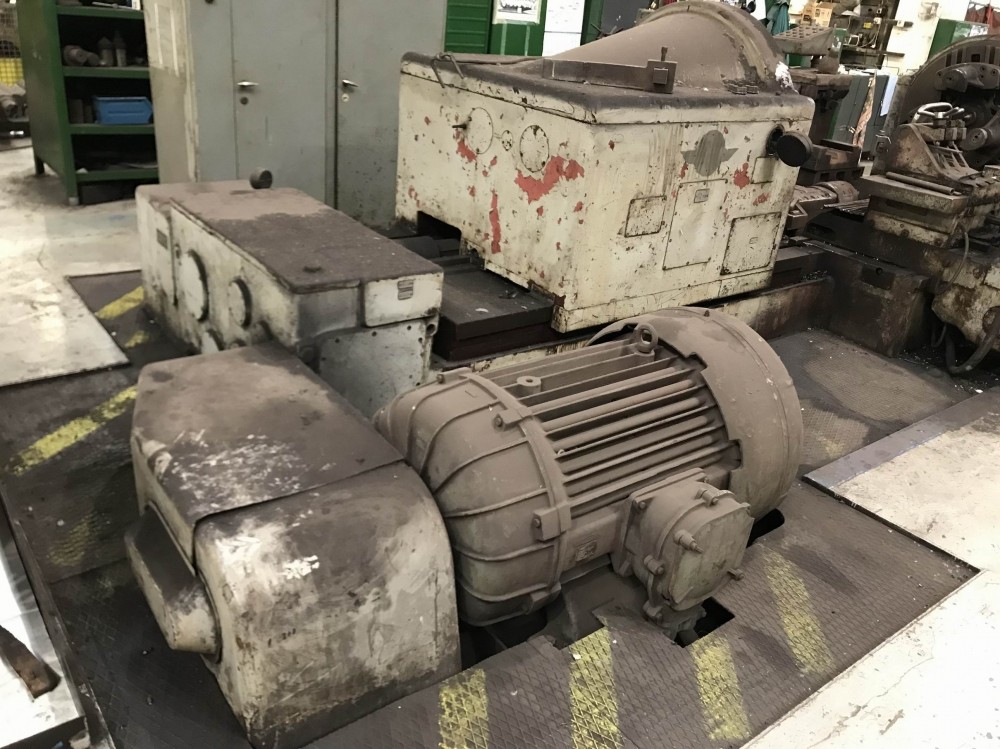

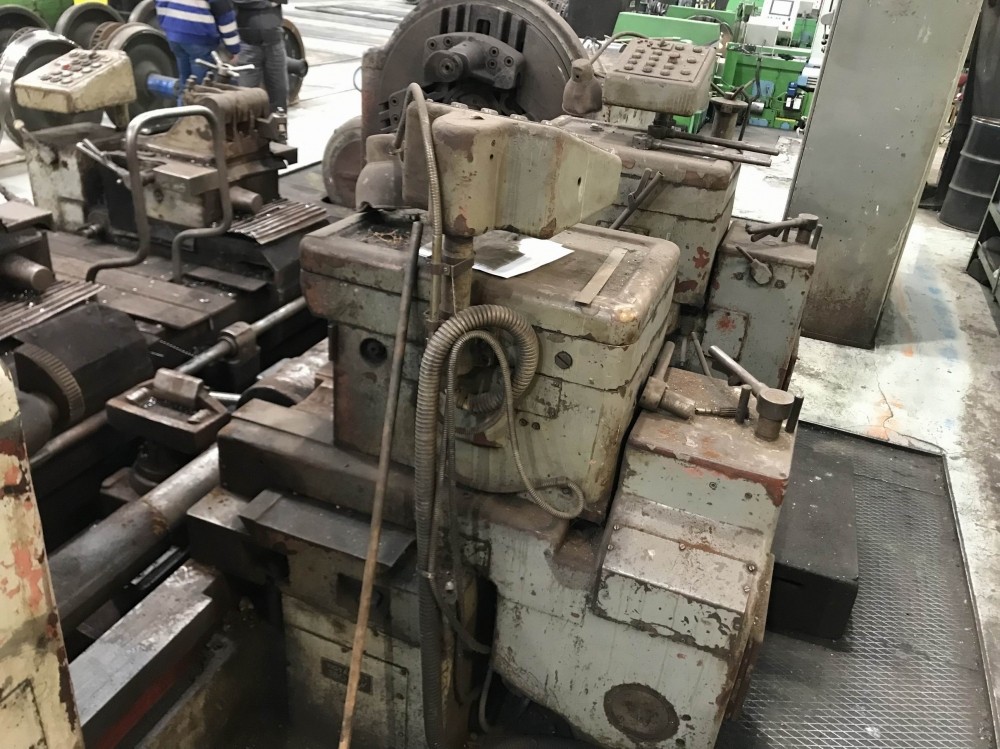

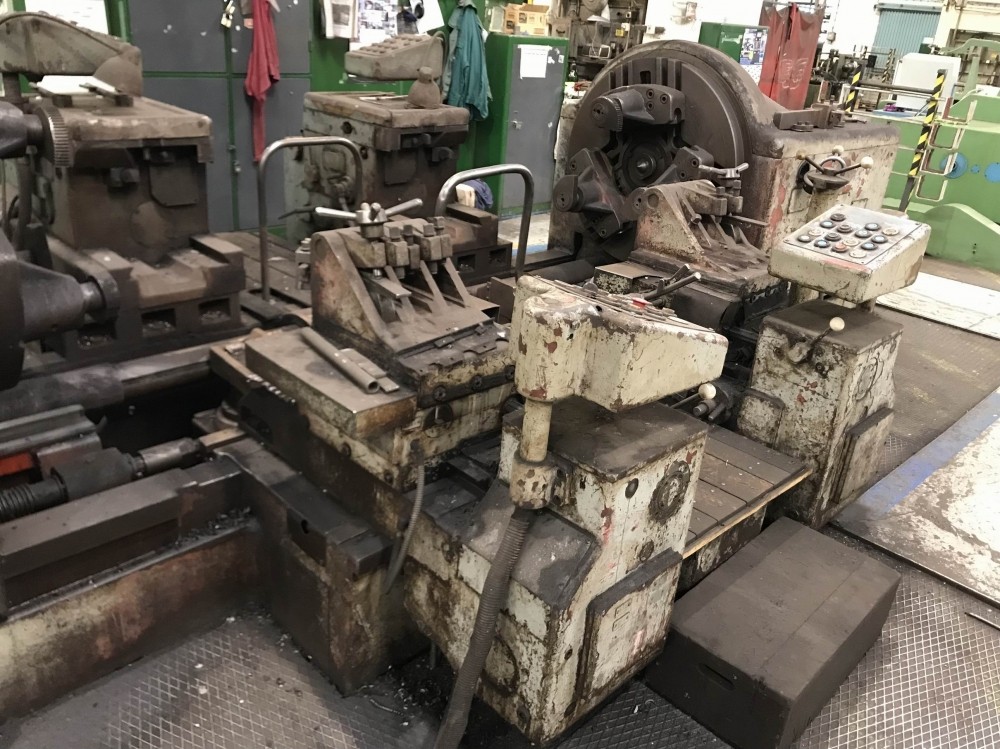

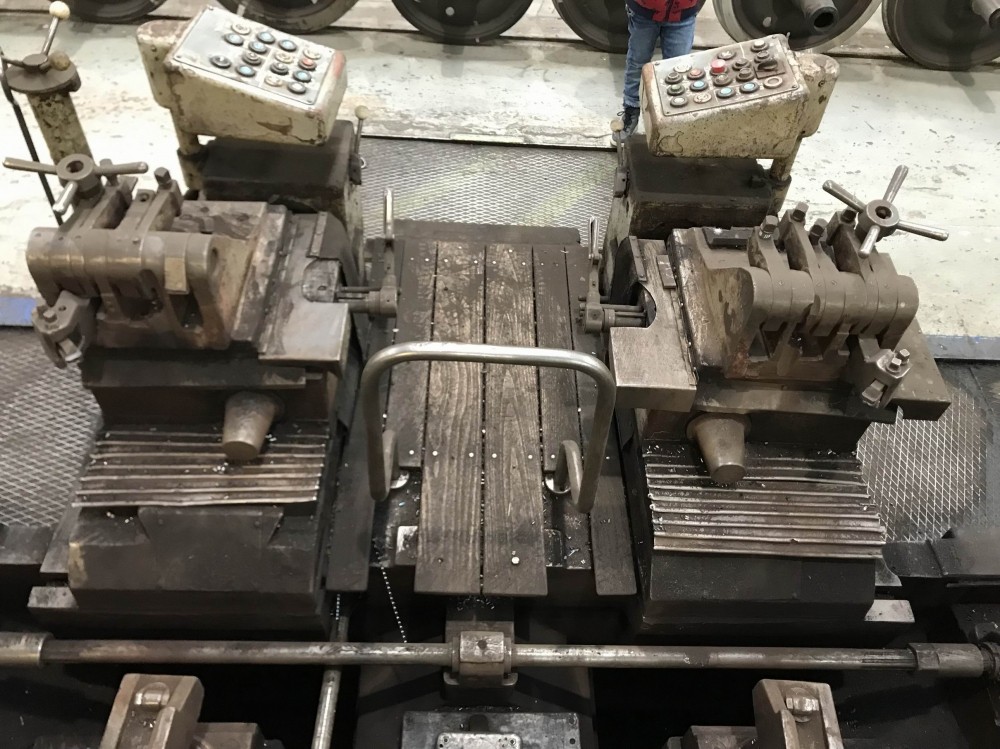

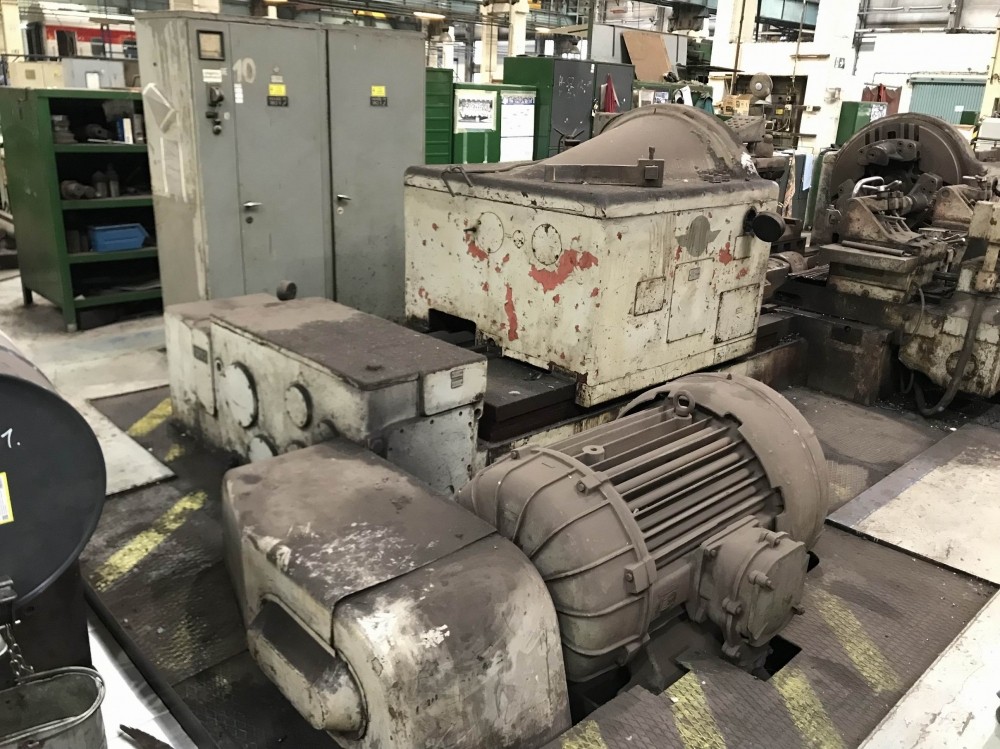

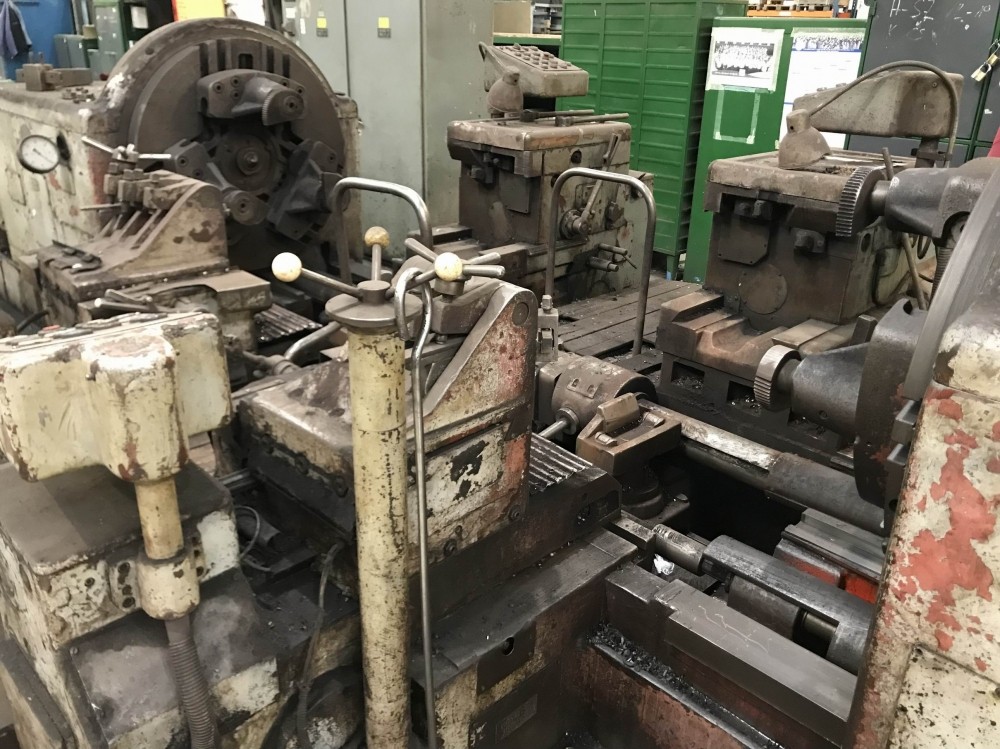

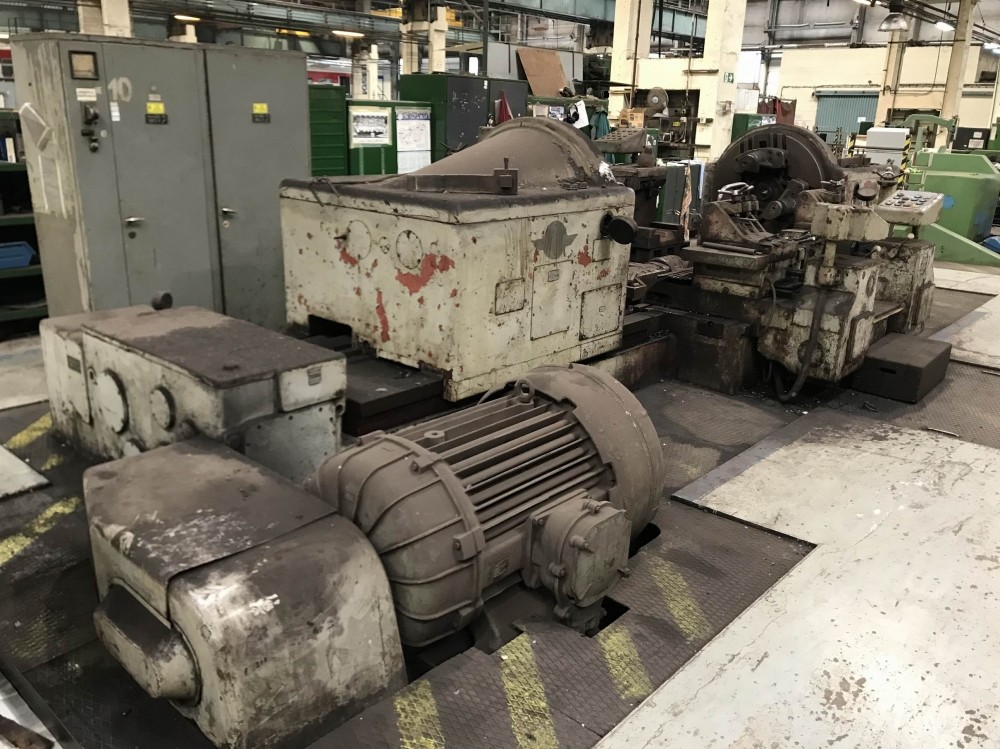

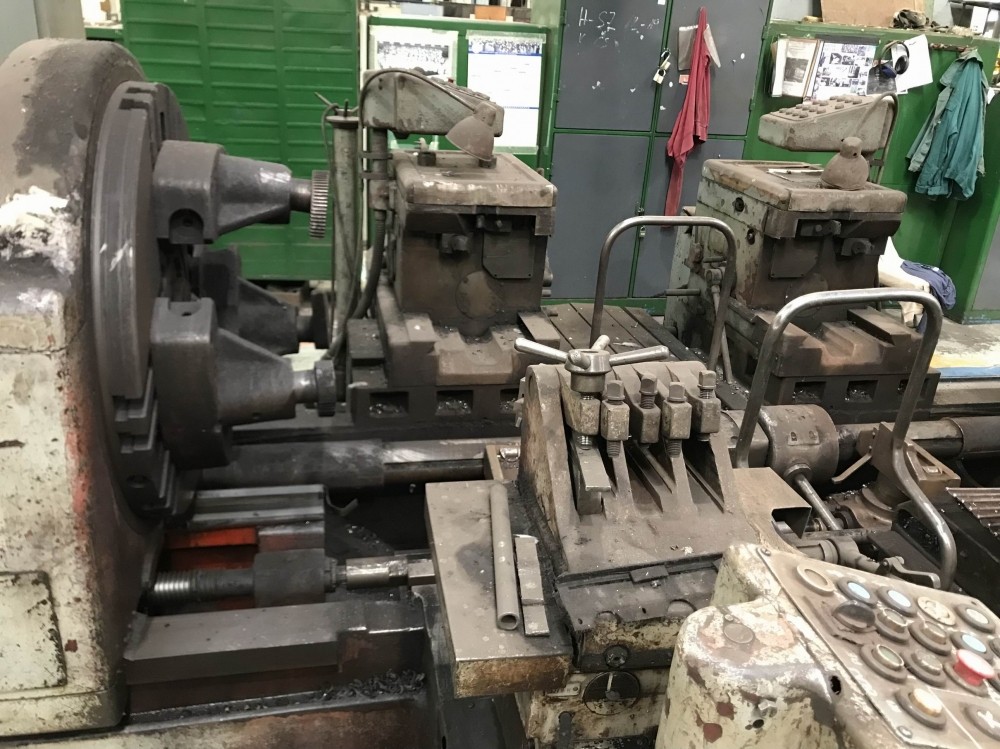

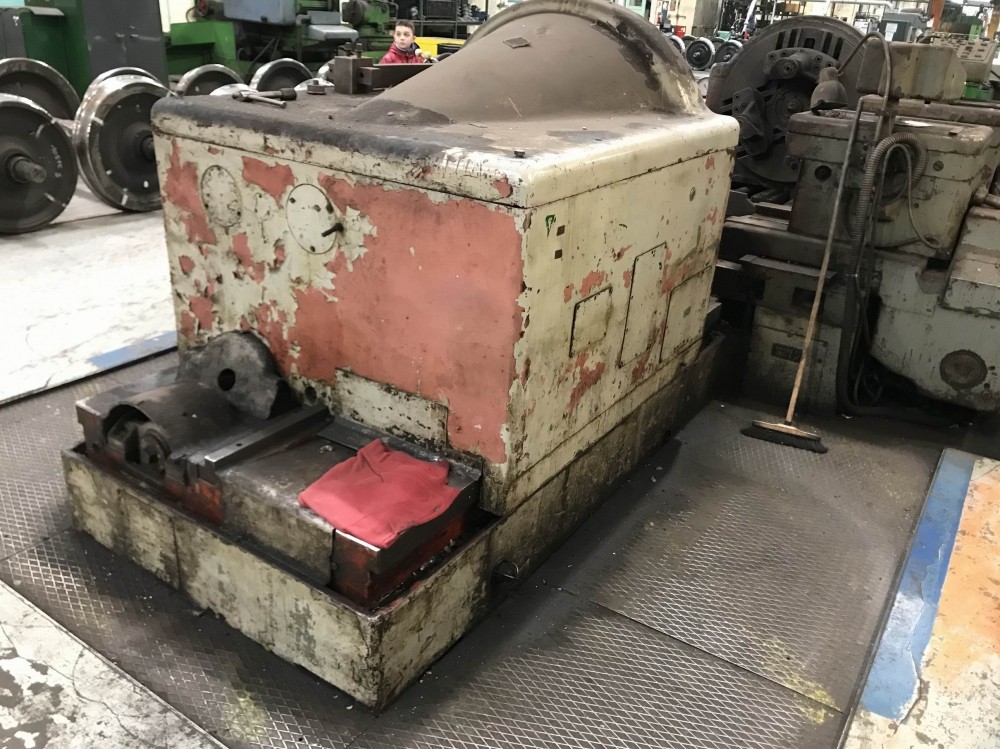

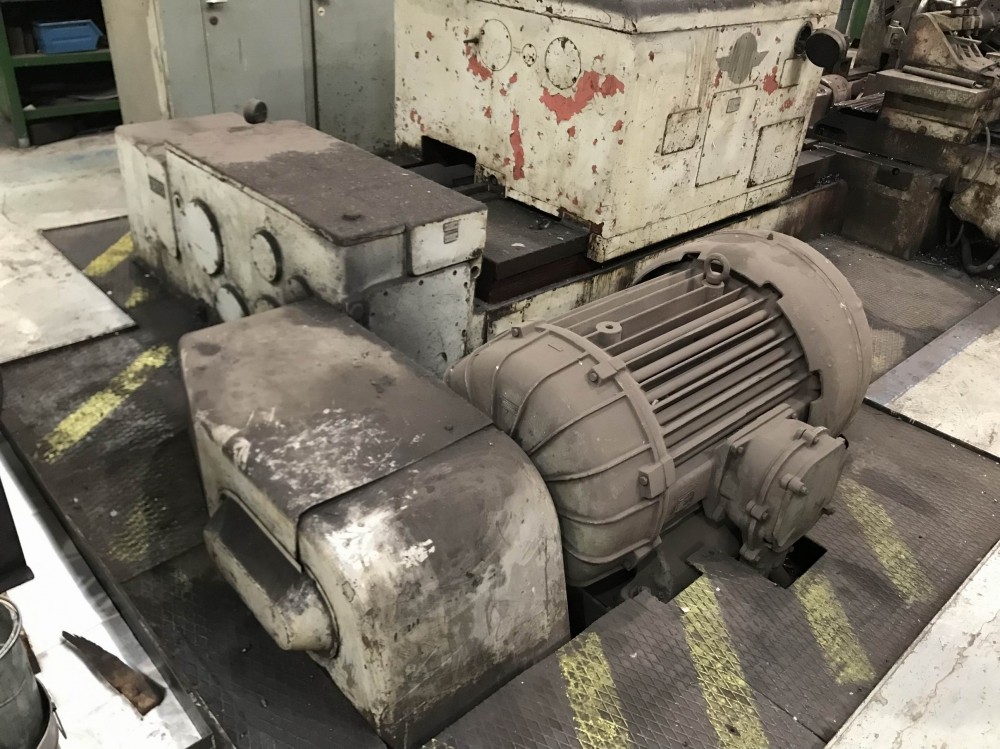

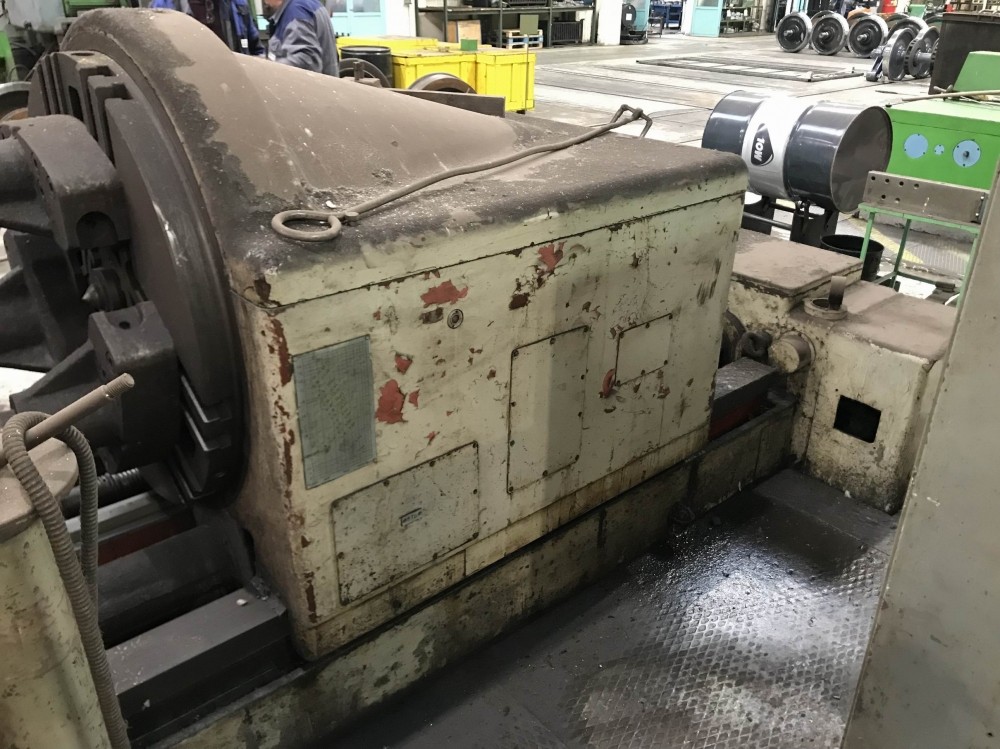

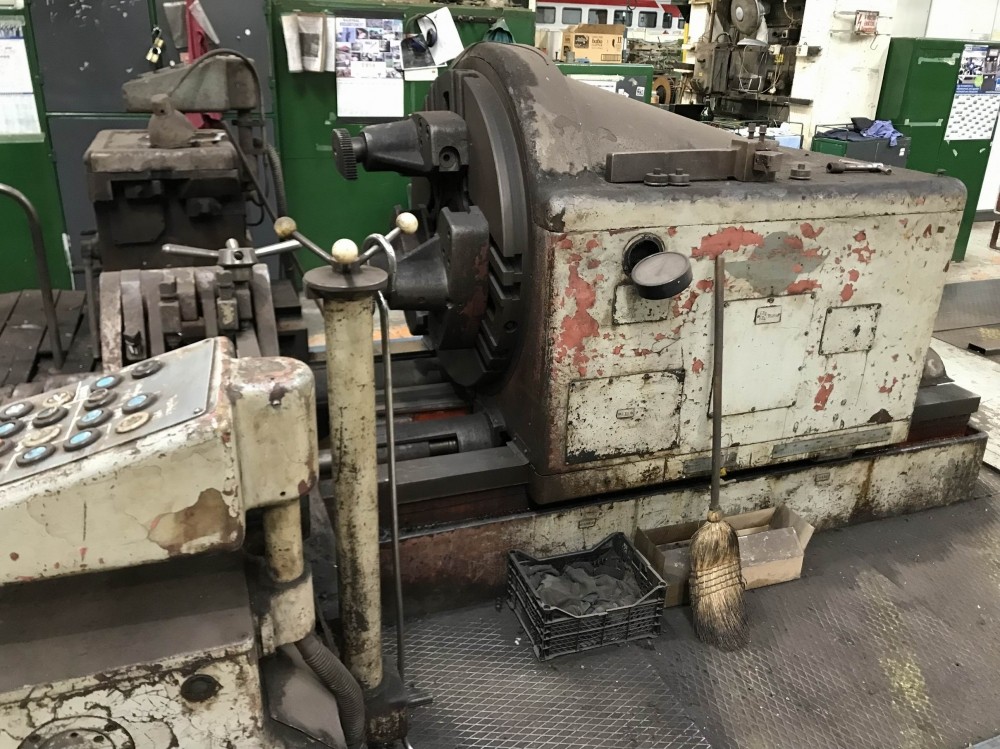

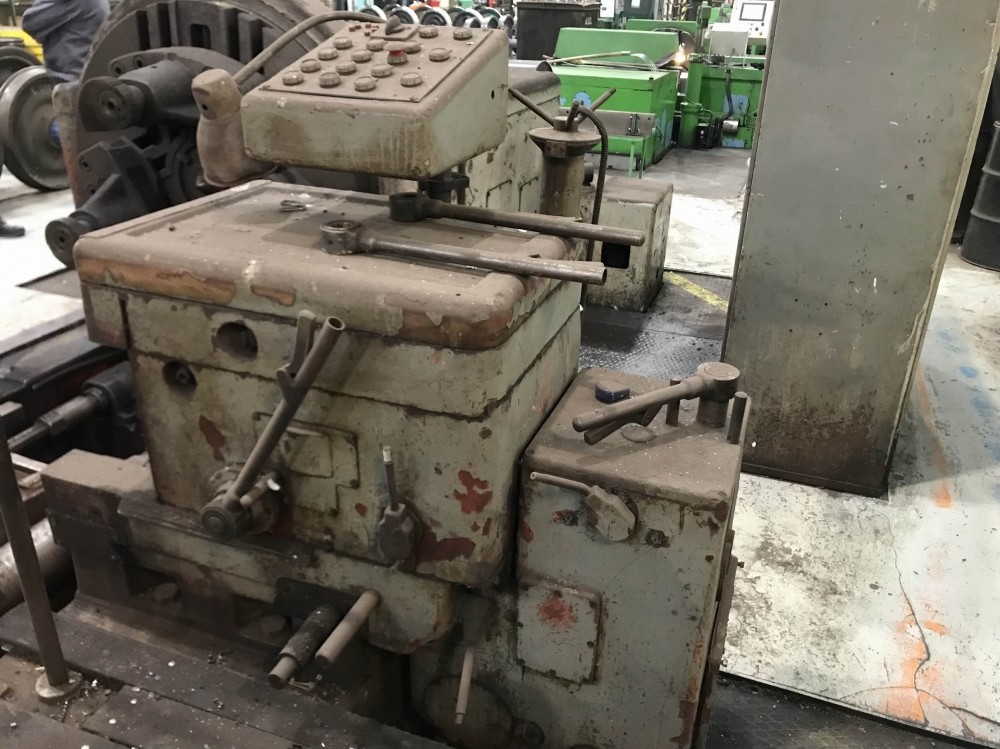

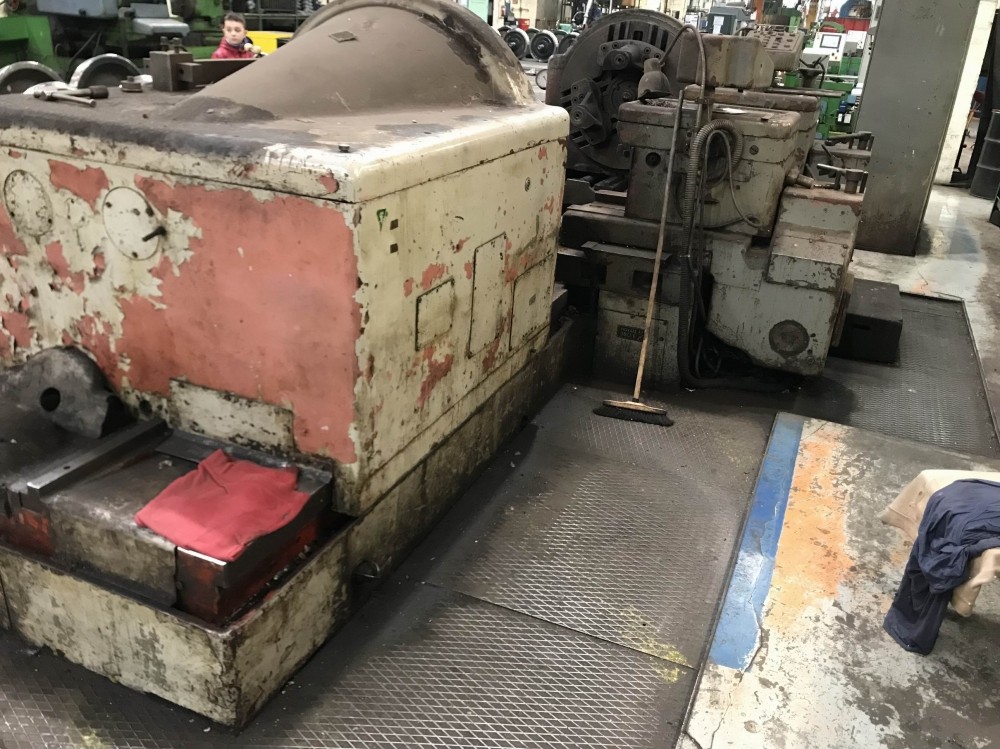

Railway lathe Rafamet UDA 112 N
Year of production 1989, modernization 2006
Control system ‘Siemens’
Technical specifications
Technical specs
| Distance between railway wheels 1435 mm |
| Max. working diameter 600-1120 mm |
| Removable diameter 460-950 mm |
| Wheel rim width up to 150 mm |

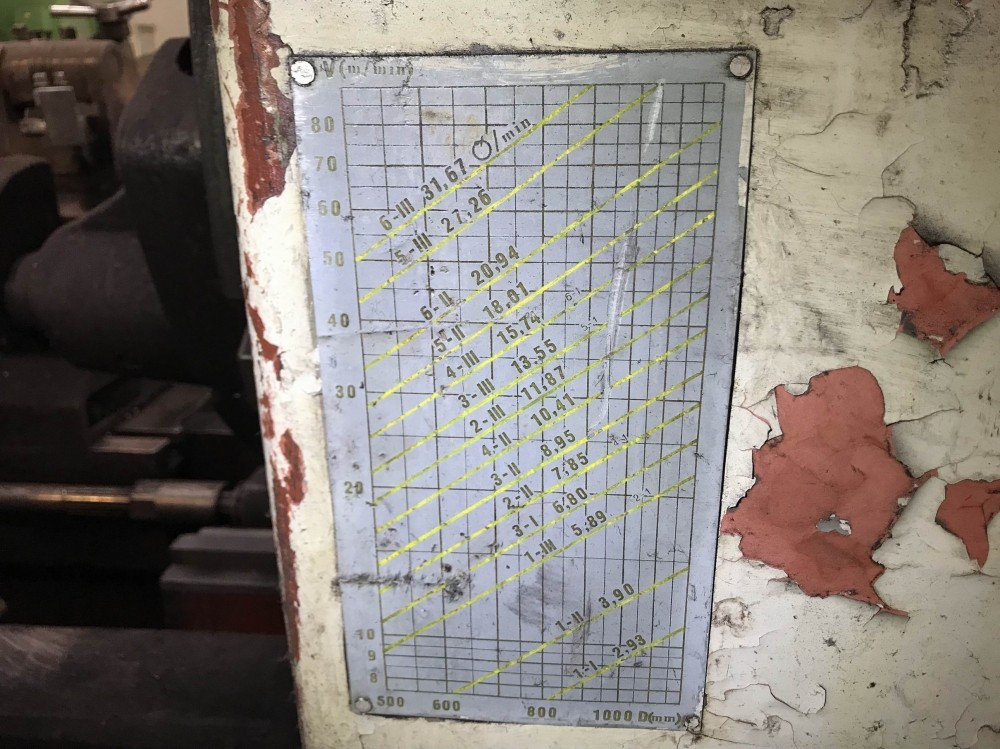

| Spindle speed max. 40 min-1 |
| Smooth regulation of spindle speed |
| Smooth adjustment of the slide support |
| Max. axle length 2550 mm |
| Max. wheel weight 5000 dsN |
| Carrier cylinder stroke 60 mm |
| Dimensions of the lathe |
| length 7660 mm |
| length with covers 8400 mm |
| width 3825 mm |
| height 2855 mm |
| Total weight approx. 37,000 kg |
| Feed rate |
| of headstocks 1400 mm/min |
| headstock spindle 550 mm/min |
| supports 2000 mm/min |
| lifting device 1800 mm/min |
