#05795

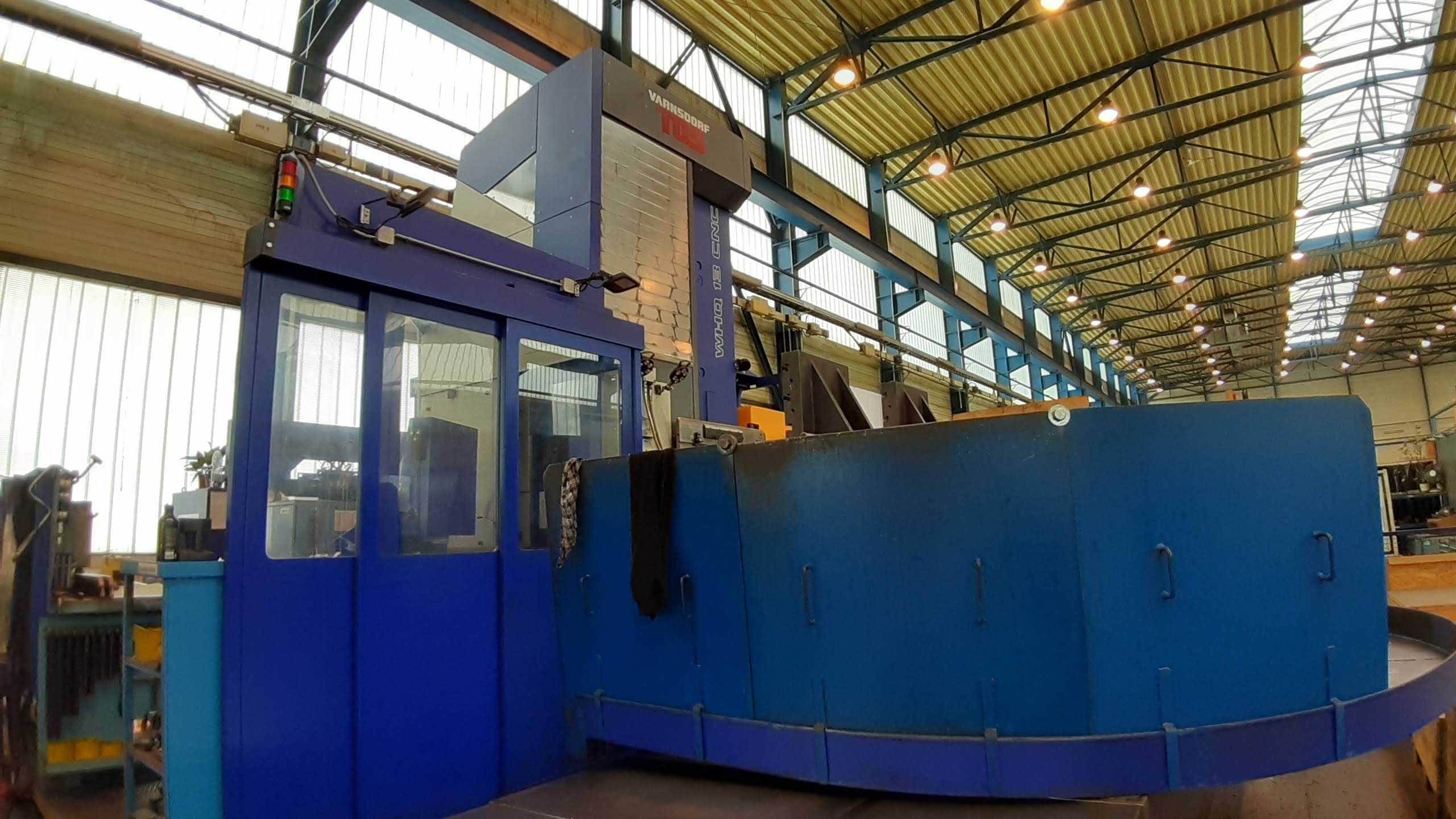

Horizontal Boring Machine TOS WHQ 13 CNC Heidenhain iTNC530 HSCI, incl. 40 pcs toolchanger – YOP 2013
Technical specifications
Technical specs

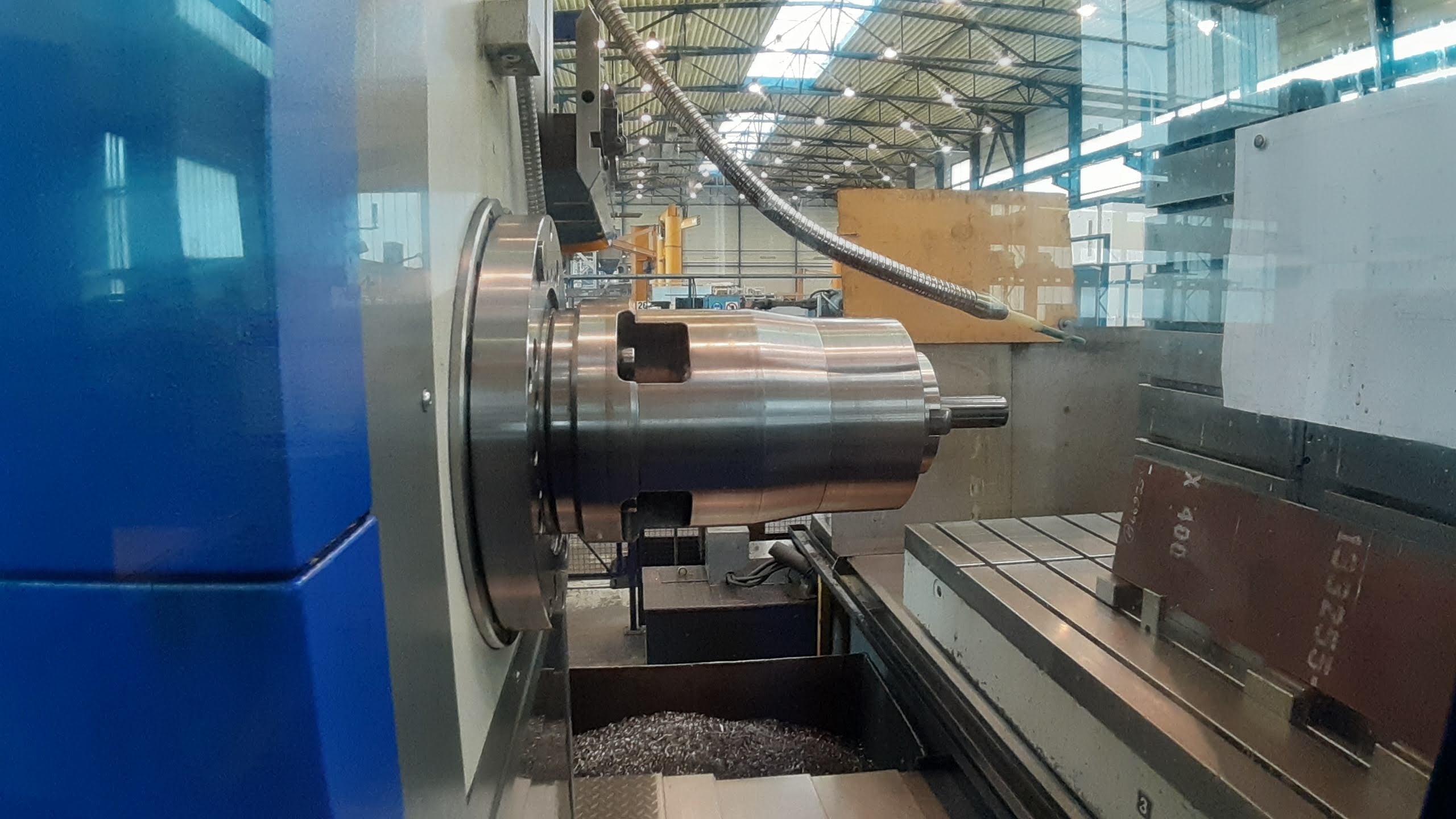

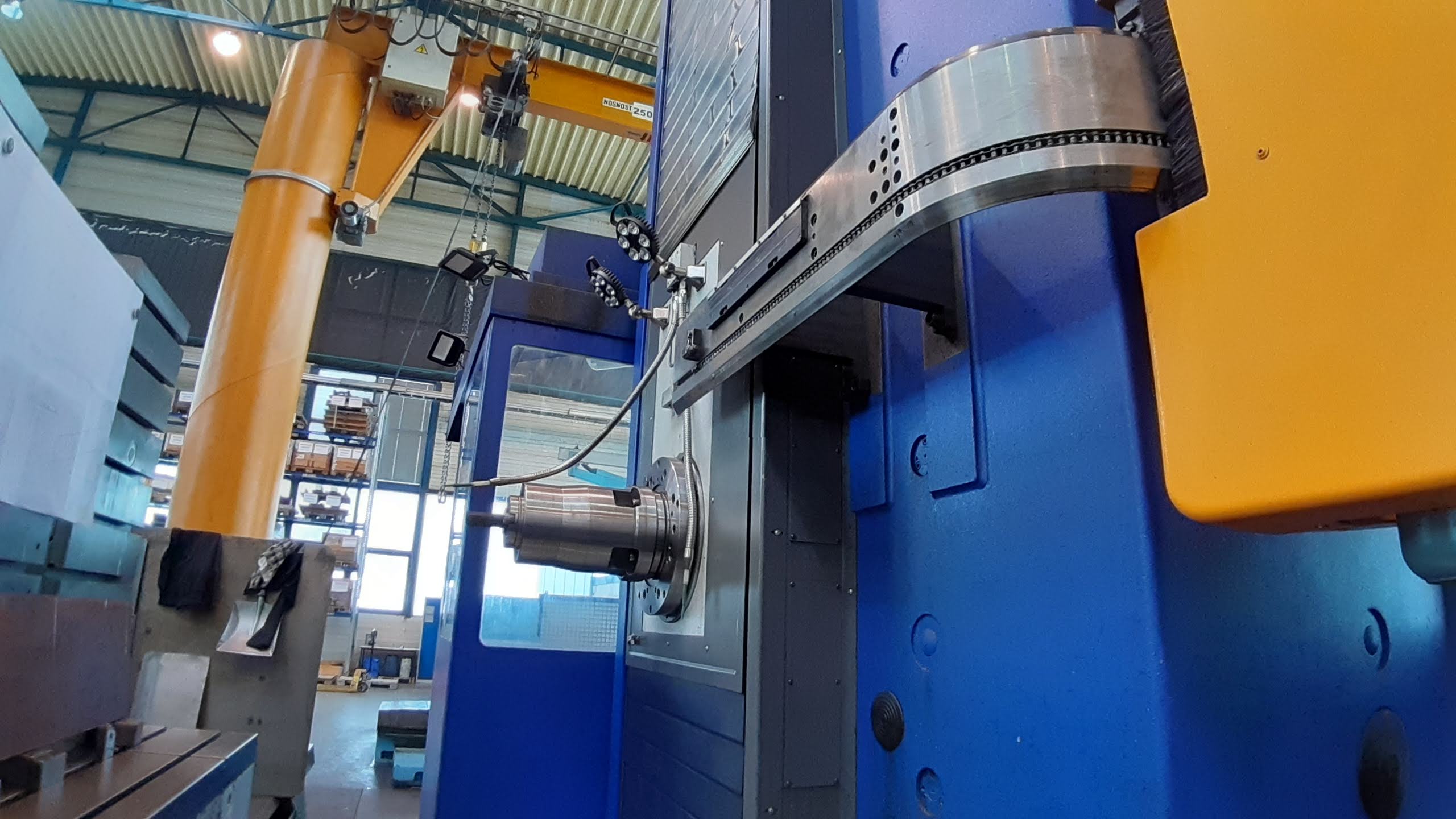

Spindle dia. 130 mm
Spindle taper ISO 50

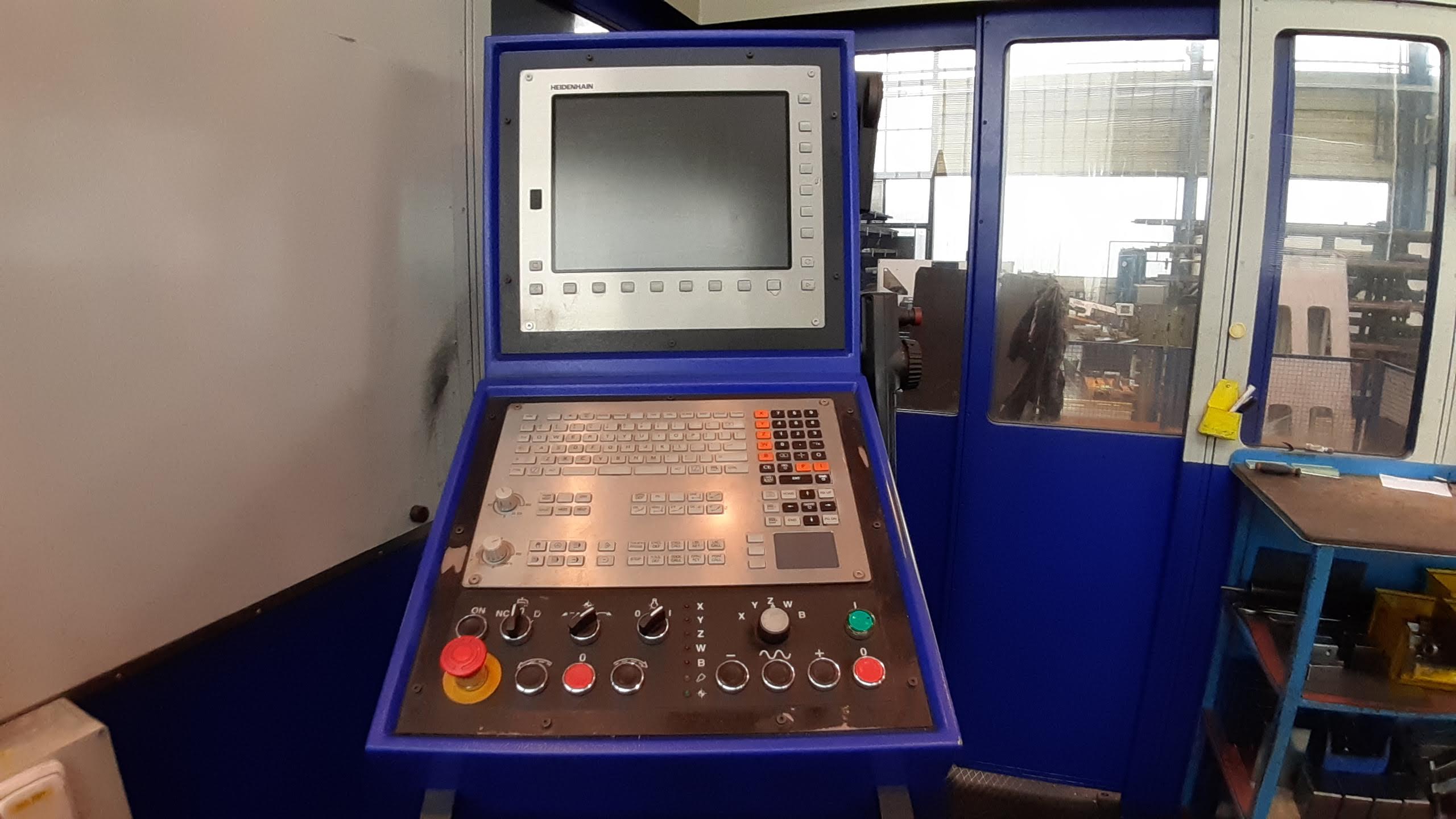

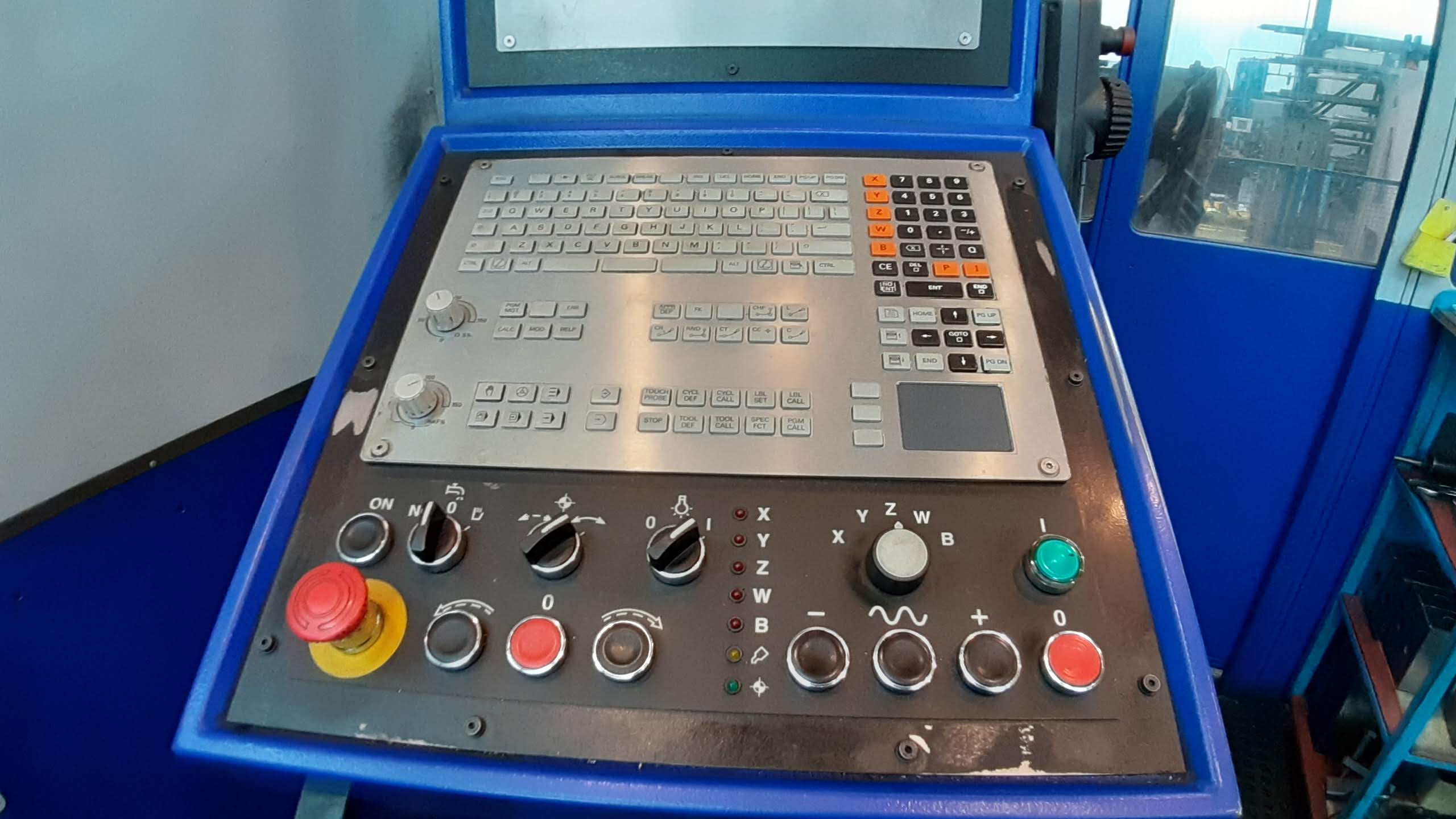

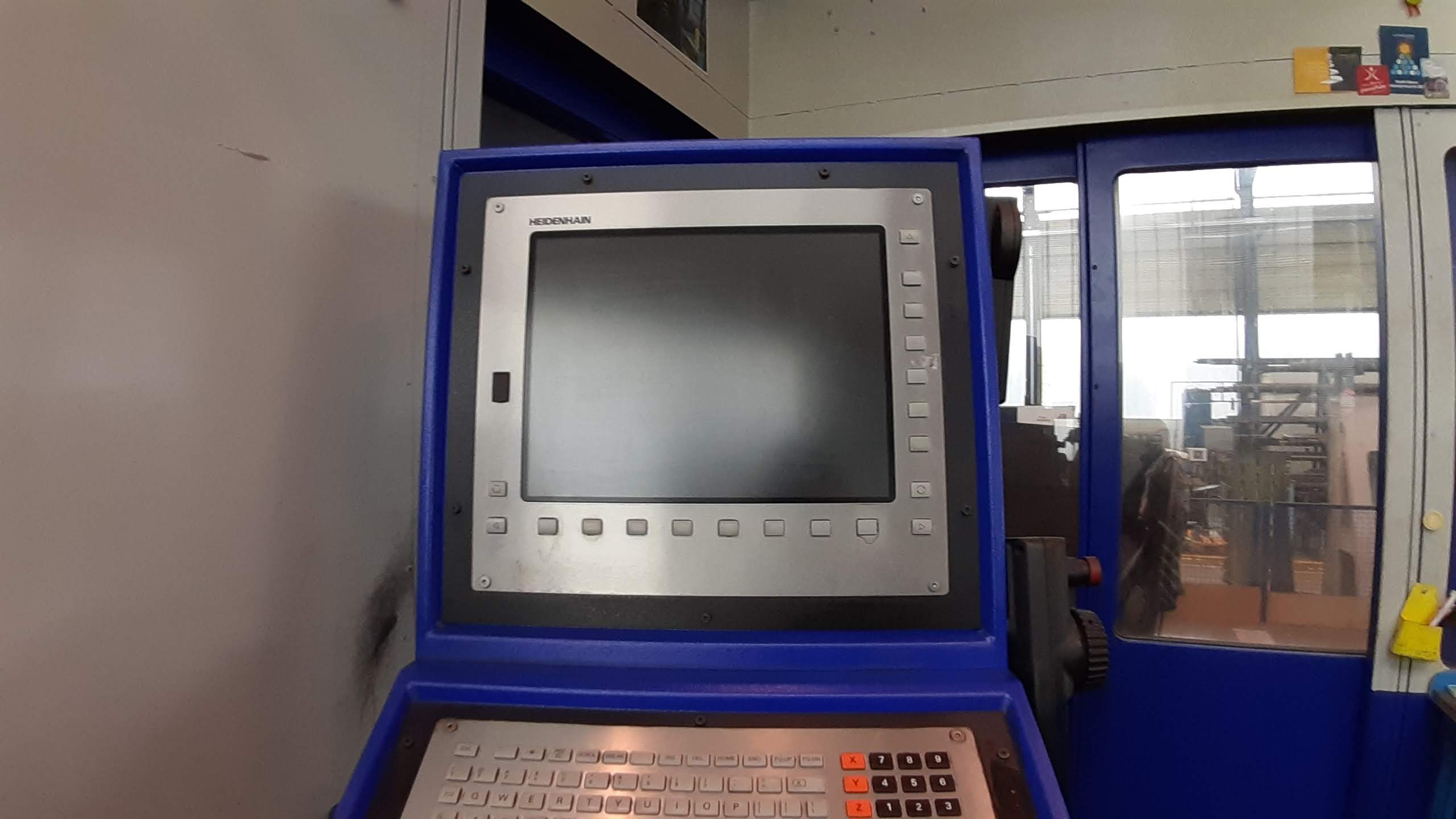

Systém iTNC530 HSCI
Spindle has 2 mechanical ranges and 3000rpm (with motor Siemens 1PH7_37kW)
Torque permanent (S1) 2502Nm

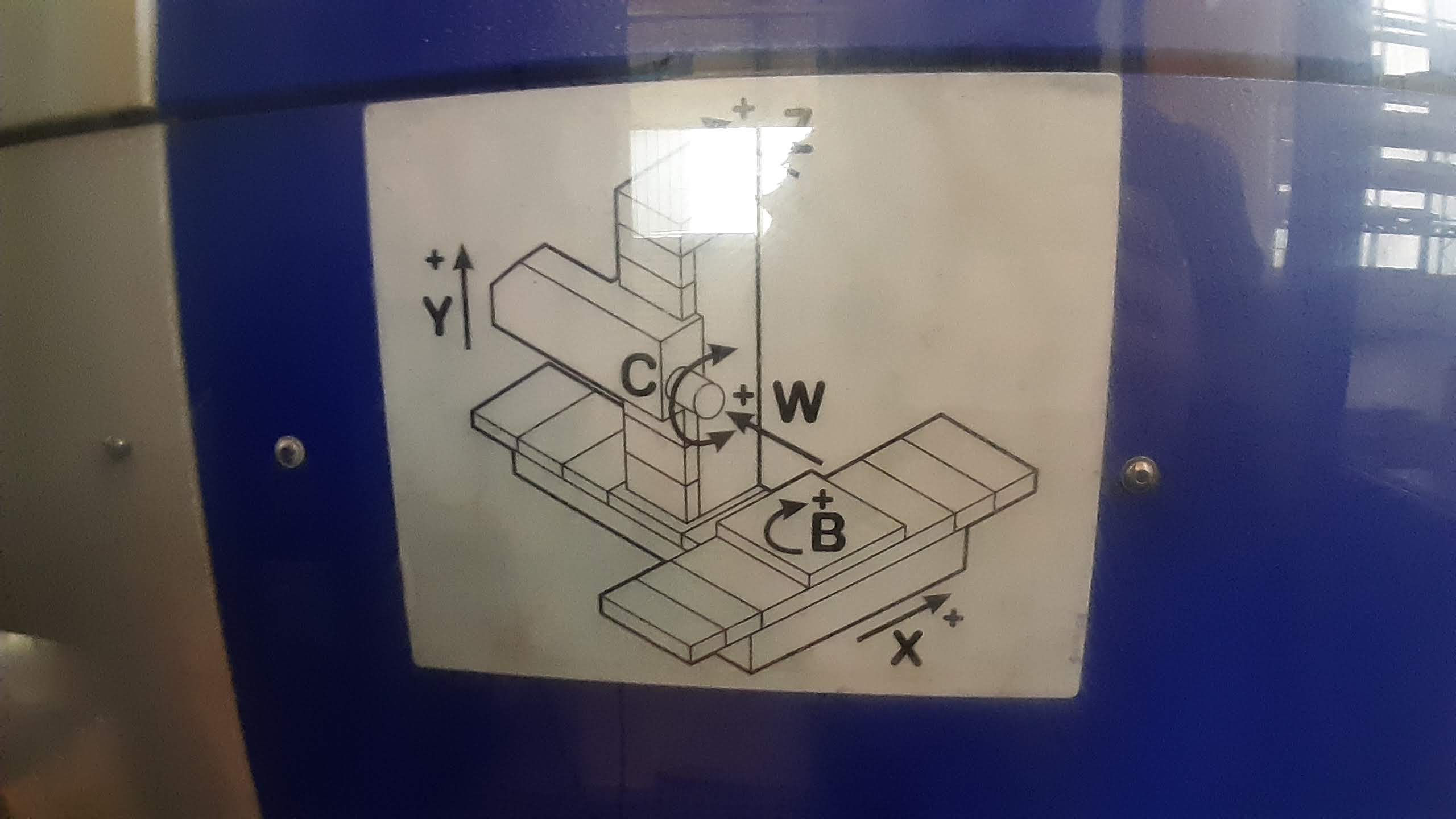

X 4000mm
Y 2500mm
Z 1600mm
W 800mm

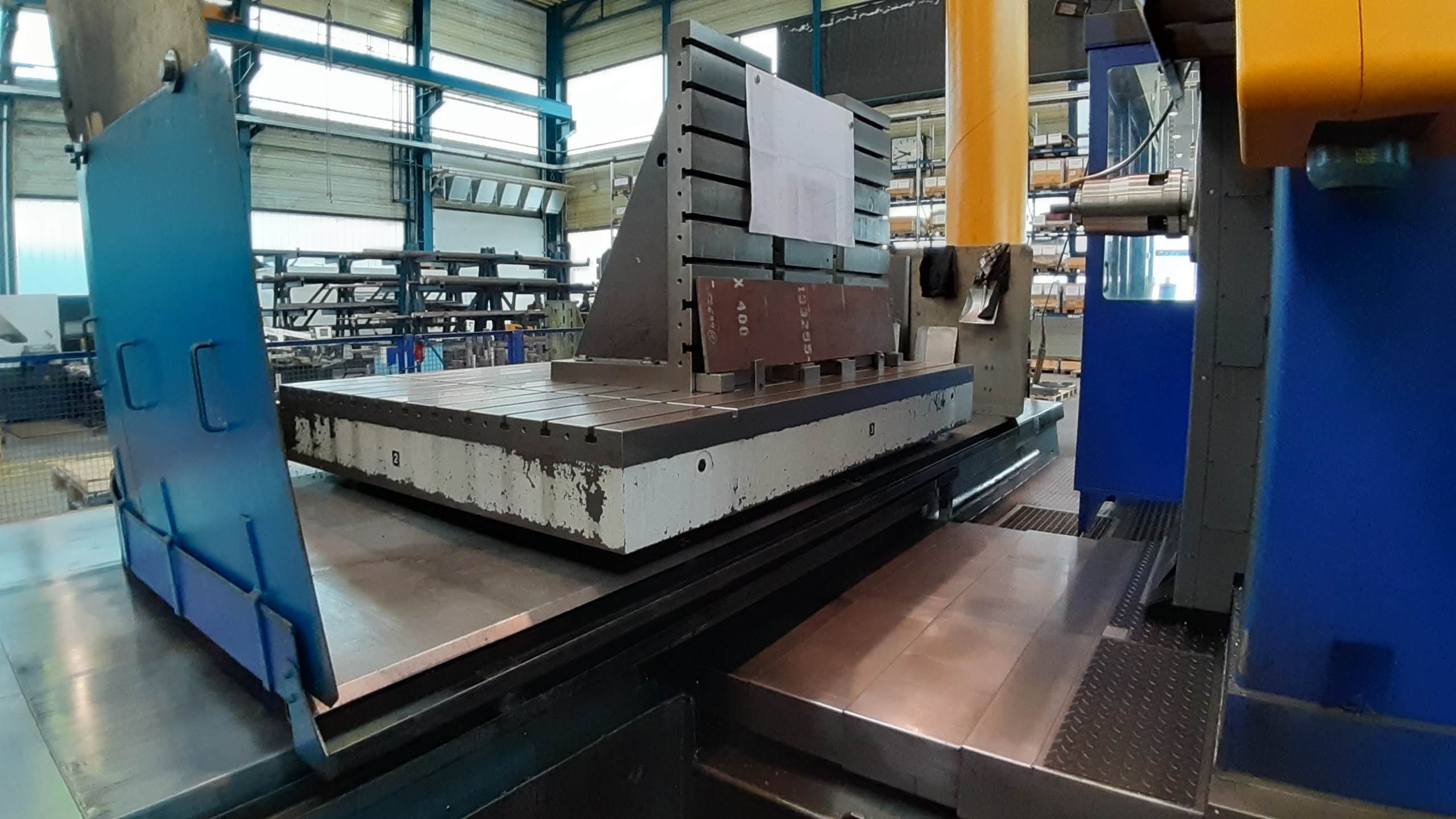

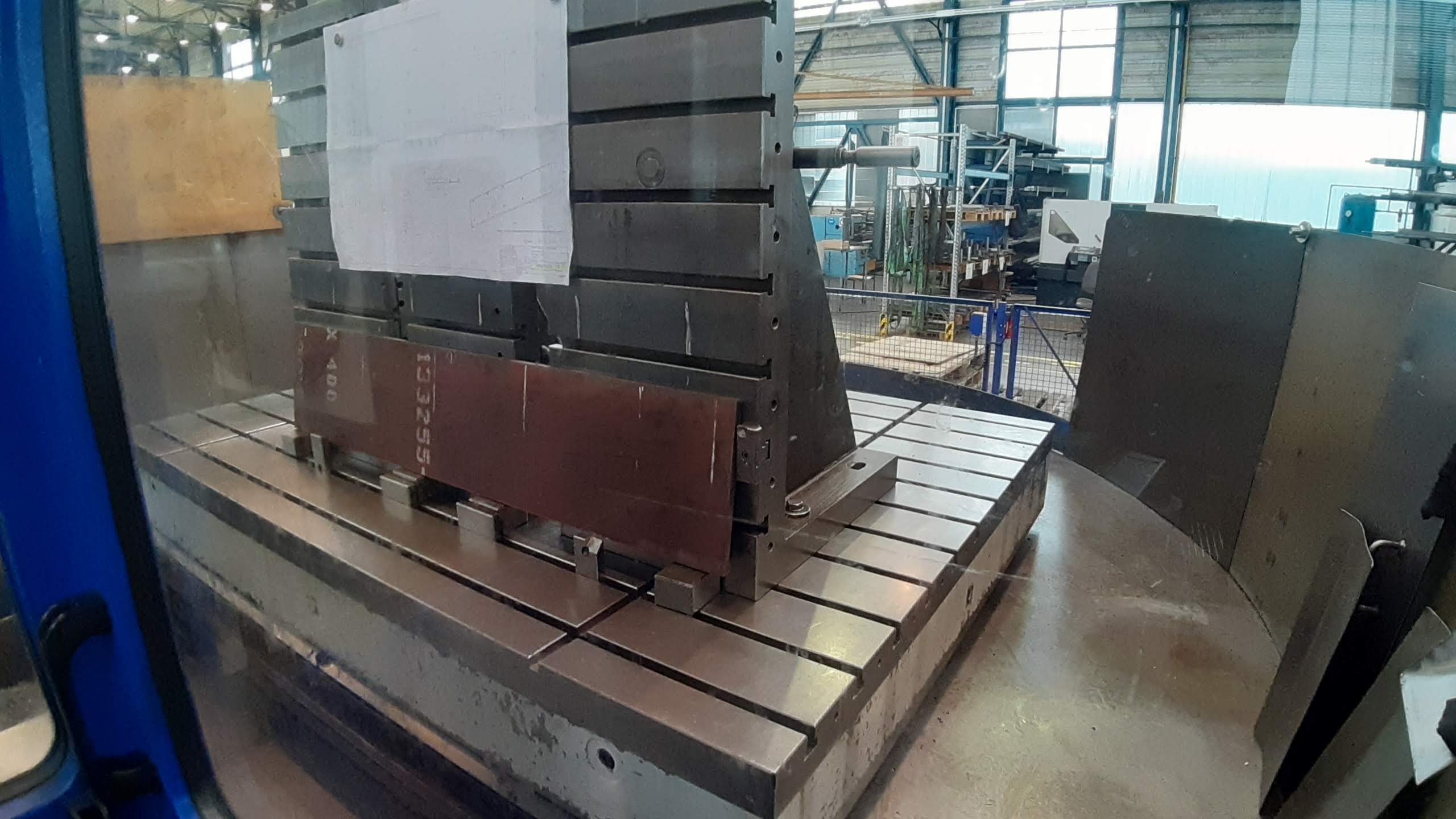

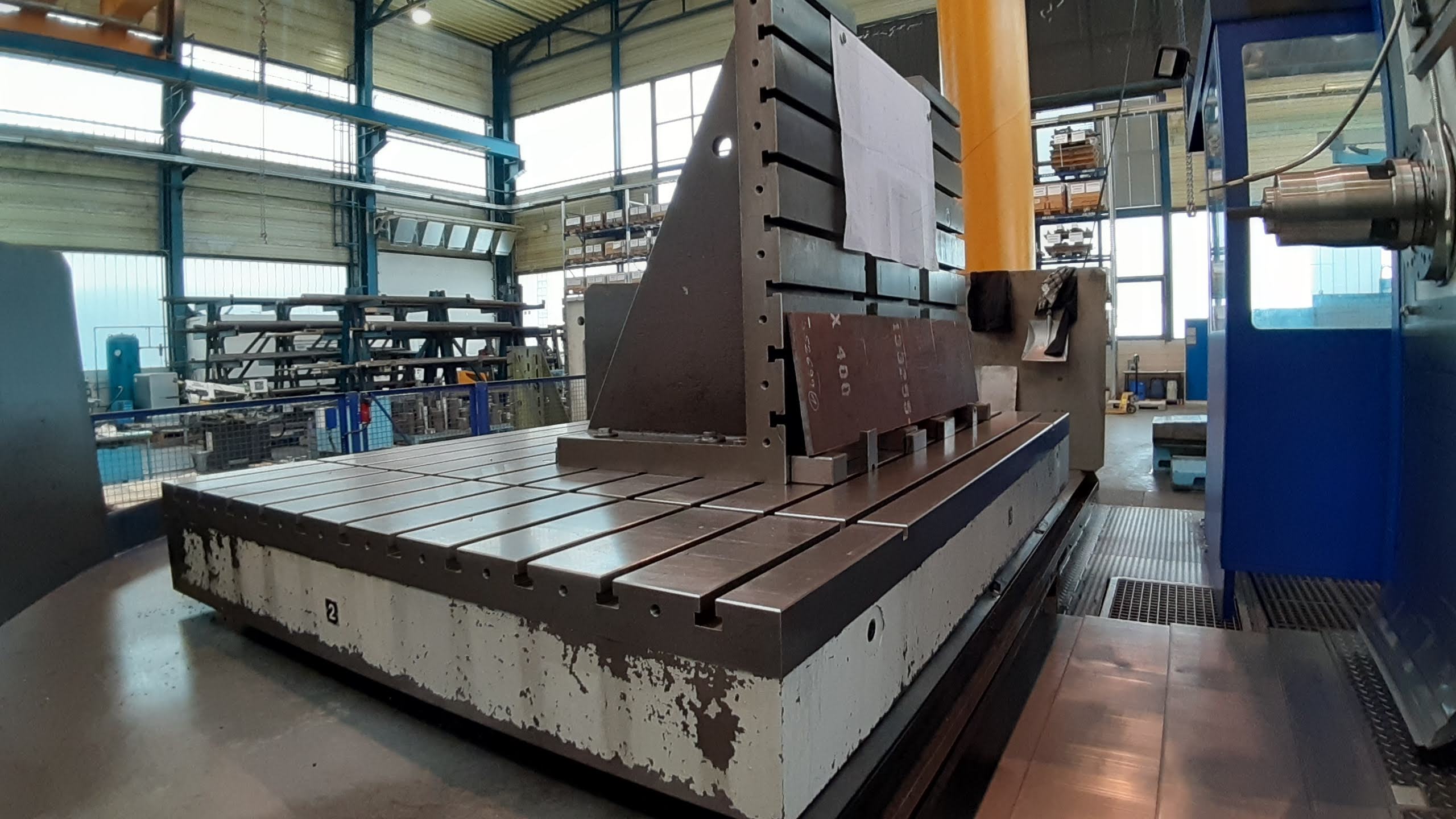

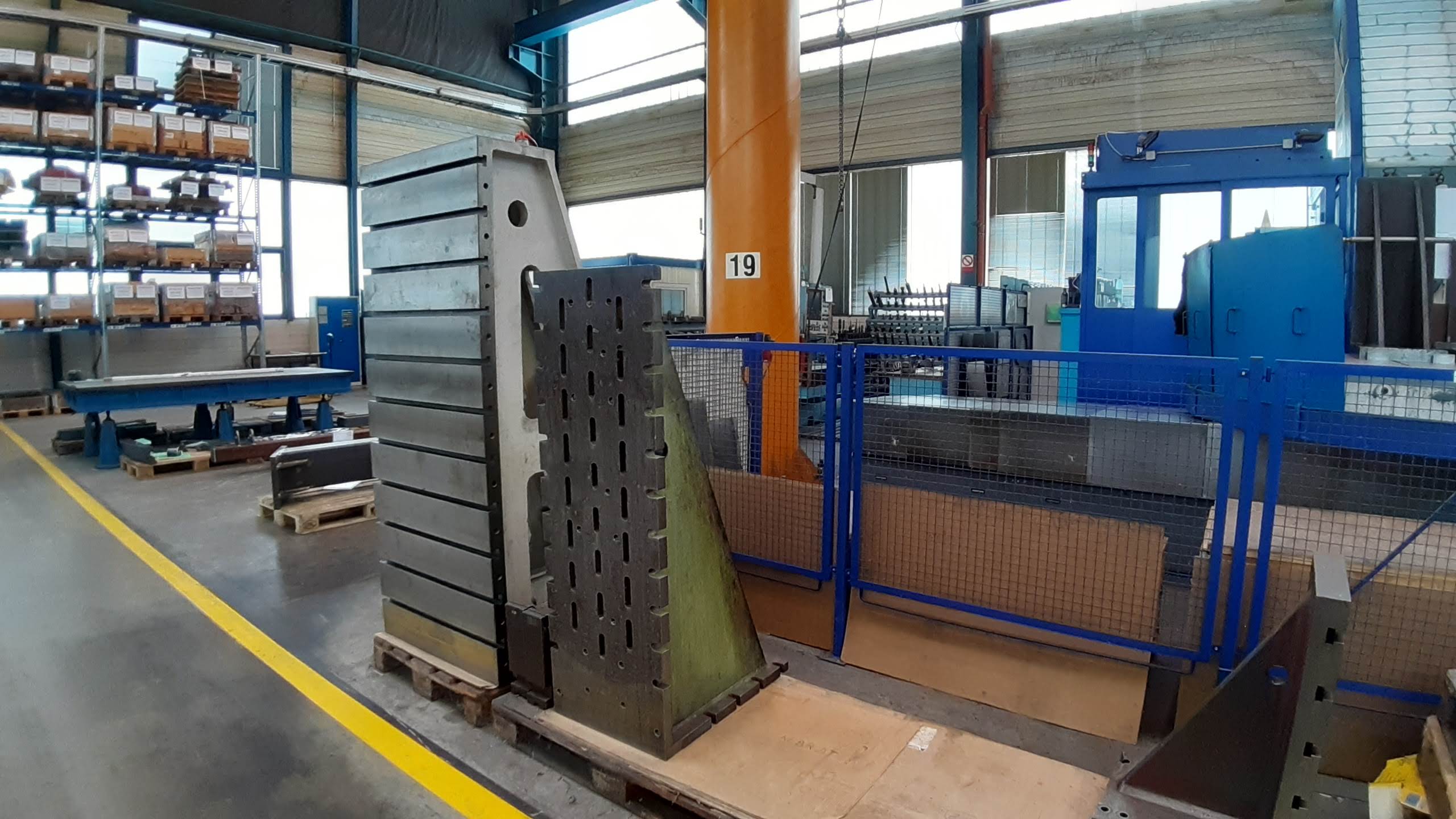

Table 2500x1800mm,12tons,controlled axis (drive one Siemens motor and two pinions)

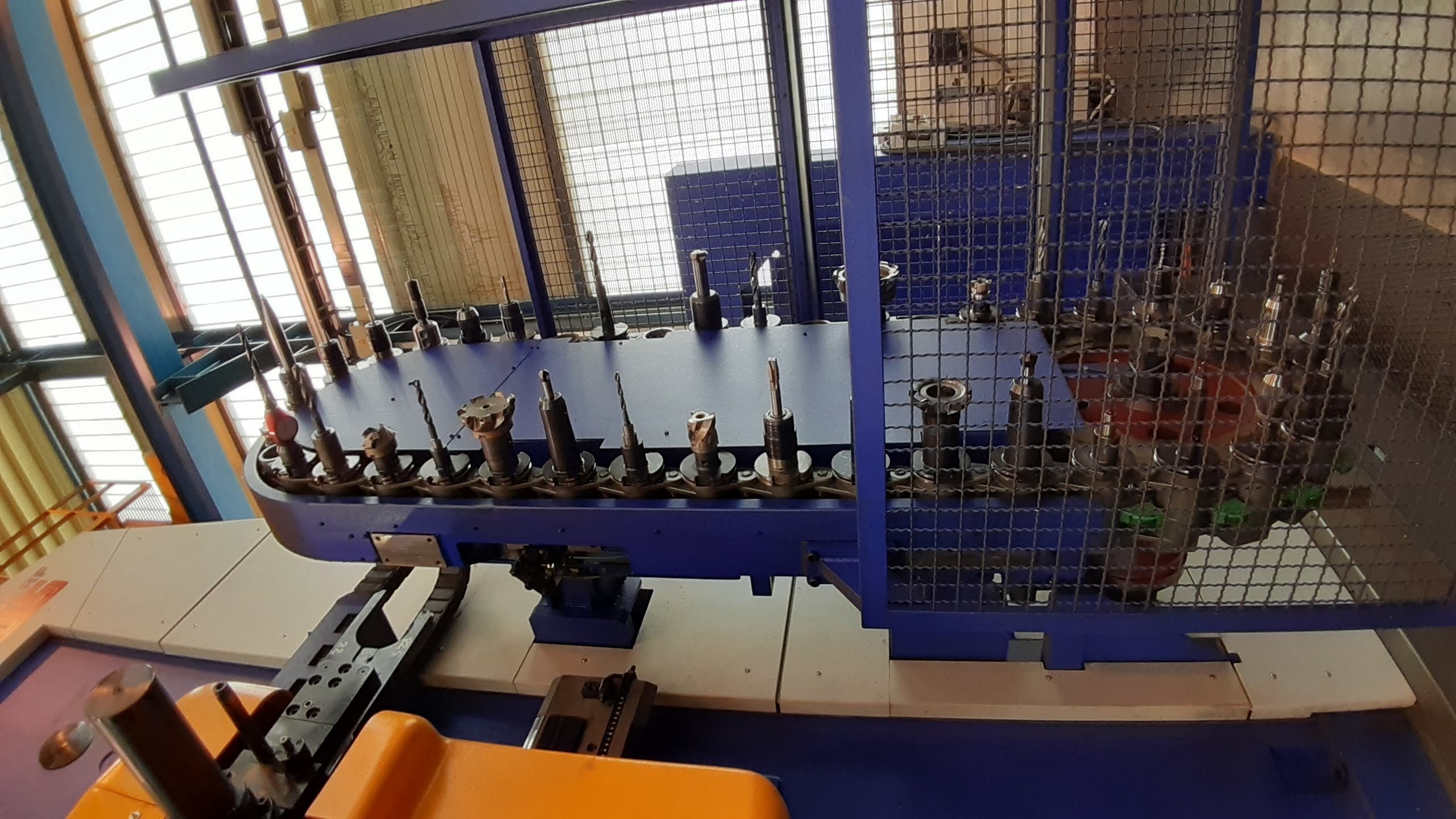

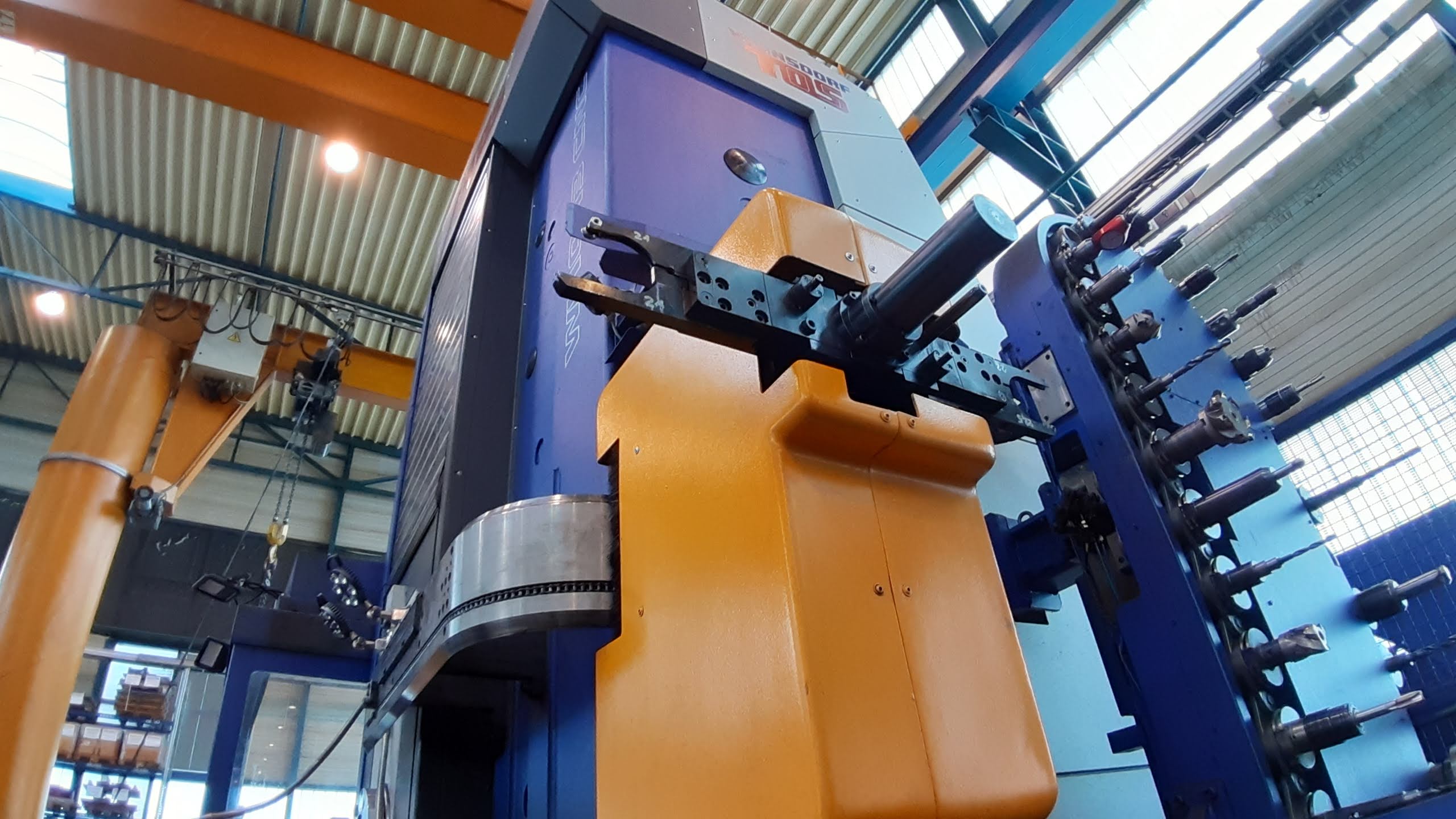

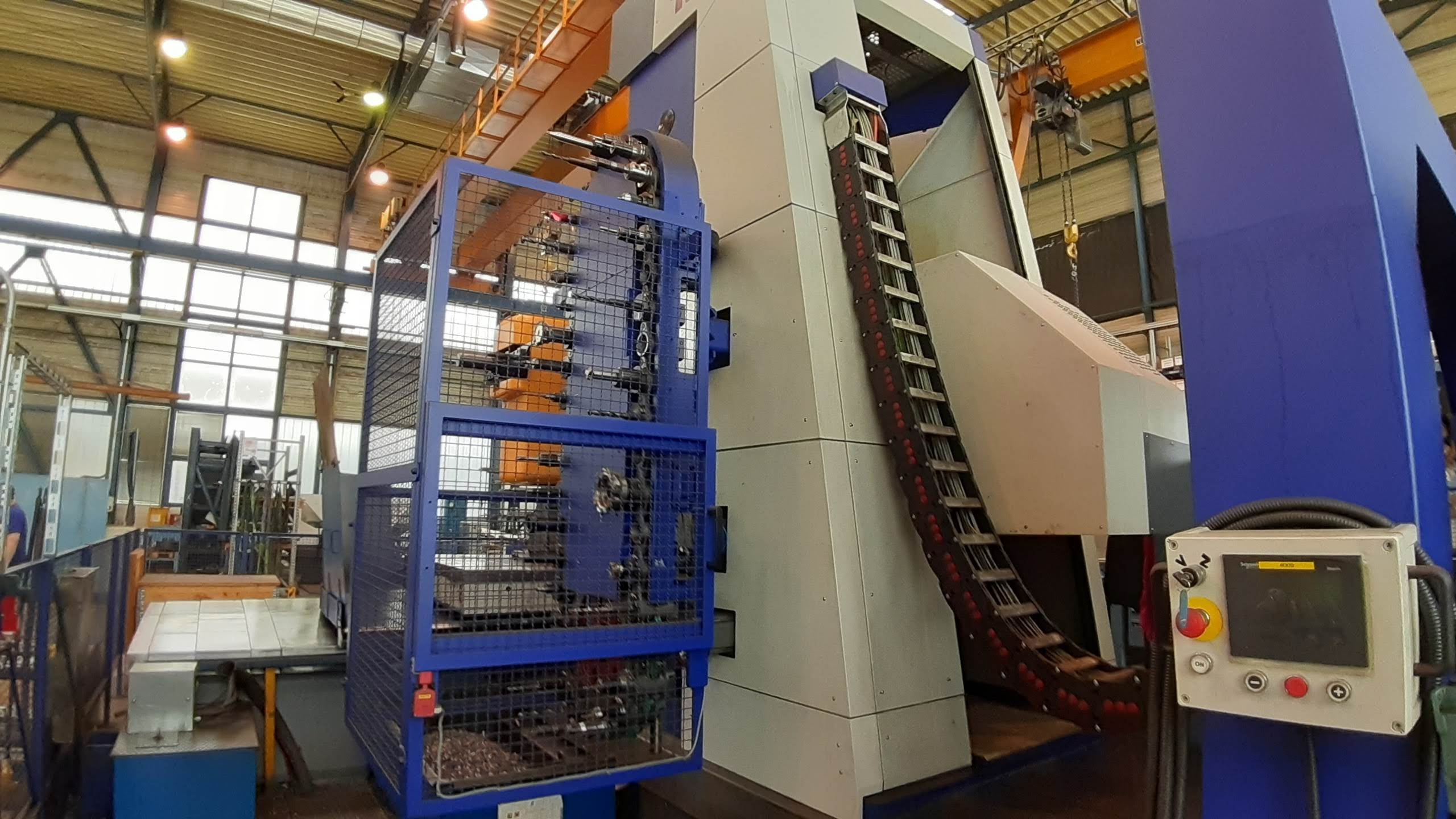

Automatic tool changer 40 posts
Complete „CE“ with operator cover
2 chip conveyors along the X axis
Spindle hours 14346
