#06205

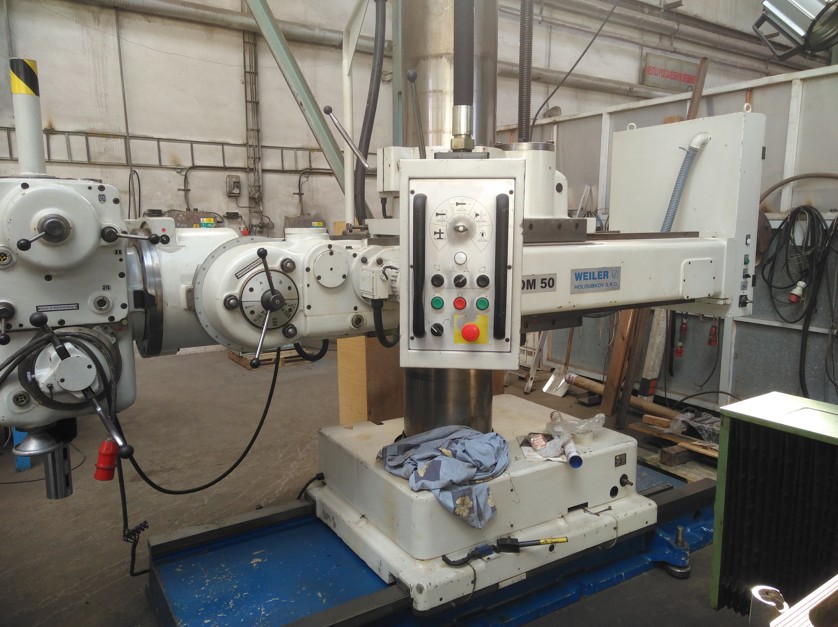

Drilling machine MAS WEILER VOM 50
Technical specifications
Technical specs
Max. drilling diameter steel/cast iron: 50/65 mm
Max. travel over bed: 1200 mm
Max. vertical arm adjustment: 1250 mm
Max. arm travel in horizontal direction: 900 mm
Spindle head rotation: 180°
Spindle rotation: 360°
Spindle taper: Morse 5
Spindle speed: 16-800/min.
Electric motor output: 4kW
Machine dimensions LxWxH: 3450x1150x3400 mm
Weight: 6.570 kilograms
