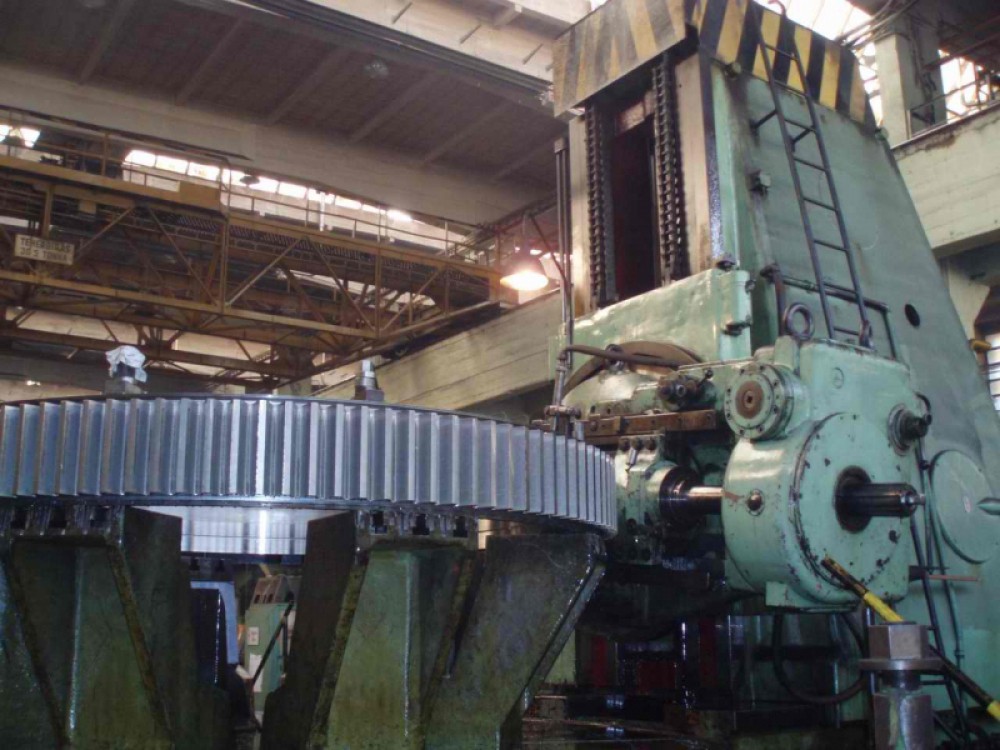

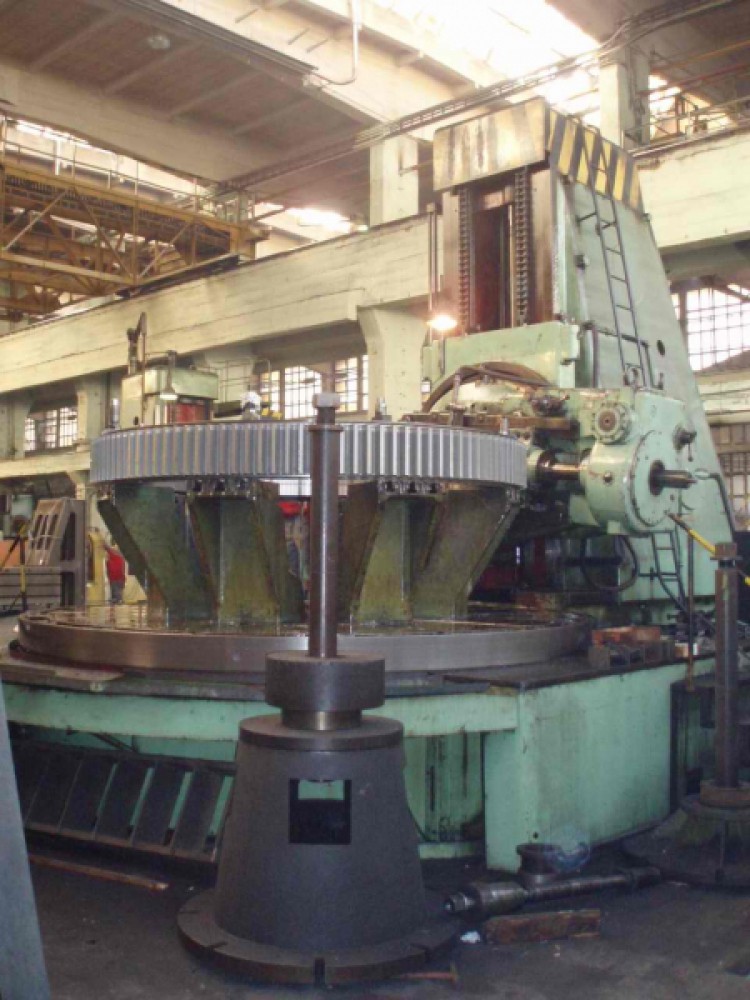

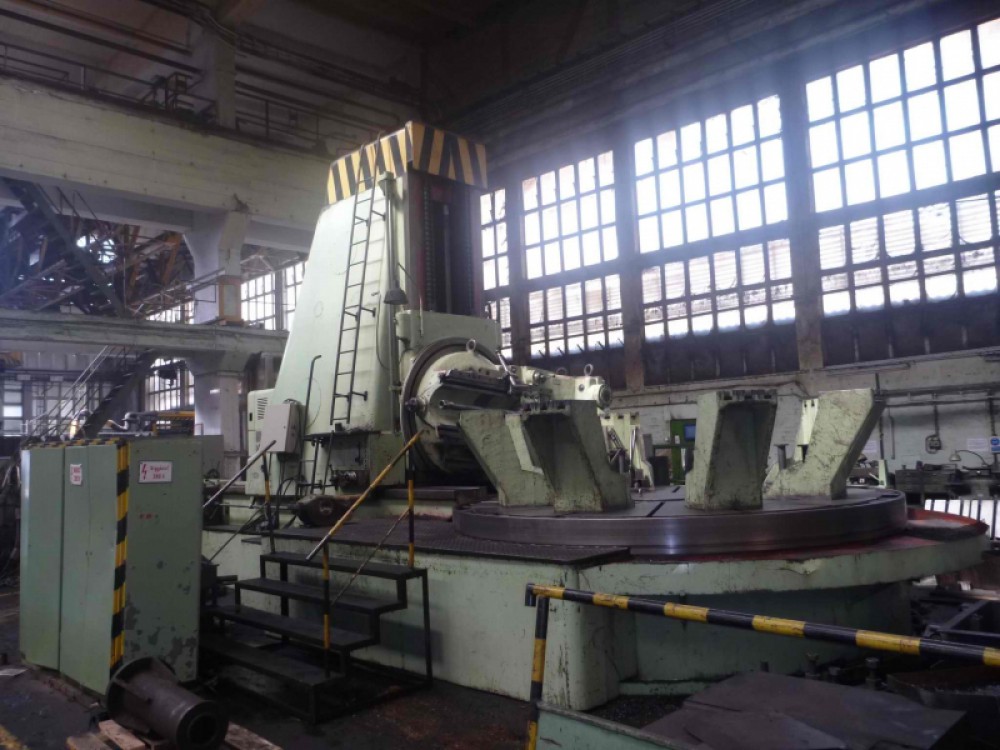

#03414

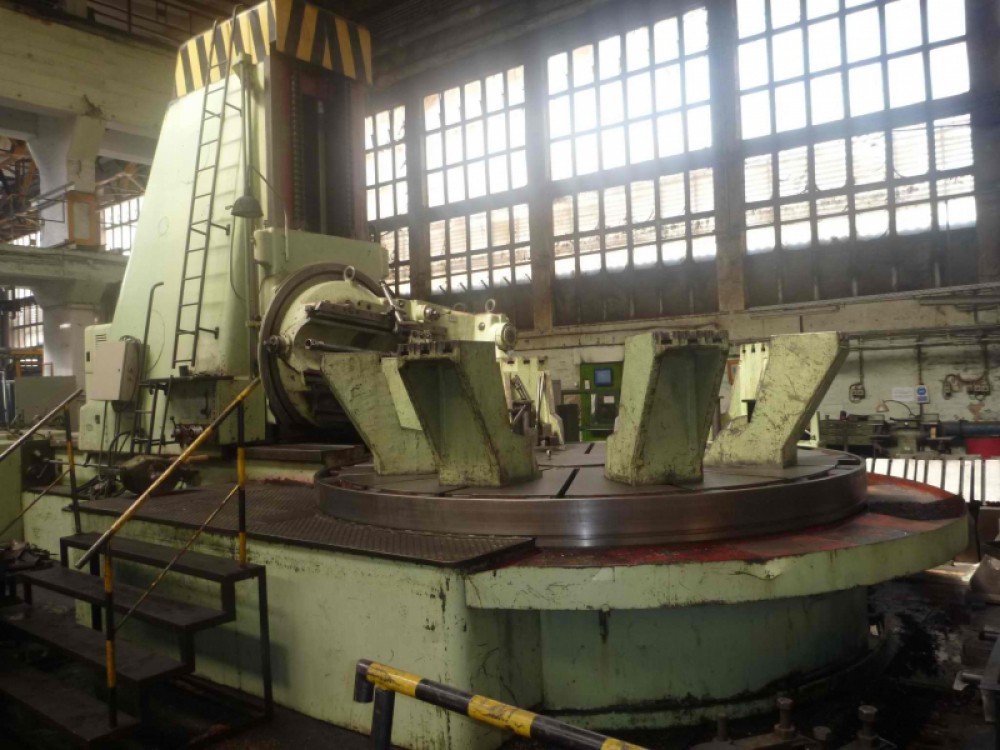

max gear dia 5000 mm,

modul 50

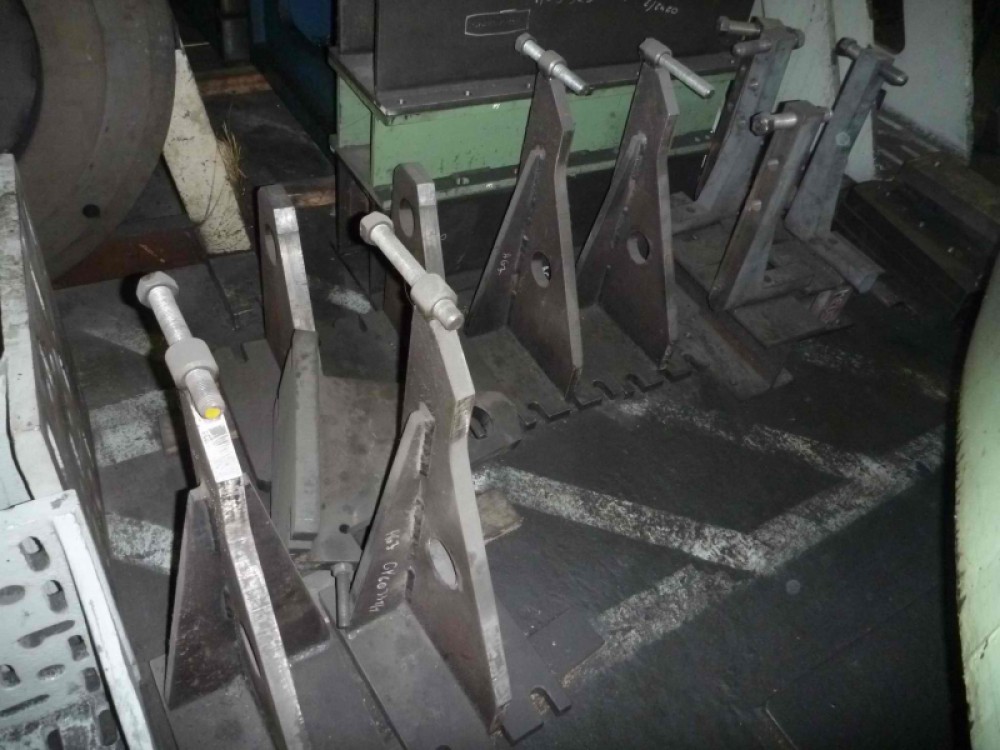

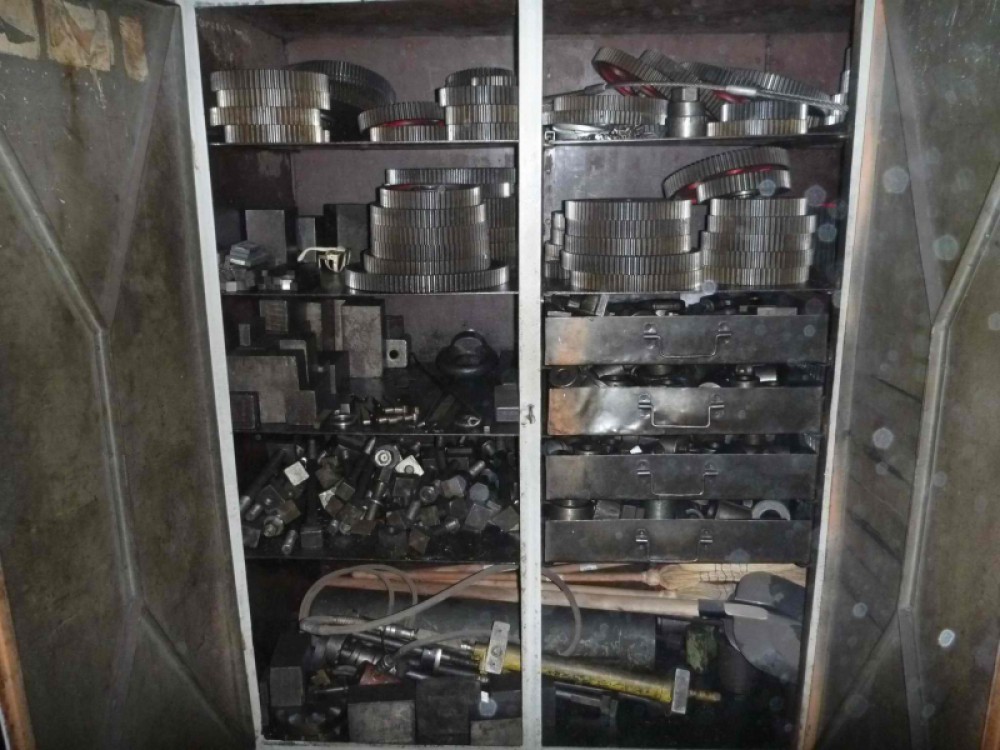

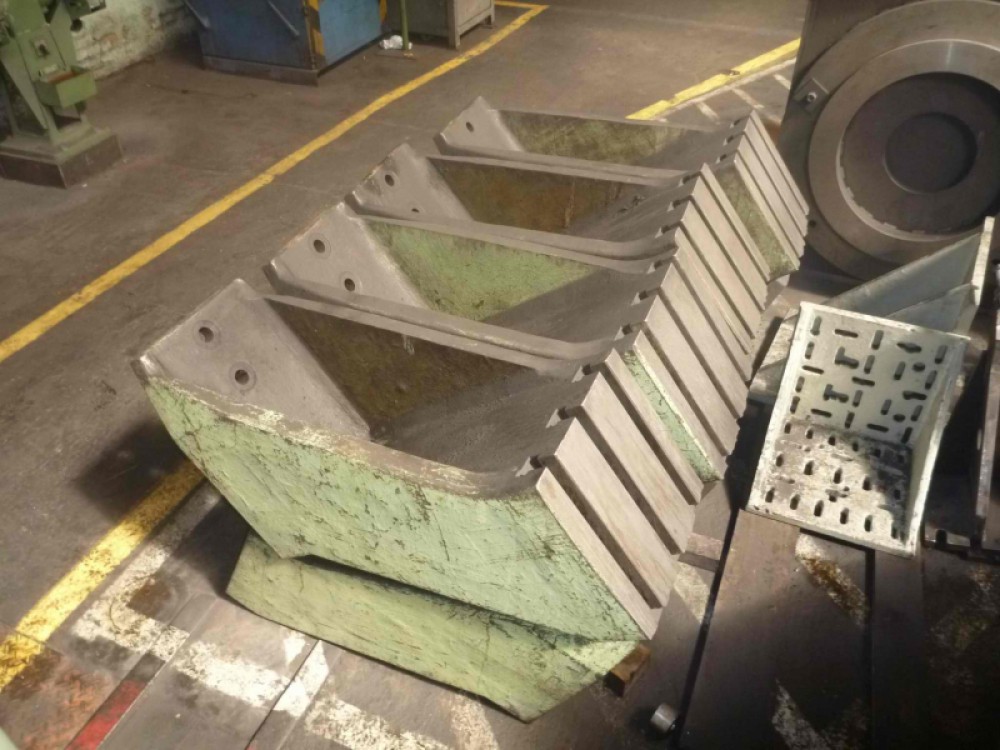

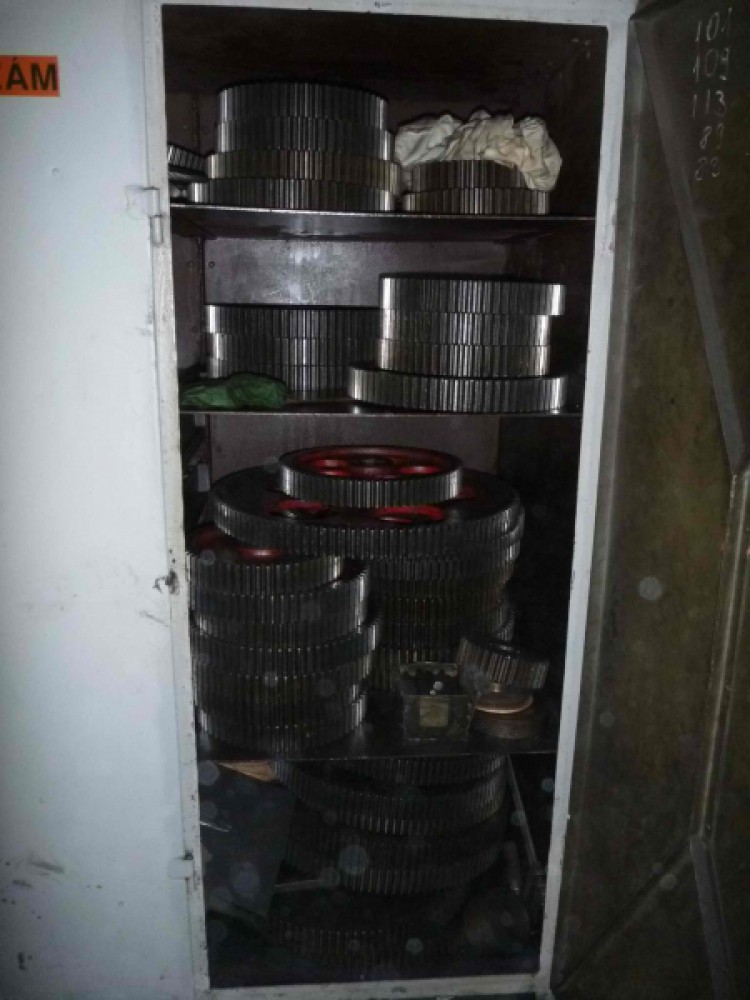

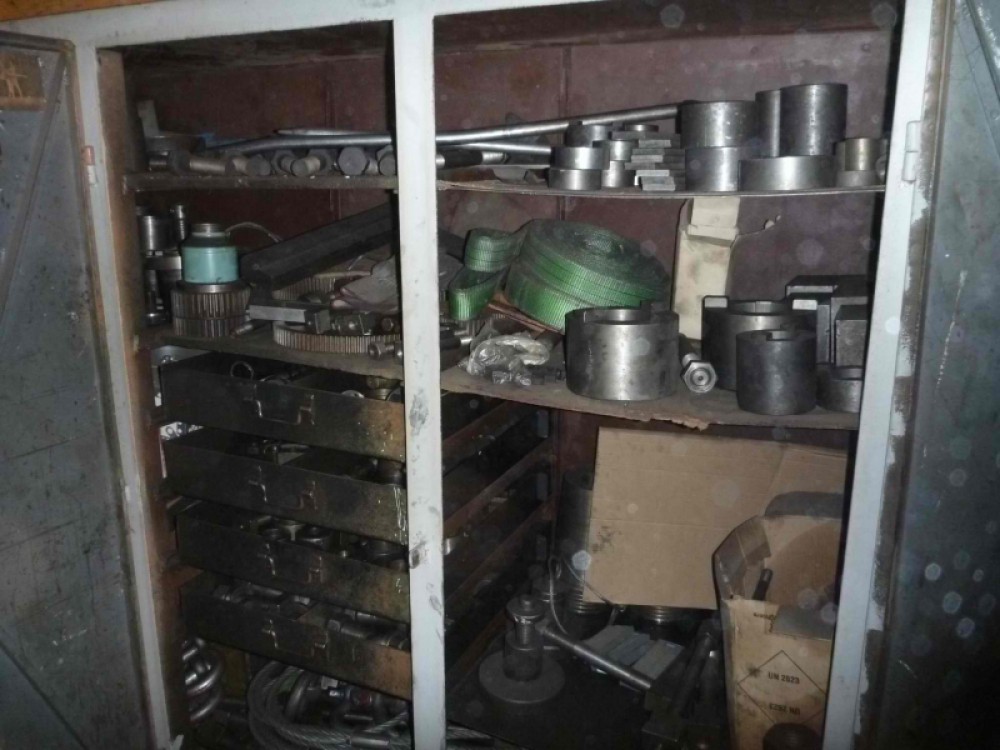

• very little used machine, complete with all accessories
• excellent conditions

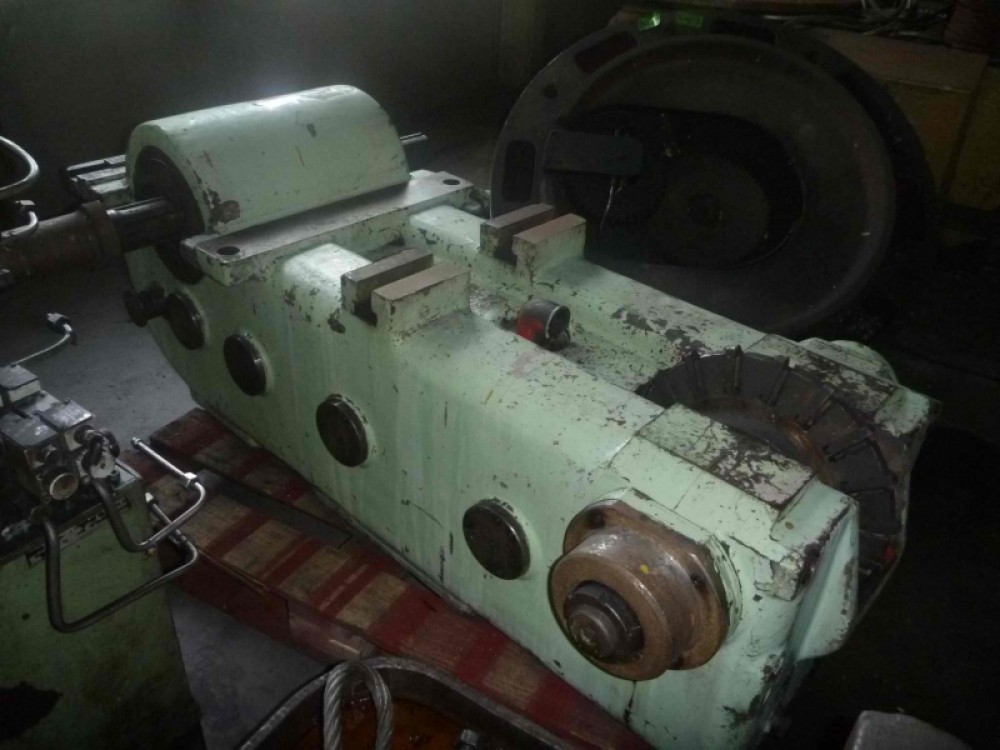

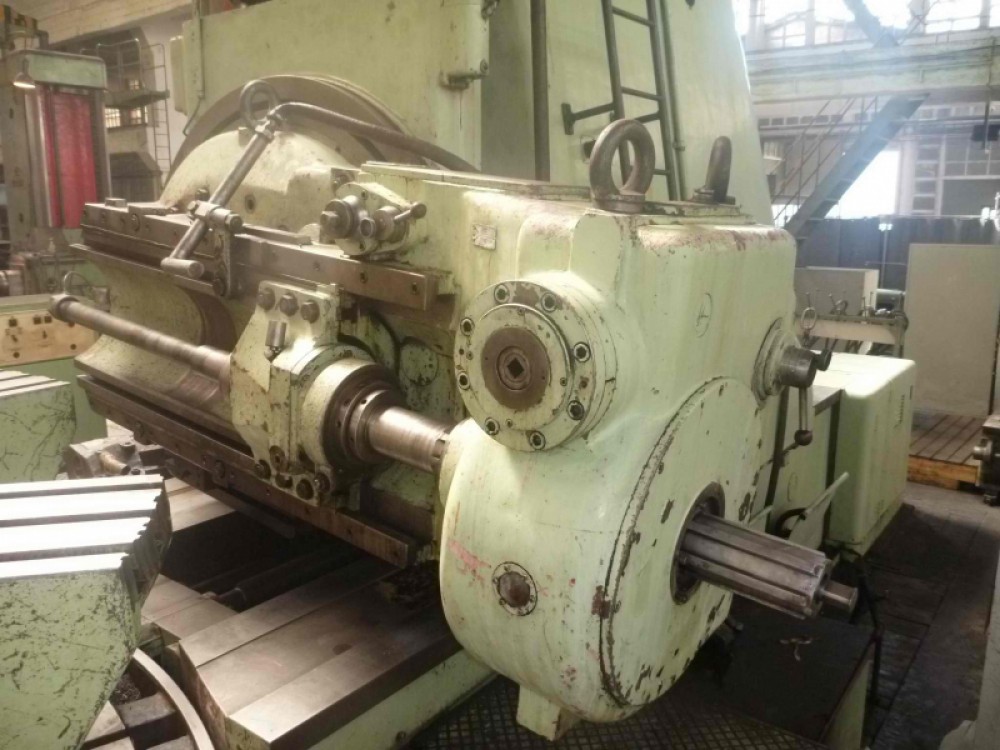

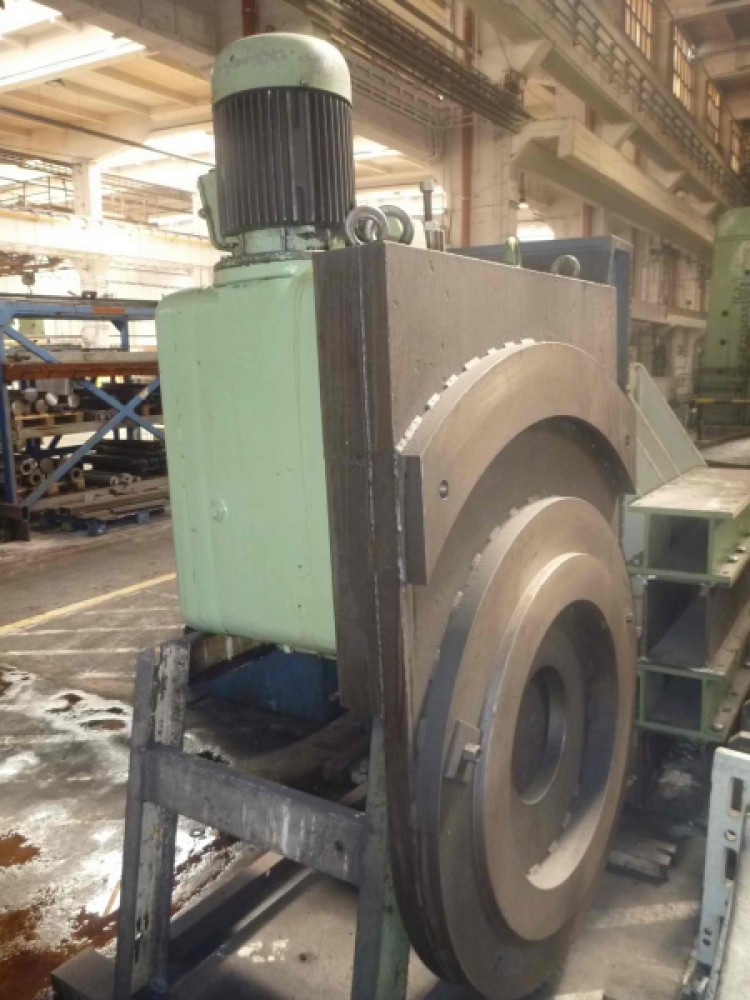

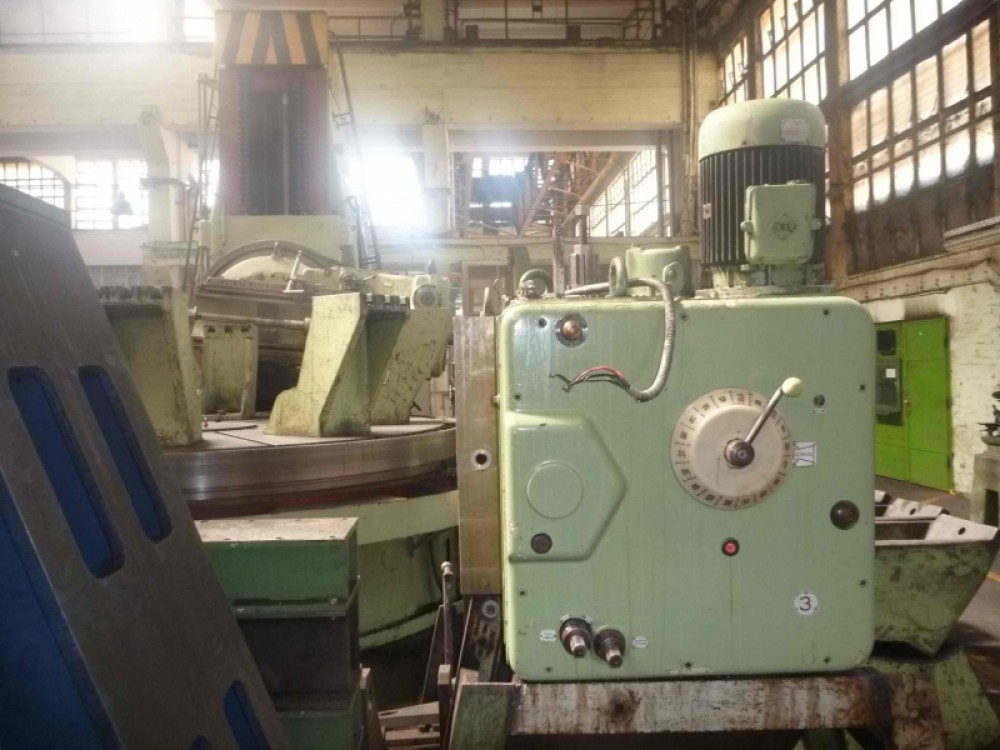

including following heads:

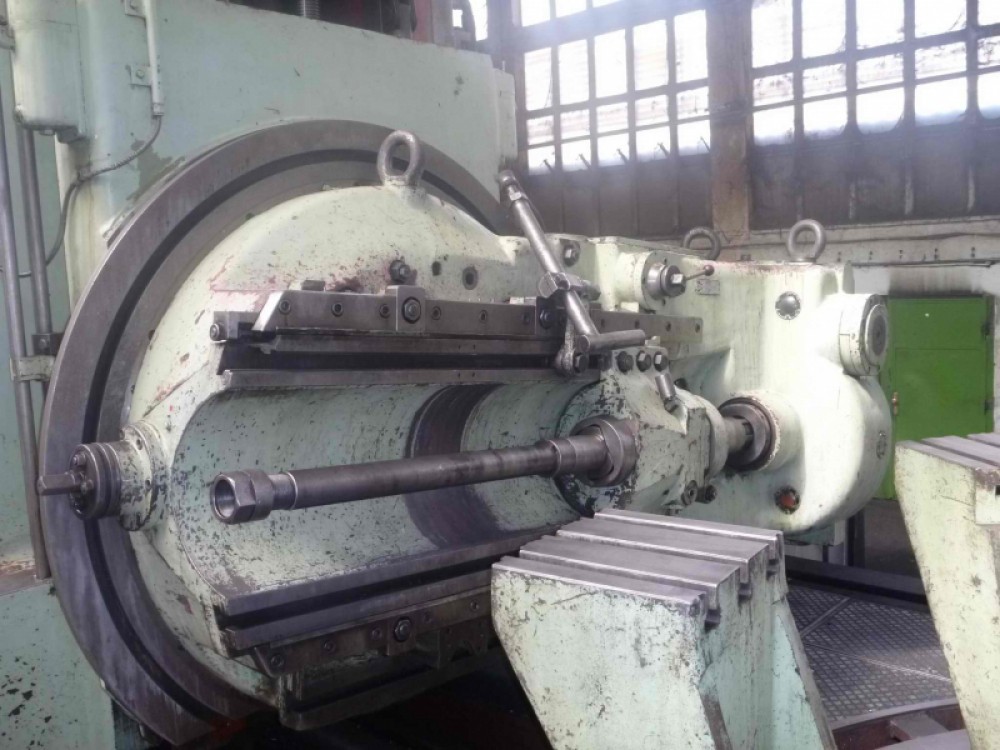

1; universal cutting head: max diameter 5000 mm, max gear width 1500 mm, max modul 40
2; INNER gear disc cutting head to universal gear cutting head: min-max gear diameters 2000-4000 mm, max gear width 300 mm, max modul 24, largest disc cutter diameter 400 mm and width 130 mm
3; tangential cutting head: min-max gear diameters 800-5000 mm, max modul 40, largest cutter diameter 400 mm, cutter tangential move 850 mm
4; finger cutting head for outer gears: min-max gear diameters 800-5000 mm, max gear width 1500 mm, max modul 50
5; finger cutting head for INNER gears: min-max gear diameters 1000-4000 mm, max gear width 350 mm, max modul 50
