#05279

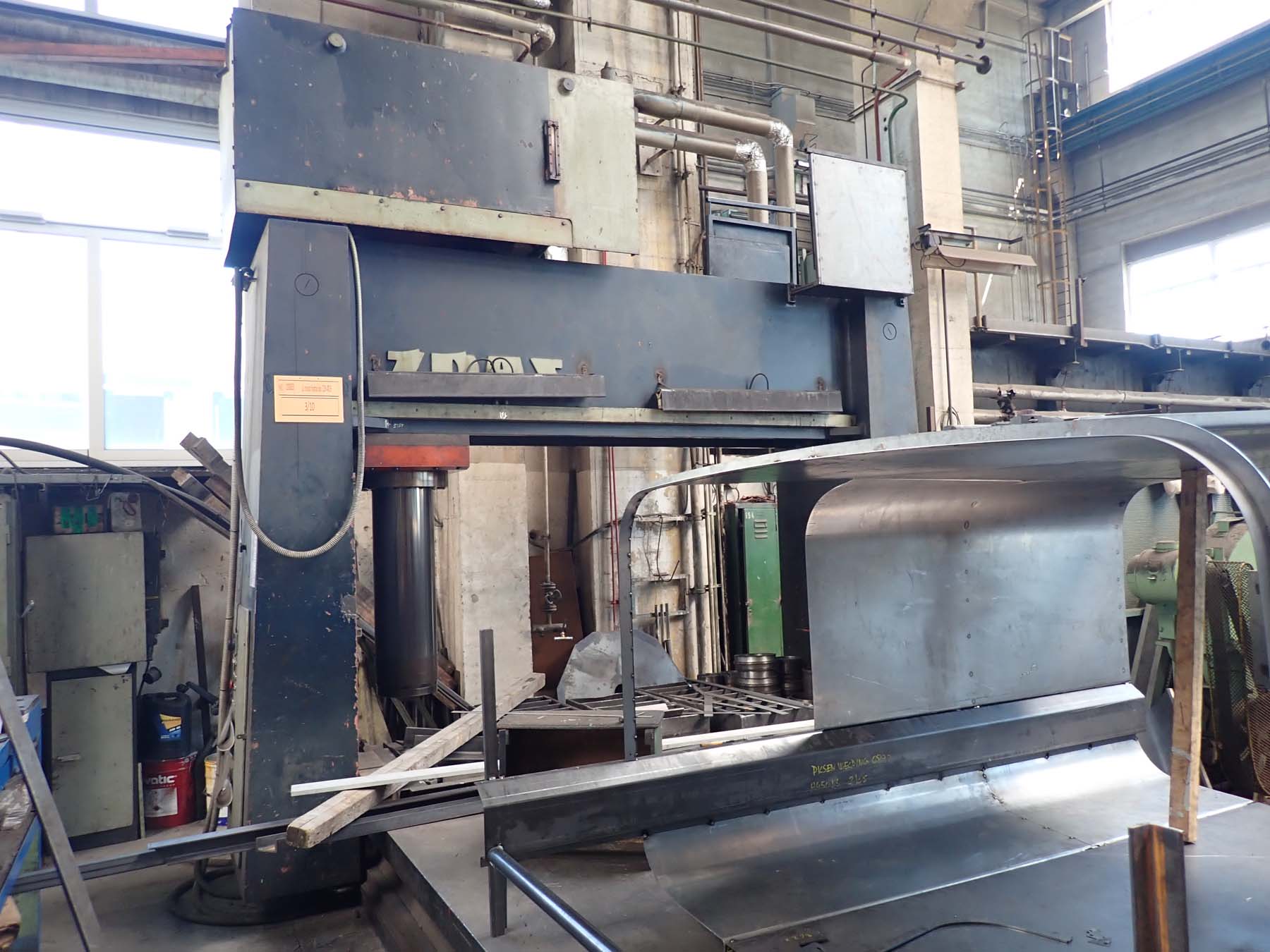

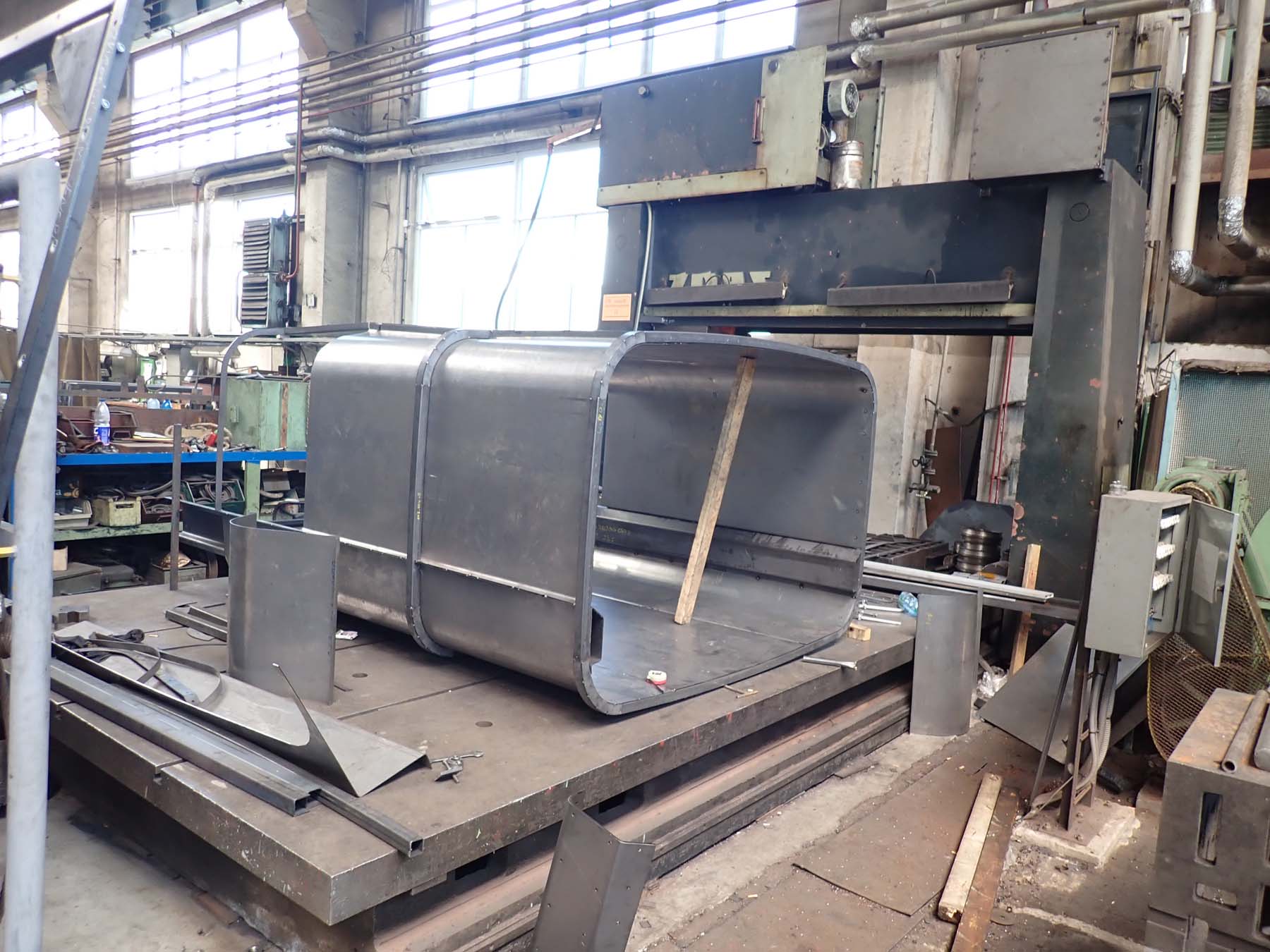

Straightening press ZDAS CDN 400B
Technical specification
| Rated deformation force | 400 t |
| Working area of table | 3100 x 6000 mm |
| Max. ram stroke | 1000 mm |
| Clearance between columns | 3100 mm |
| Output of main motor | 15 kW |
| Height of the machine | 4170 mm |
| Widht of the machine | 4150 mm |
| Lenght of the machine | 6000 mm |
| Weight of the machine | 44190 kg |
