Technical specifications

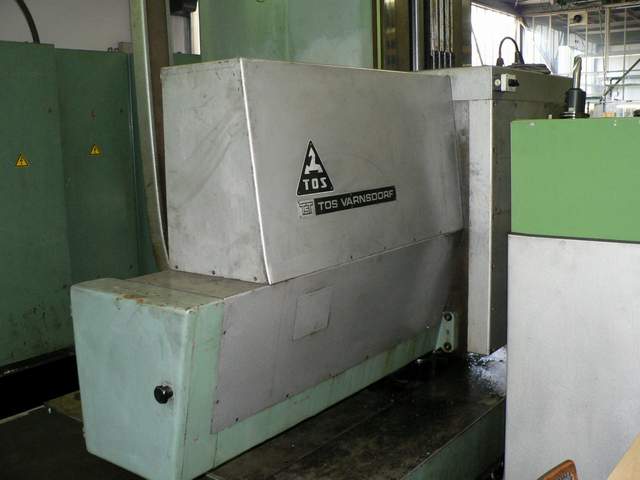

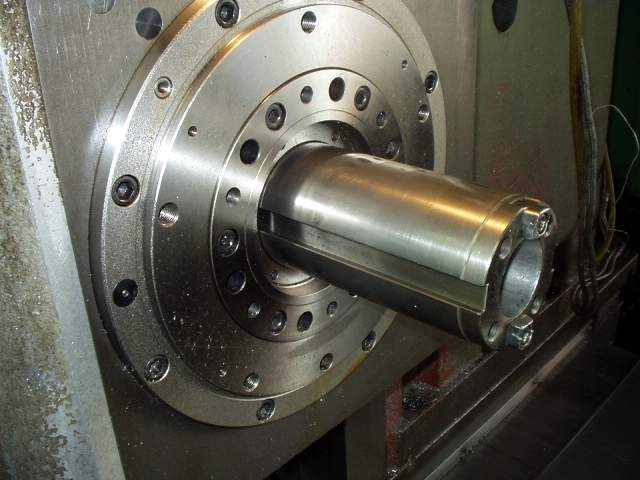

Workspindle dia

mm

130

Spindle taper

ISO 50

Spindle speed range

RPM

800

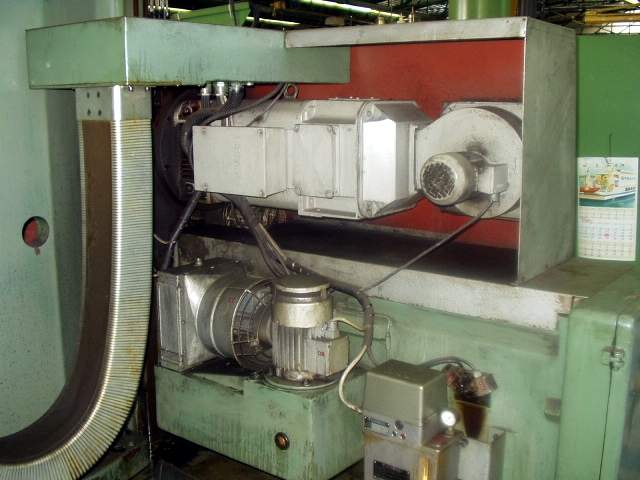

Main motor power

kW

37

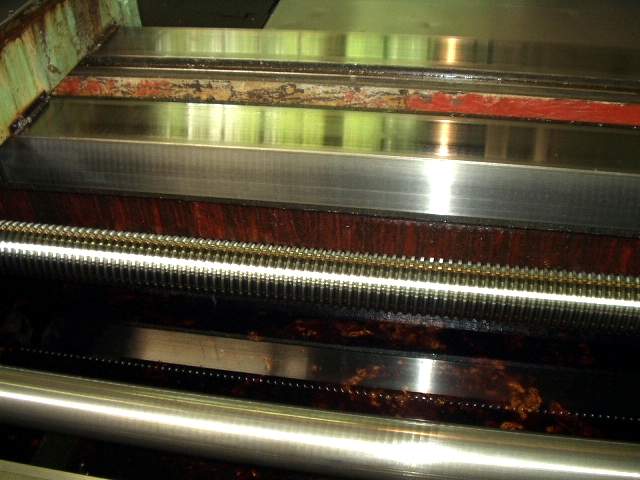

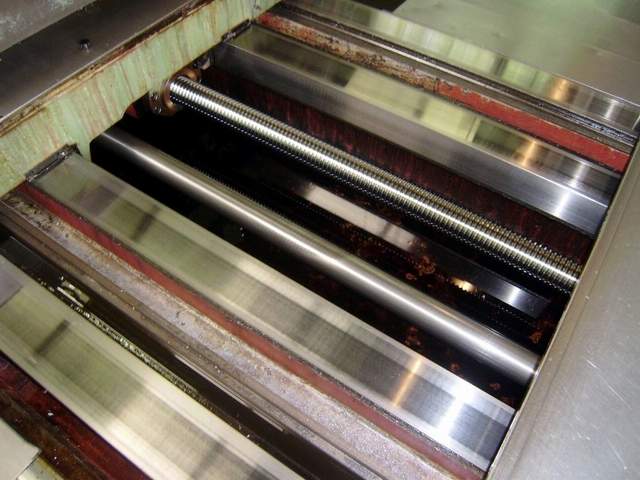

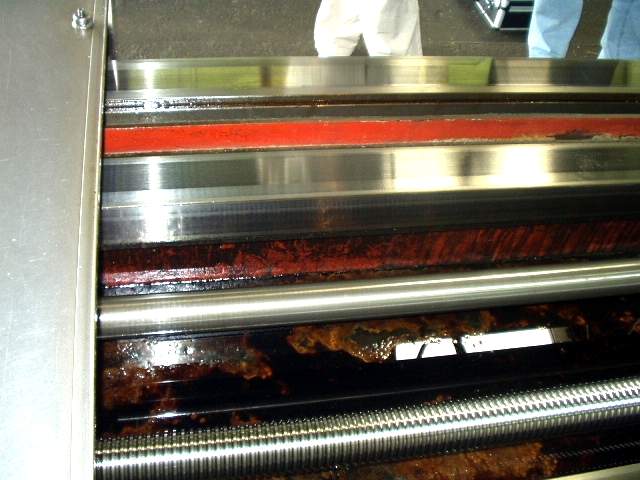

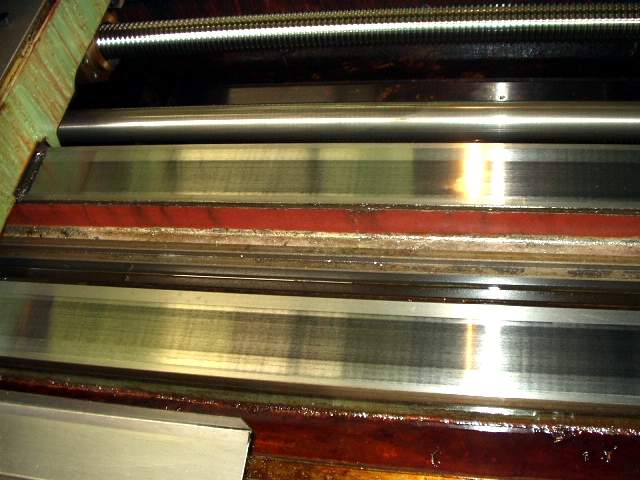

Table cross travel X

mm

3,500

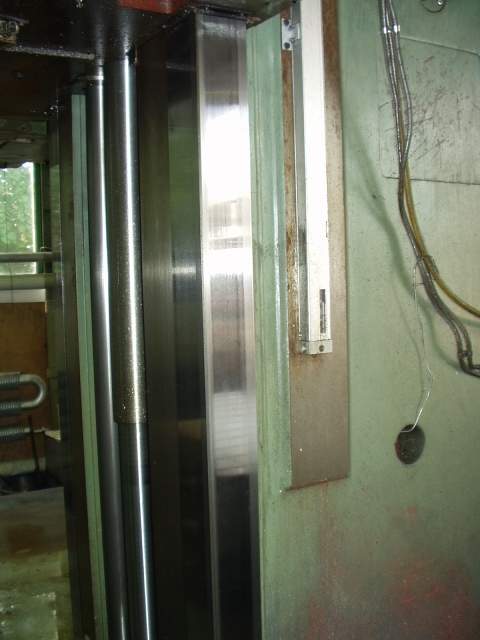

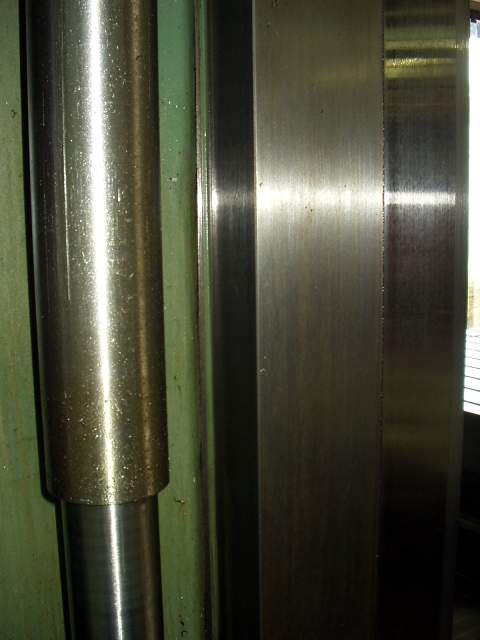

Headstock vertical travel Y

mm

2,000

Column longitudinal travel Z

mm

800

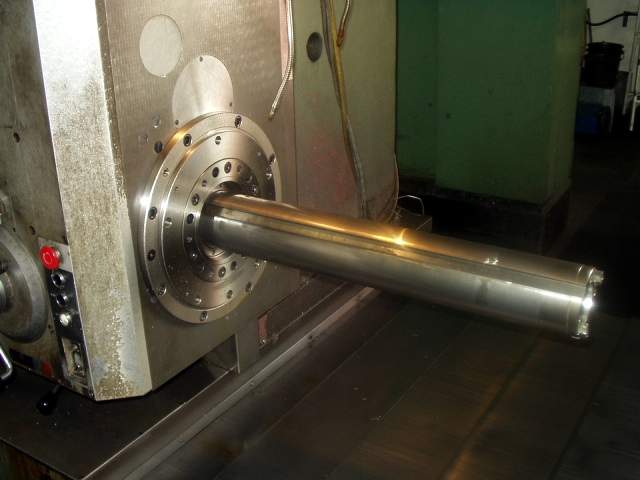

Spindle stroke W

mm

1,250

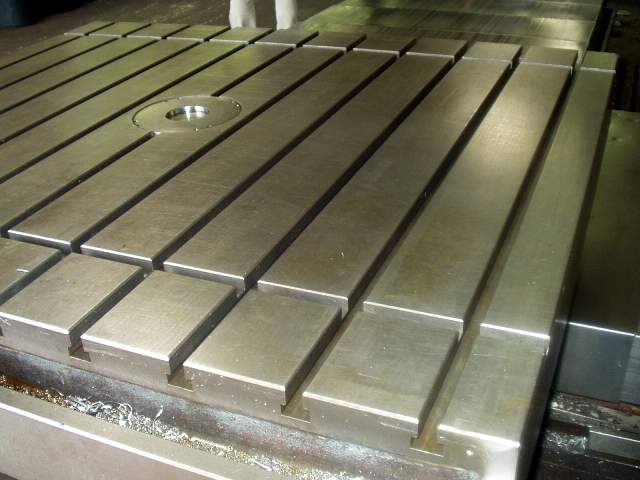

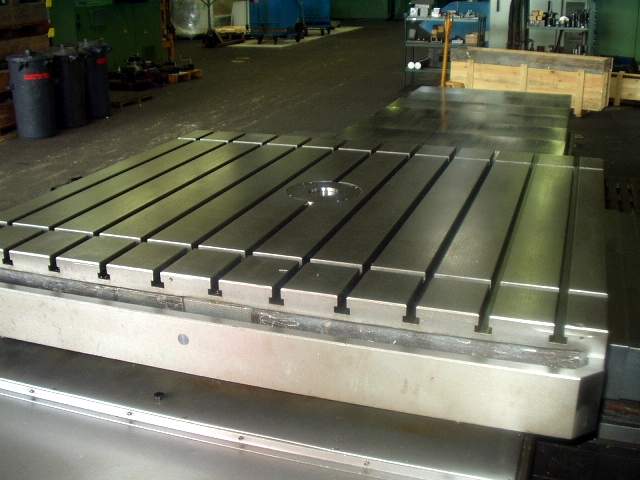

Table clamping surface

mm

1,800 x 1,800

Table load

Kg

12,000

Feeds X, Y, Z, W

mm.min^-1

1 – 2,000

Rapid traverse for X, Y, Z, W

mm.min^-1

4,000

Table rotation rapid traverse

mm

2 (1.5)

Total power consumption

kVA

82

Machine weight

kg

36,000
